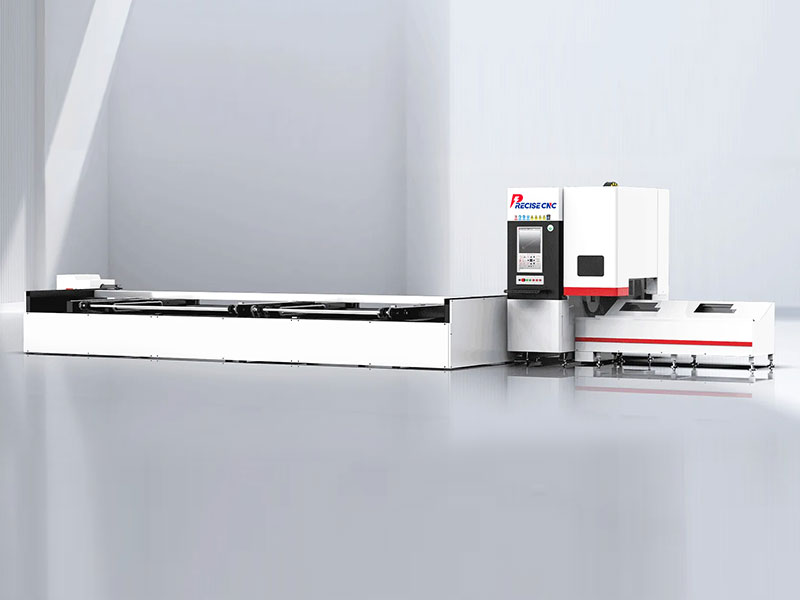

Top Selling Laser Tube Cutting Machine
Top Selling Laser Tube Cutting Machine

Product Name: Top Selling Laser Tube Cutting Machine

Model: PR-DB6012,PR-D6018,PR-D6023

Laser Power: 0.04~0.24kw

Dimensions (in): 425.00x93.50x86.61

Application: Kitchenware Manufacturing,Agriculture Machinery,Furniture Manufacturing,Architecture Industry,Automotive Manufacturing,Aerospace Industry,Shipbuilding Industry,Railway Facilities,Petroleum Industry,Sports Equipment

Inquire
Product Specification
Model No.PR-DB6012PR-D6018PR-D6023
Pipe Diameter (in)Φ口0.31 -4.72Φ口0.39 -7.09Φ口0.39 -9.06
Cutting Tailing (in)≥2.56
Chuck Speed7.87 r/min4.72 r/min3.94 r/min
Cutting Length248.03
Max.Unloading Length236.22
Dimensions (in)425.00x93.50x86.61
Laser Power0.04~0.24kw
Tube typesRound tubes, square tubes, rectangular tubes, Channel steels, H beams, elliptical tubes and other various special shaped tubes.

Top Selling Laser Tube Cutting Machine Features and Advantages

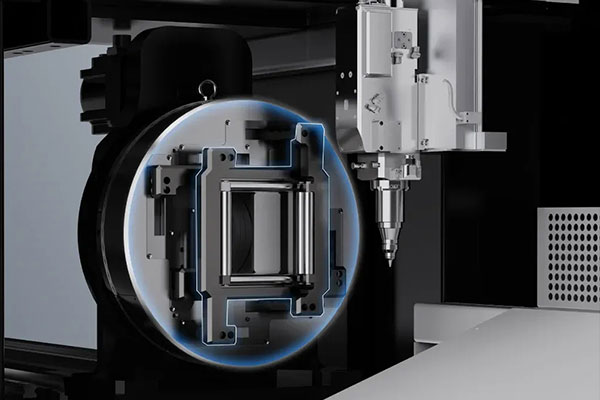

  • Fully enclosed design
  • Gantry structure

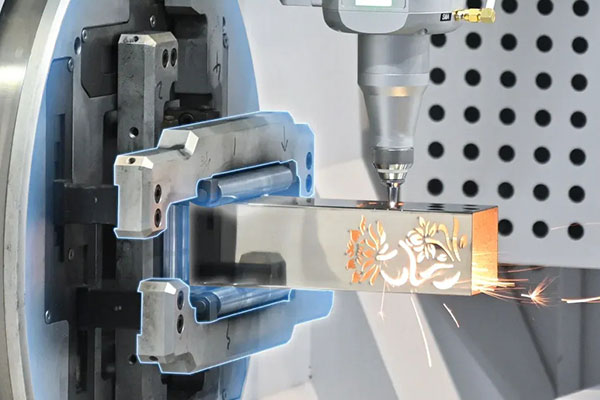

  • Double roller claws
  • Short tailing technology

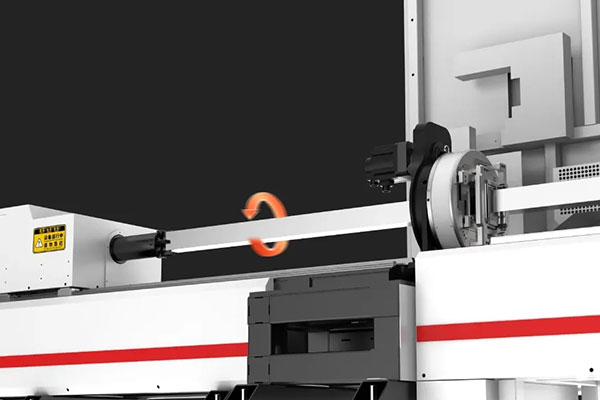

  • High dynamic performance

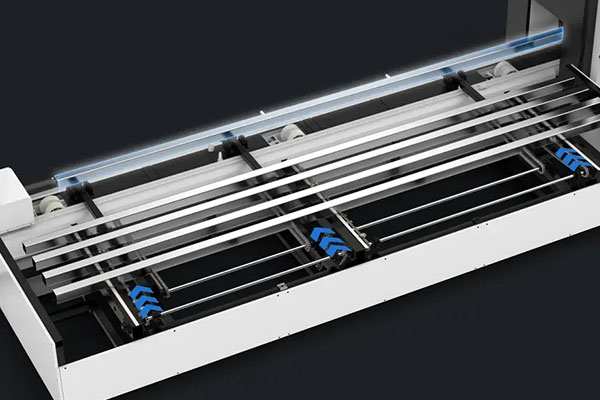

  • Light Type Loader

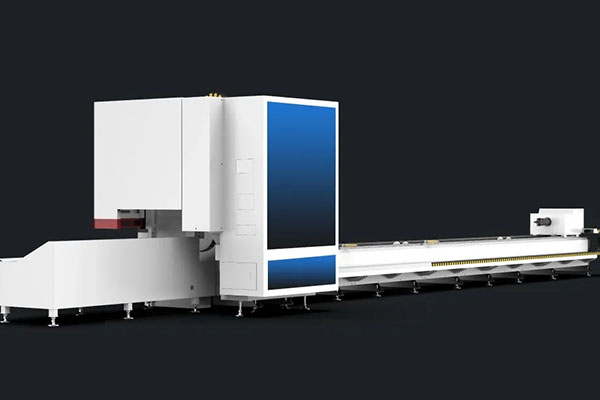

  • Integrated Design

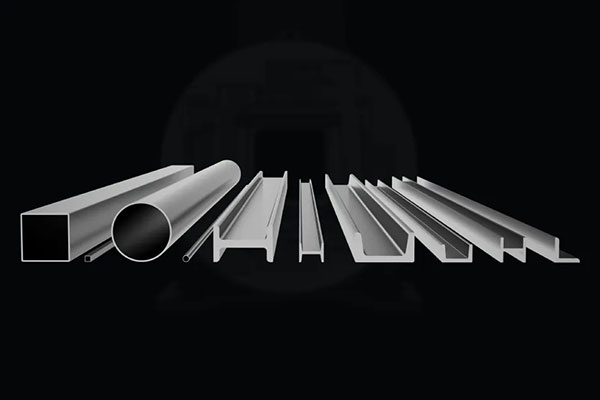

  • Support for various tube cutting

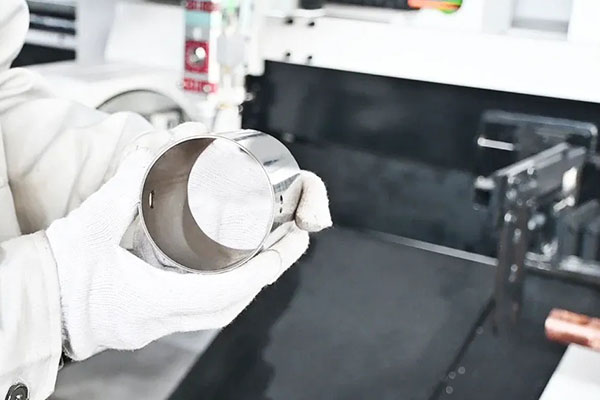

  • Inner Wall Slag Removal

Reasons to choose Acme D-series

Cutting Capability
The D-Series best-selling tube laser cutting machine can process all types of metal tubes, supporting lengths up to 6 meters, diameters from 8 to 250 mm, and a maximum weight of 300 kg.
Small and high speed chuck
A compact, high-speed chuck operates at 200r/min for fast cutting with small tail material technology, ensuring a high material utilization rate.
High cost-effective combination
Compact design saves floor space and ensures easy installation and operation;
Maintenance
2-year maintenance warranty

Top Selling Laser Tube Cutting Machine Samples

round-steel-pipe-tube-laser-cutting-machine

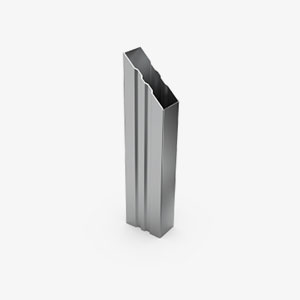

High-speed-laser-cutting-machine
high-speed-metal-steel-pipe-laser-cutting-machine
metal-pipe-laser-cutting-machine
iron-tube-round-pipe-laser-cutting-machine
metal-tube-laser-cutting-machine

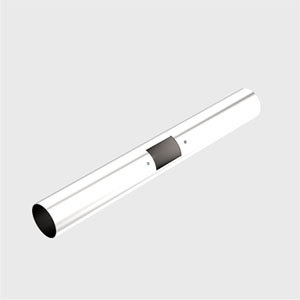

high-speed-steel-pipe-laser-cutting-machine
metal-tube-pipe-laser-cutting-machine

Top Selling Laser Tube Cutting Machine Applications

6-1
Aerospace Industry
6-2
Agriculture Machinery
6-3
Architecture Industry
6-4
Automotive Manufacturing
6-5
Petroleum Industry
6-6
Railway Facilities
Furniture-Manufacturing
Furniture Manufacturing
Kitchenware-Manufacturing
Kitchenware Manufacturing
Shipbuilding-Industry
Shipbuilding Industry

Top Selling Laser Tube Cutting Machine Testimonials

1
5
2
3
12

Top Selling Laser Tube Cutting Machine FAQs

Q: What's the working principle of fiber laser cutting machine?

A: The working principle of a fiber laser cutting machine is based on the use of a high-powered laser beam to melt, burn, or vaporize the material being cut. Here’s a breakdown of the process:

1.Laser Generation: The machine generates a laser beam using a fiber optic laser source. The laser source typically uses a fiber laser (such as YAG or ytterbium-doped fiber) that is pumped with light from diodes. The laser beam is then transmitted through the fiber optic cable.

2.Beam Focusing: The laser beam is directed and focused onto the material using a set of mirrors and a focusing lens. The focused beam has very high energy density and is able to concentrate on a small spot on the material’s surface.

3.Material Interaction: When the laser beam hits the material, it rapidly heats up the surface, causing the material to melt, burn, or vaporize. The cutting area is typically assisted by auxiliary gases (like nitrogen, oxygen, or compressed air), which help blow away the molten material and improve the cut quality.

4.Cutting Process: As the laser beam moves across the material, the heat melts or vaporizes the material in the path of the beam. The cutting head is typically controlled by a CNC system, which precisely guides the laser beam to cut along the desired path.

5.Cooling: During the cutting process, the material around the laser-cut area cools and solidifies quickly, allowing for clean, precise cuts with minimal distortion.

Fiber laser cutting machines are favored for their high cutting precision, speed, and efficiency, particularly when cutting metals such as stainless steel, aluminum, and carbon steel. The fiber laser’s ability to focus energy tightly on the cutting area results in high-quality, narrow kerf widths, and minimal heat-affected zones (HAZ).

Q: How do auxiliary gases such as oxygen and nitrogen enhance the laser cutting process?

Q: What materials can be cut by fiber laser metal cutting machine?

Q: What is the maximum thickness of metal that a fiber laser can cut?

Q: Can laser metal cutting machines cut through rusty iron plates directly?

Q: What is the expected lifespan of a laser metal cutting machine, and what warranty is provided?

Q: What happens if there is a sudden power outage during processing, and how can laser processing continue?

Q: What are the wear parts of a laser metal cutting machine?
