Product Name: JPT Mopa M8 100W Fiber Laser Glass Drilling Cutting Machine
Model: MLDM8
Laser Power: 100W
Application: Smart mirror industry,Smart home appliances,3C industry ,Optical and medical components
Inquire
General introduction
This fiber laser marking machine is designed for flexibility and mobility — compact,water cooled, and easy to move. It delivers excellent beam quality, high reliability, and requires no consumables or regular maintenance, ensuring long-term, worry-free operation.
Powered by the advanced JPT MOPA M8 laser source, it features one of the most reliable and modern designs in the industry. With a small footprint and low power consumption, it eliminates the need for high-voltage components or bulky water-cooling systems.
The system offers near-ideal beam performance and integrates a USB interface, precise output control, and an advanced optical scanning system. It supports high-speed, high-repetition marking with no distortion — delivering clean, accurate results every time.
Portable, Powerful, and Built to Last
Main Feature

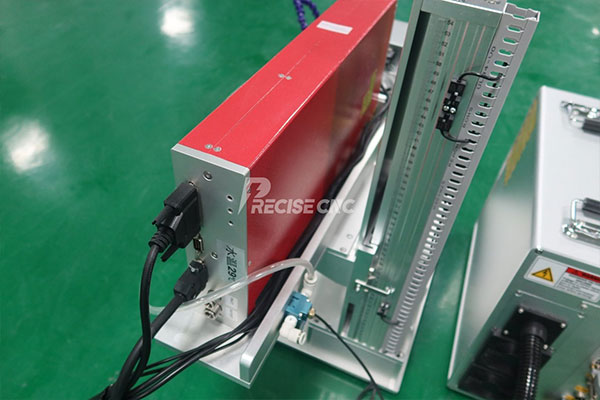

Reliable Laser Output, Even on Reflective Materials
The fiber laser generator features a highly integrated design with excellent beam quality and uniform power density. With stable output and an optical isolator, it effectively resists back-reflection...

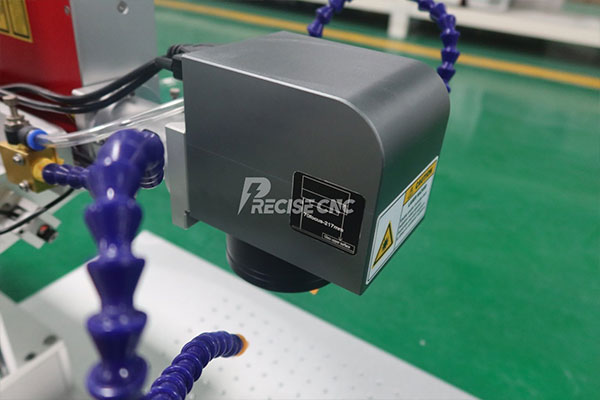

Precision at High Speed
Equipped with an advanced digital high-speed galvanometer scanner, it ensures fast marking without deviation. Compact in size and stable in performance, its quality meets international standards.
Modular & Flexible for Larger or Complex Surfaces
Designed with a modular structure separating the laser source from the lifter, it offers flexibility for marking larger areas or irregular surfaces. Built-in air cooling keeps the unit compact and easy to install.
Smart Control with Embedded System
Using an embedded operating system, the interface is user-friendly, the control system is powerful, and the overall performance leads the domestic market. It supports a wide range of industrial applications with ease.
Machine Parameters
| Model number | MLDM8 |
| Wave length of laser source | 1064nm |
| Laser repetition frequency | 20kHz~100kHz |
| Laser power | 100W |
| Field lens | 60*60 mm |
| Glass laser drilling cutting size | 0.5- 30mm diameter0.1- 5mm thicknessIt is up to glass material. |
| Laser sources | Fiber module |
| Laser Head | Scanning head |
| The minimum focus facula diameter | 20μm |
| Repeated accuracy | 0.0025mm |

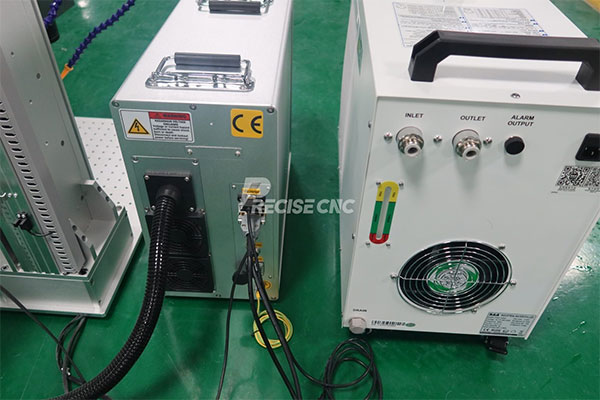

| Cooling ways | Water Cooling |
| Power supply | 220V/ 50Hz/2kVA |
| Support format | PLT, BMP, DXF, JPG, TIF, AI etc |
| Package | Standard Crate for export |
| Package Size and Gross Weight | 93*87*89cm 109.5KG |
Main Configurations
JPT Mopa M8 100W Fiber Laser Glass Drilling Cutting Machine Samples
JPT Mopa M8 100W Fiber Laser Glass Drilling Cutting Machine Applications
JPT Mopa M8 100W Fiber Laser Glass Drilling Cutting Machine Testimonials
JPT Mopa M8 100W Fiber Laser Glass Drilling Cutting Machine FAQs
A: Compatible with various glass materials, including:
Float glass
Mirror glass
Ultra-clear (low-iron) glass
Electronic glass (e.g., touch panel cover glass)
Note: Not suitable for tempered or laminated glass.
