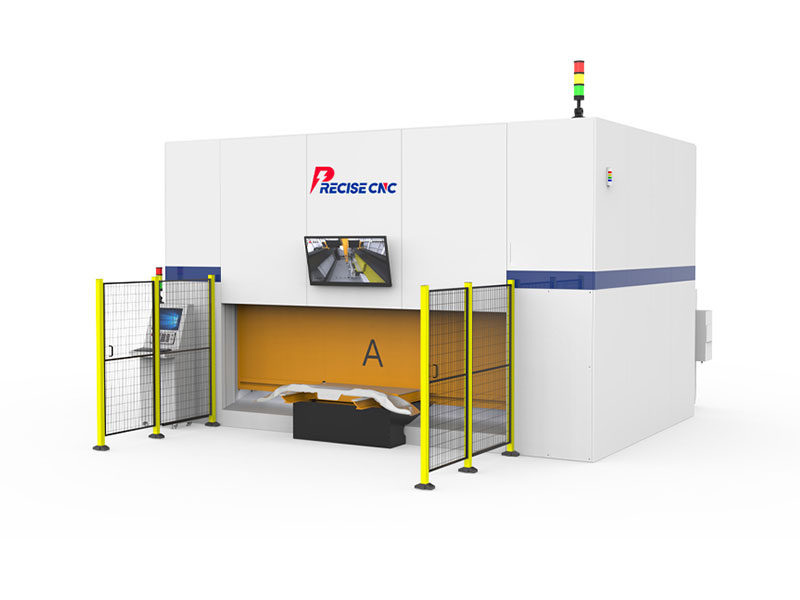

3D Five-Axis Laser Cutting Machine
3D Five-Axis Laser Cutting Machine

Product Name: 3D Five-Axis Laser Cutting Machine

Model: PR-3D5A250/500/1500/3000/4000/6000/12000

Laser Power: 250w-12000w

Application: High-end field, disruptive innovation,Suitable for automotive thermal forming parts, 3D metal forming parts, curved parts and special-shaped tubes.

Inquire
Product Specification
Model No.PR-3D5A250/500/1500/3000/4000/6000/12000
Laser TypeFiber Laser / CO2 RF Laser
Laser Power250w-12000w
Positioning accuracy±0.05mm
Repeated positioning accuracy±0.03mm
Maximum moving speed100m/min
Maximum accelerated1.0G
Weight12000-18000kg
Power Requirement380V 3PH 50/60HZ

3D Five-Axis Laser Cutting Machine Features and Advantages

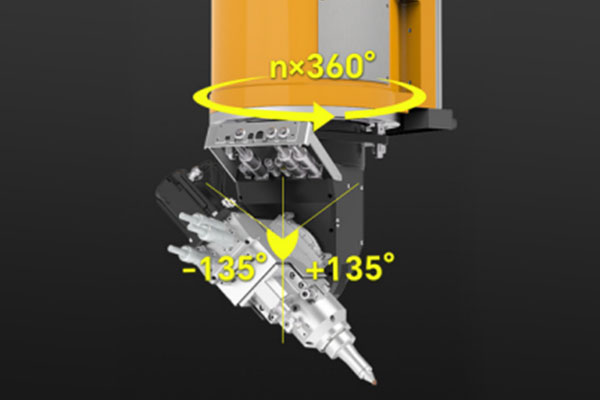

  • 5 axis cnc system

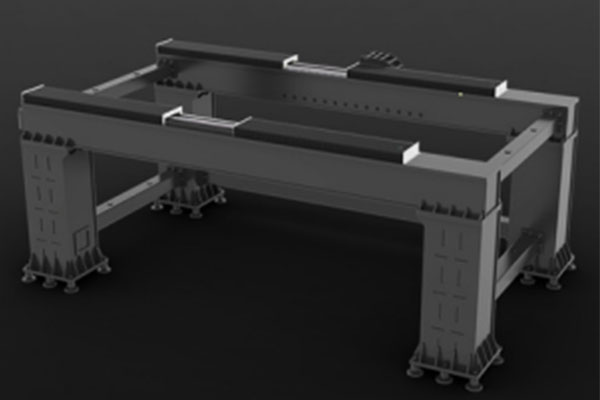

  • High grantry type structure design
  • Light weight, high-strength cast-aluminum crossbeam

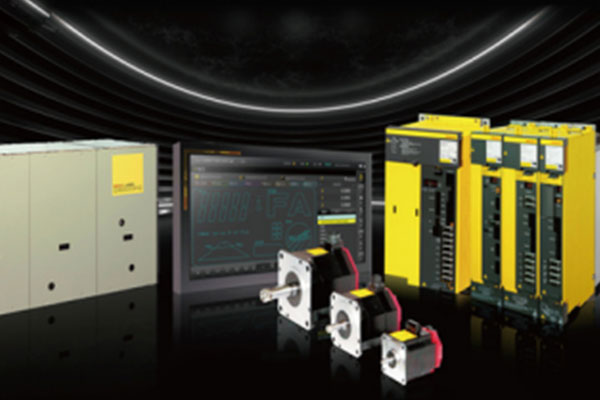

  • High precision flexible cutting

3D Five-Axis Laser Cutting Machine Samples

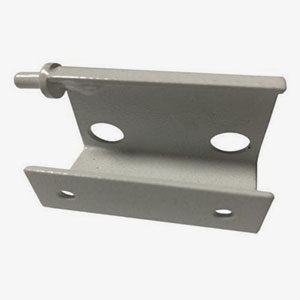

Automobile-three-dimensional-metal-parts
Automobile-exhaust-box

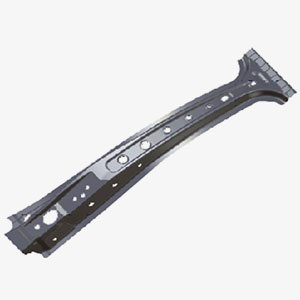

Automotive-sheet-metal-parts

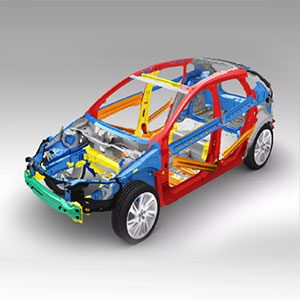

Automotive-sheet-metal-thermoforming-stamping-parts

3D Five-Axis Laser Cutting Machine Applications

6-1
Aerospace Industry
6-2
Agriculture Machinery
6-3
Architecture Industry
6-4
Automotive Manufacturing
6-5
Petroleum Industry
6-6
Railway Facilities
Shipbuilding-Industry
Shipbuilding Industry
Furniture-Manufacturing
Furniture Manufacturing
Kitchenware-Manufacturing
Kitchenware Manufacturing

3D Five-Axis Laser Cutting Machine Testimonials

1
5
2
3
12

3D Five-Axis Laser Cutting Machine FAQs

Q: What's the working principle of fiber laser cutting machine?

A: The working principle of a fiber laser cutting machine is based on the use of a high-powered laser beam to melt, burn, or vaporize the material being cut. Here’s a breakdown of the process:

1.Laser Generation: The machine generates a laser beam using a fiber optic laser source. The laser source typically uses a fiber laser (such as YAG or ytterbium-doped fiber) that is pumped with light from diodes. The laser beam is then transmitted through the fiber optic cable.

2.Beam Focusing: The laser beam is directed and focused onto the material using a set of mirrors and a focusing lens. The focused beam has very high energy density and is able to concentrate on a small spot on the material’s surface.

3.Material Interaction: When the laser beam hits the material, it rapidly heats up the surface, causing the material to melt, burn, or vaporize. The cutting area is typically assisted by auxiliary gases (like nitrogen, oxygen, or compressed air), which help blow away the molten material and improve the cut quality.

4.Cutting Process: As the laser beam moves across the material, the heat melts or vaporizes the material in the path of the beam. The cutting head is typically controlled by a CNC system, which precisely guides the laser beam to cut along the desired path.

5.Cooling: During the cutting process, the material around the laser-cut area cools and solidifies quickly, allowing for clean, precise cuts with minimal distortion.

Fiber laser cutting machines are favored for their high cutting precision, speed, and efficiency, particularly when cutting metals such as stainless steel, aluminum, and carbon steel. The fiber laser’s ability to focus energy tightly on the cutting area results in high-quality, narrow kerf widths, and minimal heat-affected zones (HAZ).

Q: How do auxiliary gases such as oxygen and nitrogen enhance the laser cutting process?

Q: What materials can be cut by fiber laser metal cutting machine?

Q: What is the maximum thickness of metal that a fiber laser can cut?

Q: Can laser metal cutting machines cut through rusty iron plates directly?

Q: What is the expected lifespan of a laser metal cutting machine, and what warranty is provided?

Q: What happens if there is a sudden power outage during processing, and how can laser processing continue?

Q: What are the wear parts of a laser metal cutting machine?
