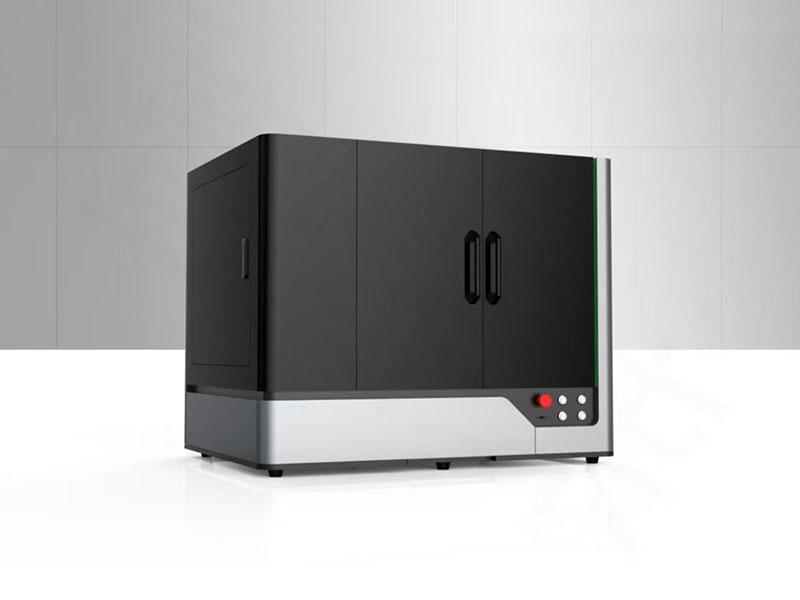

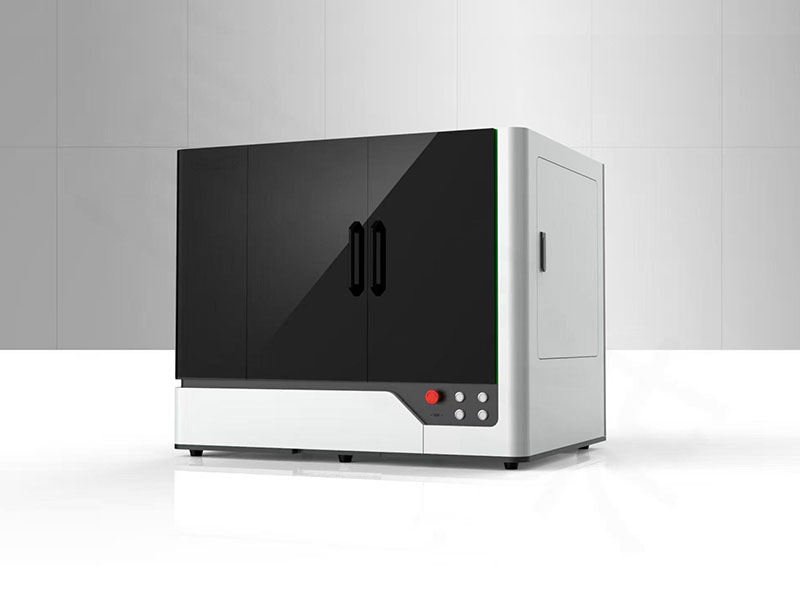

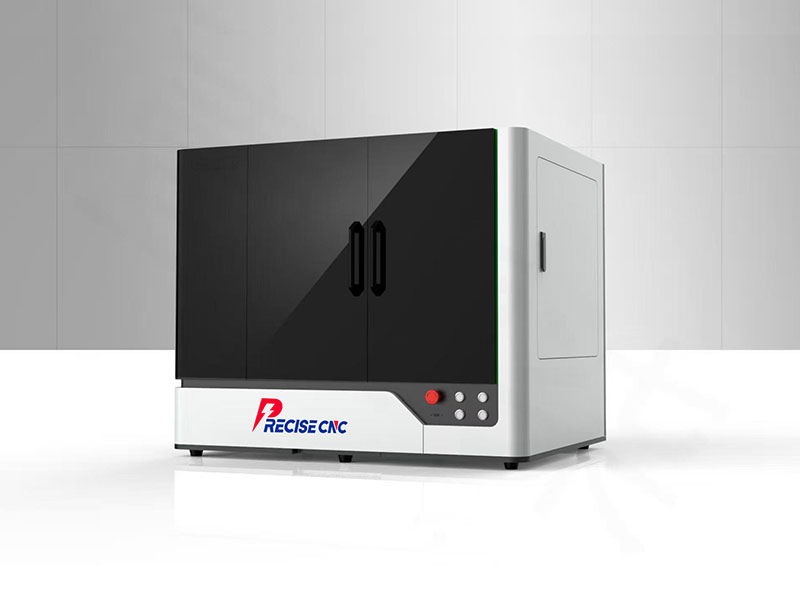

Precision Metal Fiber Laser Cutting Machine
Precision Metal Fiber Laser Cutting Machine
Precision Metal Fiber Laser Cutting Machine
Precision Metal Fiber Laser Cutting Machine
Precision Metal Fiber Laser Cutting Machine
Precision Metal Fiber Laser Cutting Machine
Precision Metal Fiber Laser Cutting Machine
Precision Metal Fiber Laser Cutting Machine
Precision Metal Fiber Laser Cutting Machine
Precision Metal Fiber Laser Cutting Machine
Precision Metal Fiber Laser Cutting Machine
Precision Metal Fiber Laser Cutting Machine

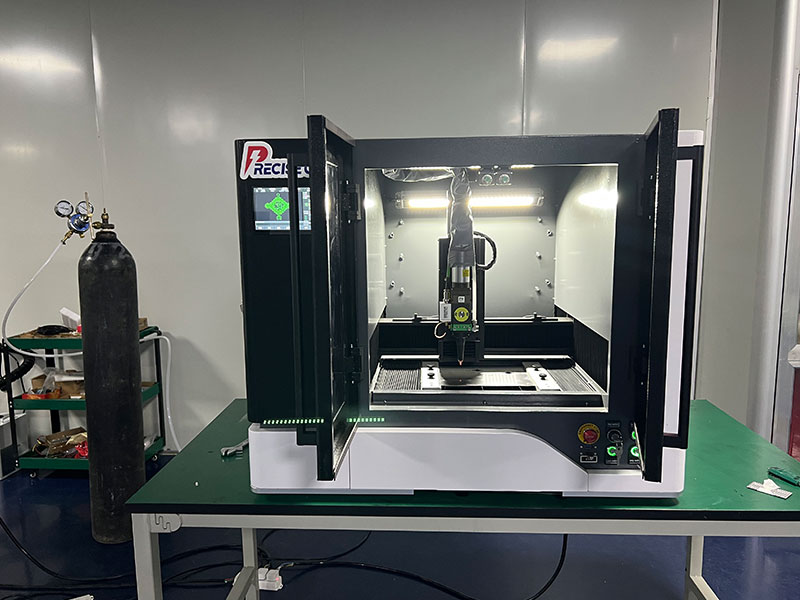

Product Name: Precision Metal Fiber Laser Cutting Machine

Model: PR-PC2030

Laser Power: 800w/ 1200w / 1500w

Working Range: 200*300mm ( can be customized )

Application: Kitchenware Manufacturing,Agriculture Machinery,Furniture Manufacturing,Architecture Industry,Automotive Manufacturing,Aerospace Industry,Shipbuilding Industry,Railway Facilities,Petroleum Industry,Sports Equipment

Inquire
Product Specification
Model No.PR-PC2030
Laser TypeFiber Laser
Laser Wavelength1070nm
Beam Quality<0.373mrad
Working Area200*300mm ( can be customized )
Z Axis Stroke100mm
Laser Power800w/ 1200w / 1500w
Power Consumption3500W 20A
Power Requirement220V 1PH 50/60HZ
Workbench Axial Positioning Accuracy0.03mm
Workbench Axial Repeat Positioning Accuracy0.02mm
Processing Precision (1mm Original box carbon steel)30mm roundness dimension difference ≤0.1mm30mm adjacent side dimension difference ≤0.04mm190mm adjacent side dimension difference ≤0.05mm190mm diagonal size difference ≤0.07mm
Max Linkage Speed 50m/min
Maximum Speed15m/min
Maximum Acceleration0.5G
Total Power Capacity/Current  800W laser source 8.8Kw 40A;  1200W laser source 11Kw 50A ;  1500W laser source 11Kw 50A
Laser Source Cooling TypeAir cooling
Workbench Maximum Load60KG
Cutting GasNitrogen gas
Cutting Ability≤3mm Silver, gold, aluminium ,brass, stainless steel,etc.
System Identification File FormatDXF, DWG, PLT, ENG ,G file
Dimension950*820*780mm
Packing Size1090*1090*950cm
Total Weight220 kgs
Main Configurations
ItemBrandBrand LocationSpecification
Laser SourceMax/JPTShenzhen China800w/ 1200w / 1500w
Laser Cutting SystemEmpower bus systemShanghai, China
Laser Cutting HeadRaytoolsShanghai, ChinaBT200B
Lathe BedIntegrated weldingJinan, ChinaMore than kgs
Cutting Gas Path DeviceNNTJapan
AC Servomotor LeadshineShenzhen, China0.40kw 1.27N·m 300r/min
Exhaust FanConysonShenzhen, China
RelayYIJIAChina
ScrewTBITaiwan, China
Low Voltage Electrical AppliancesHoneywellUSA
Guide RailHIWIN Taiwan China
Wifi Wireless Remote ControlCypcutShanghai, China
Laser Cutting Technology DatabaseCypcutShanghai, China
Cutting Abnormal AlarmYES
Laser Abnormal AlarmYES
Auxiliary gas low pressure alarm  YES
Electrical componentSchneiderGermanyIndustrial grade

Precision Metal Fiber Laser Cutting Machine Features and Advantages

  • MFSC-1500w laser sourc

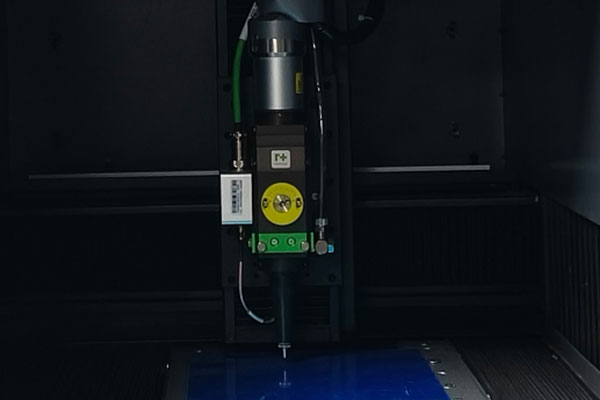

  • BT200B Raytools Laser cutting head

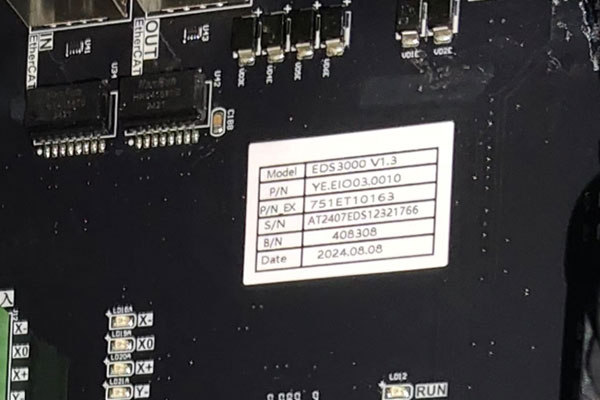

  • Raytools EDS 3000 laser cutting system

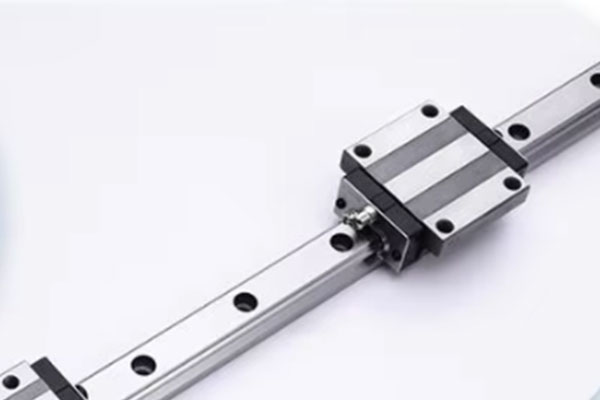

  • HIWIN guide rail

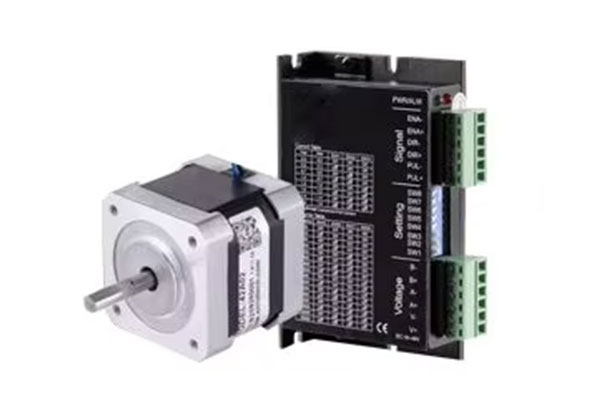

  • Leadshine servomotors driving system

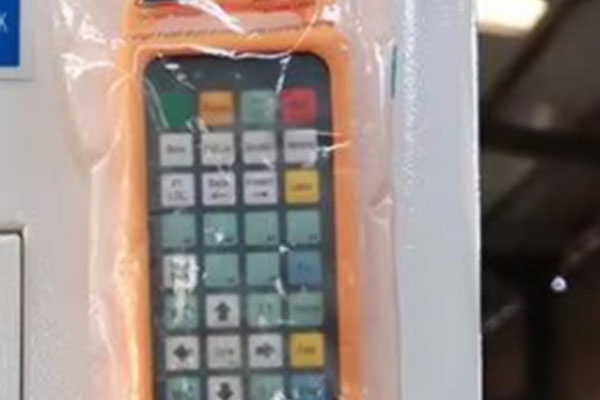

  • Wireless remote control handle

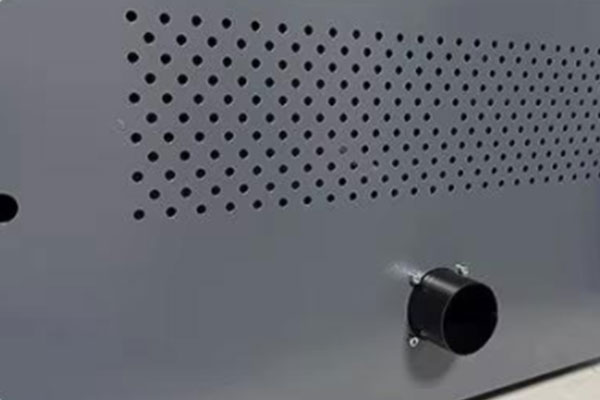

  • Smoke exhaust hole

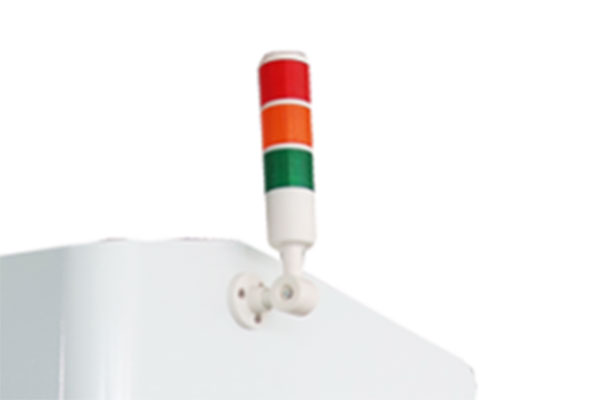

  • LED alarm lamp

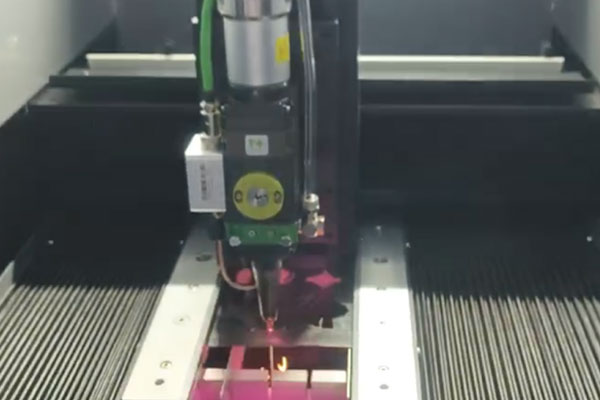

  • Dust cover

Precision Metal Fiber Laser Cutting Machine Samples

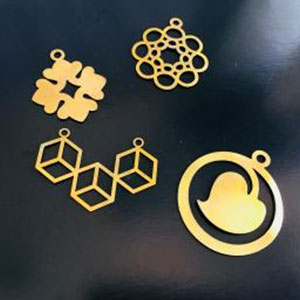

brass-shim-cutting-laser-machine

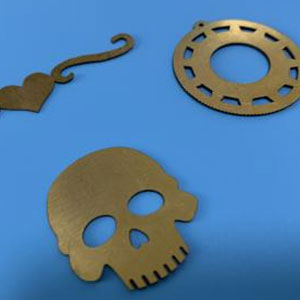

jewelry-laser-cutter-price
jewely-laser-cutting-machine-price

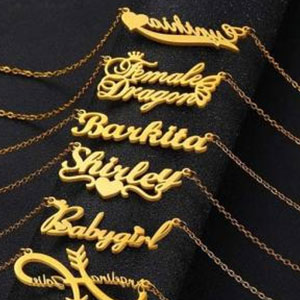

laser-cutter-for-jewelry-products

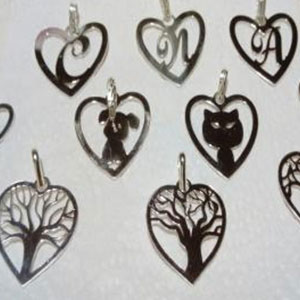

silver-jewely-laser-cutter

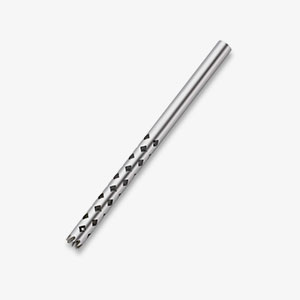

Shot-18_shadow_whbg

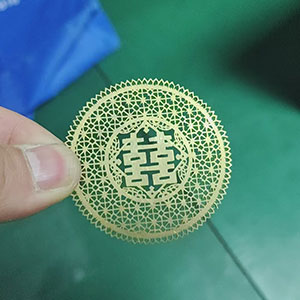

high-precision-laser-cutter-for-gold

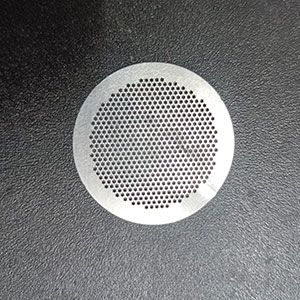

precise-laser-cutting-machine

Precision Metal Fiber Laser Cutting Machine Samples Applications

Medical-Devices
Medical Devices
Electronics
Electronics
Gold-And-Silver-Jewelry
Gold And Silver Jewelry

Precision Metal Fiber Laser Cutting Machine Testimonials

1
5
2
3
12

Precision Metal Fiber Laser Cutting Machine FAQs

Q: What's the working principle of fiber laser cutting machine?

A: The working principle of a fiber laser cutting machine is based on the use of a high-powered laser beam to melt, burn, or vaporize the material being cut. Here’s a breakdown of the process:

1.Laser Generation: The machine generates a laser beam using a fiber optic laser source. The laser source typically uses a fiber laser (such as YAG or ytterbium-doped fiber) that is pumped with light from diodes. The laser beam is then transmitted through the fiber optic cable.

2.Beam Focusing: The laser beam is directed and focused onto the material using a set of mirrors and a focusing lens. The focused beam has very high energy density and is able to concentrate on a small spot on the material’s surface.

3.Material Interaction: When the laser beam hits the material, it rapidly heats up the surface, causing the material to melt, burn, or vaporize. The cutting area is typically assisted by auxiliary gases (like nitrogen, oxygen, or compressed air), which help blow away the molten material and improve the cut quality.

4.Cutting Process: As the laser beam moves across the material, the heat melts or vaporizes the material in the path of the beam. The cutting head is typically controlled by a CNC system, which precisely guides the laser beam to cut along the desired path.

5.Cooling: During the cutting process, the material around the laser-cut area cools and solidifies quickly, allowing for clean, precise cuts with minimal distortion.

Fiber laser cutting machines are favored for their high cutting precision, speed, and efficiency, particularly when cutting metals such as stainless steel, aluminum, and carbon steel. The fiber laser’s ability to focus energy tightly on the cutting area results in high-quality, narrow kerf widths, and minimal heat-affected zones (HAZ).

Q: How do auxiliary gases such as oxygen and nitrogen enhance the laser cutting process?

Q: What materials can be cut by fiber laser metal cutting machine?

Q: What is the maximum thickness of metal that a fiber laser can cut?

Q: Can laser metal cutting machines cut through rusty iron plates directly?

Q: What is the expected lifespan of a laser metal cutting machine, and what warranty is provided?

Q: What happens if there is a sudden power outage during processing, and how can laser processing continue?

Q: What are the wear parts of a laser metal cutting machine?
