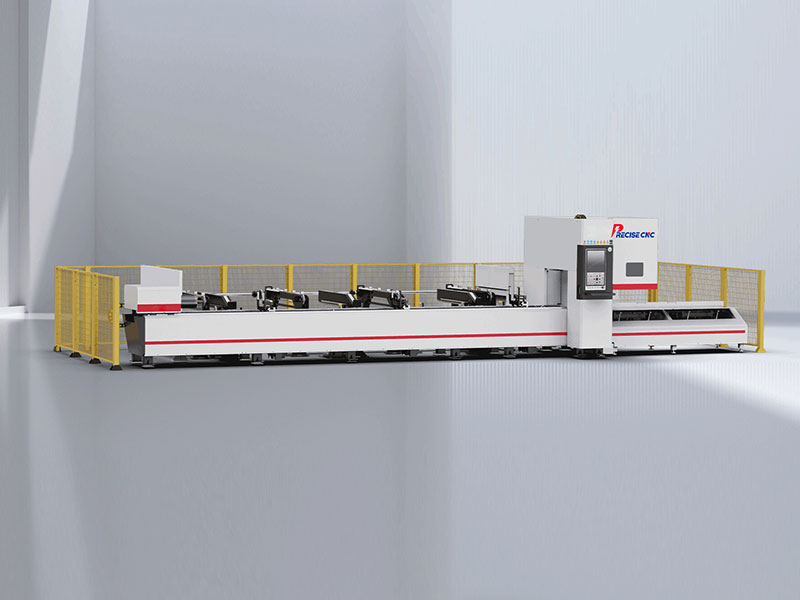

High Efficient Laser Tube Cutting Machine
High Efficient Laser Tube Cutting Machine

Product Name: High Efficient Laser Tube Cutting Machine

Model: PR-EC6012,PR-EH6018,PR-EA9026,PR-EKA12036

Laser Power: 1~30kw

Dimensions (in): 11632x2525x2432,11730x4150x2450,17606x4731x2591,20529x4700x2562

Application: Kitchenware Manufacturing,Agriculture Machinery,Furniture Manufacturing,Architecture Industry,Automotive Manufacturing,Aerospace Industry,Shipbuilding Industry,Railway Facilities,Petroleum Industry,Sports Equipment

Inquire
Product Specification
Model No.PR-EC6012PR-EH6018PR-EA9026PR-EKA12036
Pipe Diameter (in)Φ口8~120Φ口10 ~180Φ口15~250Φ口30~350
Cutting Tailing (in)≥65
Load-bearing Capacity120kgs240kgs300kgs1850kgs
Max.Loading Length63006300930012300
Max.Unloading Length60006000900012000
Dimensions (mm)11632x2525x243211730x4150x245017606x4731x259120529x4700x2562
Laser Power1~30kw
Pipe typesRound tubes, square tubes, rectangular tubes, H beams, -beams, channel steels, angle steels, and various special-shaped tubes.

High Efficient Laser Tube Cutting Machine Features and Advantages

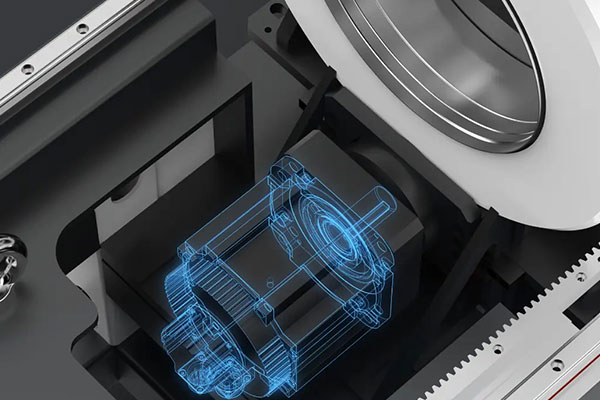

  • The square hole design

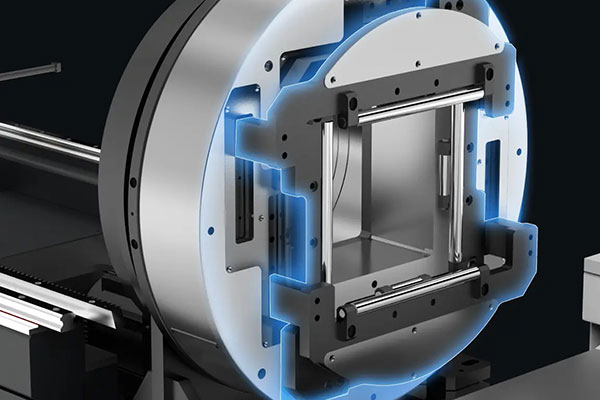

  • The light-type design

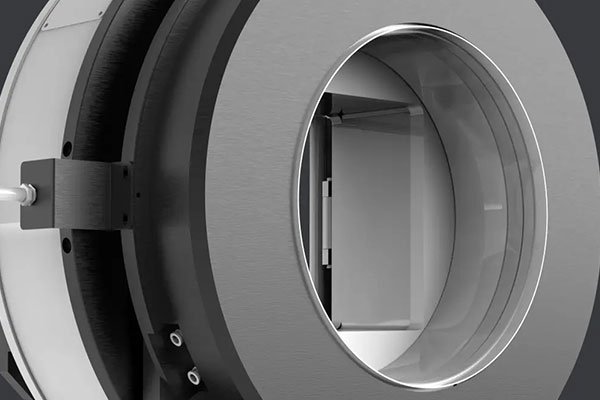

  • The full stroke design

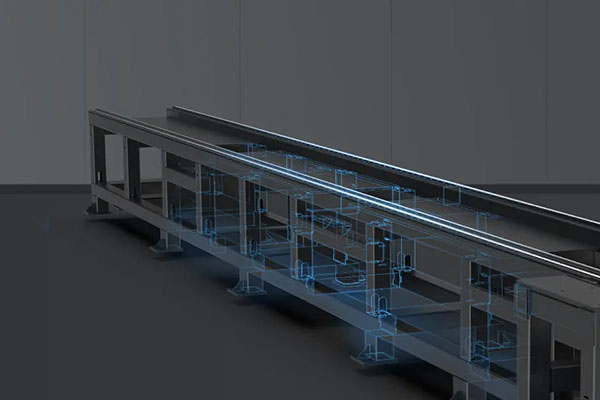

  • Mortise and tenon structure bed

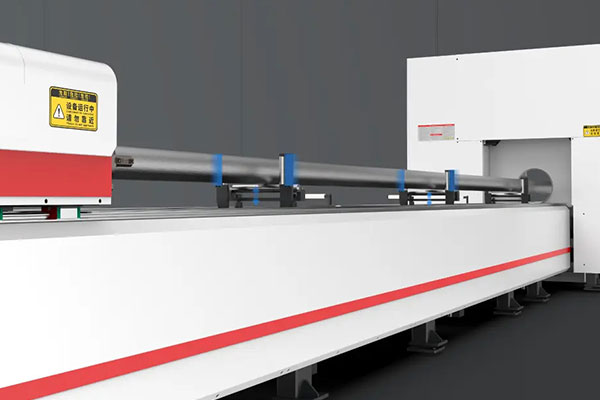

  • Segmented servo support

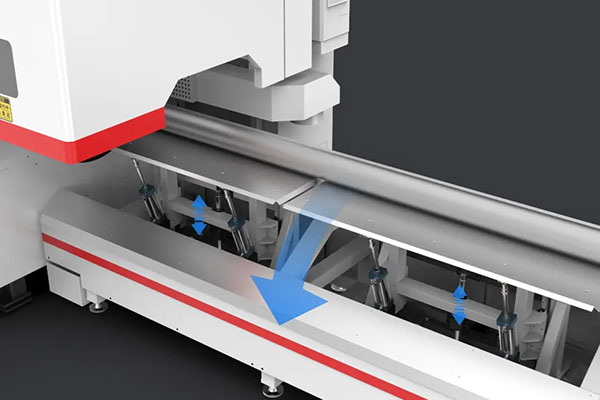

  • Automatic Unloading Device

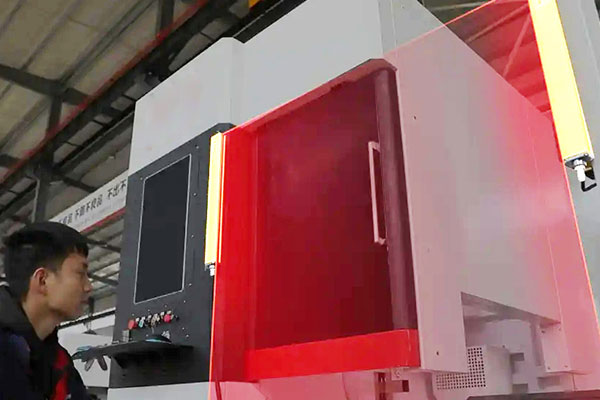

  • Safety Light Curtain

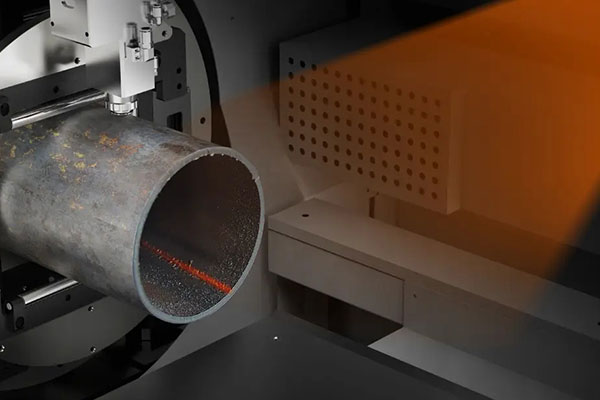

  • Weld seam recognition

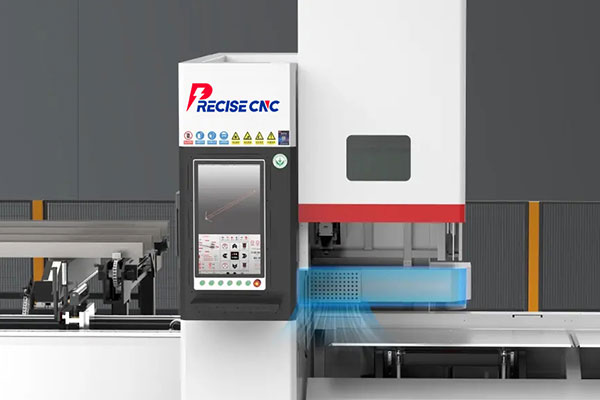

  • Dust Removal Design

Reasons to choose PRECISE CNC E-series

Cutting Capability
The E-Series high-efficiency laser tube cutting machine is capable of cutting all types of metal tubes, with lengths ranging from 6 to 12 meters, diameters between 8 and 350 mm, and weights up to 1.5 tons.
Chuck Technology
Features a square hole design for a high tube passing rate, enabling the widest working range and helping to reduce equipment investment.
High dynamic performance
Machine equipped with 120mm chucks, featuring a chuck movement speed of 110 m/min, rotational speed of 200 r/min, and acceleration of 1.5G.
More PRECISE self-developed technologies
Mortise and tenon structured bed, segmented servo support, and automatic unloading device—all designed to ensure cutting accuracy.
User-friendly design
weld identification, a safety light curtain, and a dust removal system, all of which effectively protect workers, machines, and workpieces.

High Efficient Laser Tube Cutting Machine Samples

round-steel-pipe-tube-laser-cutting-machine
High-speed-laser-cutting-machine
high-speed-metal-steel-pipe-laser-cutting-machine
metal-pipe-laser-cutting-machine
iron-tube-round-pipe-laser-cutting-machine
metal-tube-laser-cutting-machine
high-speed-steel-pipe-laser-cutting-machine
metal-tube-pipe-laser-cutting-machine

High Efficient Laser Tube Cutting Machine Applications

6-1
Aerospace Industry
6-2
Agriculture Machinery
6-3
Architecture Industry
6-4
Automotive Manufacturing
6-5
Petroleum Industry
6-6
Railway Facilities
Furniture-Manufacturing
Furniture Manufacturing
Kitchenware-Manufacturing
Kitchenware Manufacturing
Shipbuilding-Industry
Shipbuilding Industry

High Efficient Laser Tube Cutting Machine Testimonials

1
5
2
3
12

High Efficient Laser Tube Cutting Machine FAQs

Q: What's the working principle of fiber laser cutting machine?

A: The working principle of a fiber laser cutting machine is based on the use of a high-powered laser beam to melt, burn, or vaporize the material being cut. Here’s a breakdown of the process:

1.Laser Generation: The machine generates a laser beam using a fiber optic laser source. The laser source typically uses a fiber laser (such as YAG or ytterbium-doped fiber) that is pumped with light from diodes. The laser beam is then transmitted through the fiber optic cable.

2.Beam Focusing: The laser beam is directed and focused onto the material using a set of mirrors and a focusing lens. The focused beam has very high energy density and is able to concentrate on a small spot on the material’s surface.

3.Material Interaction: When the laser beam hits the material, it rapidly heats up the surface, causing the material to melt, burn, or vaporize. The cutting area is typically assisted by auxiliary gases (like nitrogen, oxygen, or compressed air), which help blow away the molten material and improve the cut quality.

4.Cutting Process: As the laser beam moves across the material, the heat melts or vaporizes the material in the path of the beam. The cutting head is typically controlled by a CNC system, which precisely guides the laser beam to cut along the desired path.

5.Cooling: During the cutting process, the material around the laser-cut area cools and solidifies quickly, allowing for clean, precise cuts with minimal distortion.

Fiber laser cutting machines are favored for their high cutting precision, speed, and efficiency, particularly when cutting metals such as stainless steel, aluminum, and carbon steel. The fiber laser’s ability to focus energy tightly on the cutting area results in high-quality, narrow kerf widths, and minimal heat-affected zones (HAZ).

Q: How do auxiliary gases such as oxygen and nitrogen enhance the laser cutting process?

Q: What materials can be cut by fiber laser metal cutting machine?

Q: What is the maximum thickness of metal that a fiber laser can cut?

Q: Can laser metal cutting machines cut through rusty iron plates directly?

Q: What is the expected lifespan of a laser metal cutting machine, and what warranty is provided?

Q: What happens if there is a sudden power outage during processing, and how can laser processing continue?

Q: What are the wear parts of a laser metal cutting machine?
