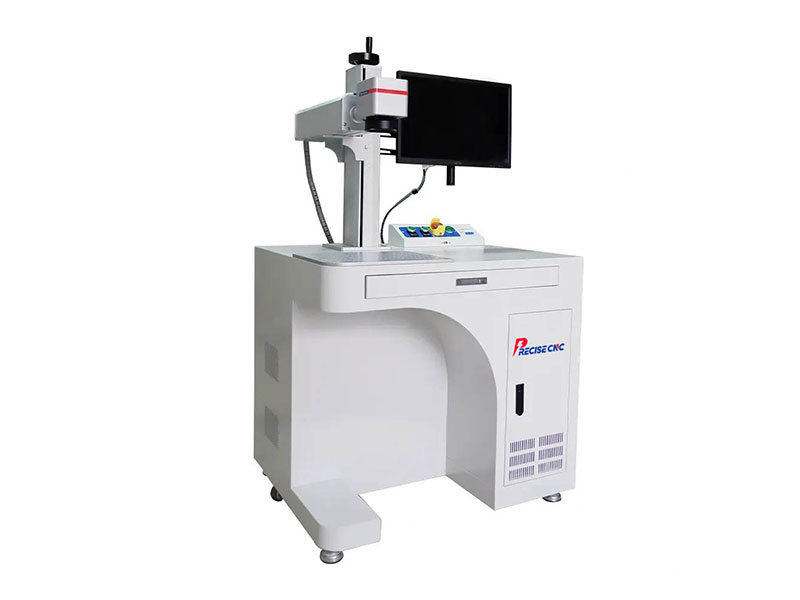

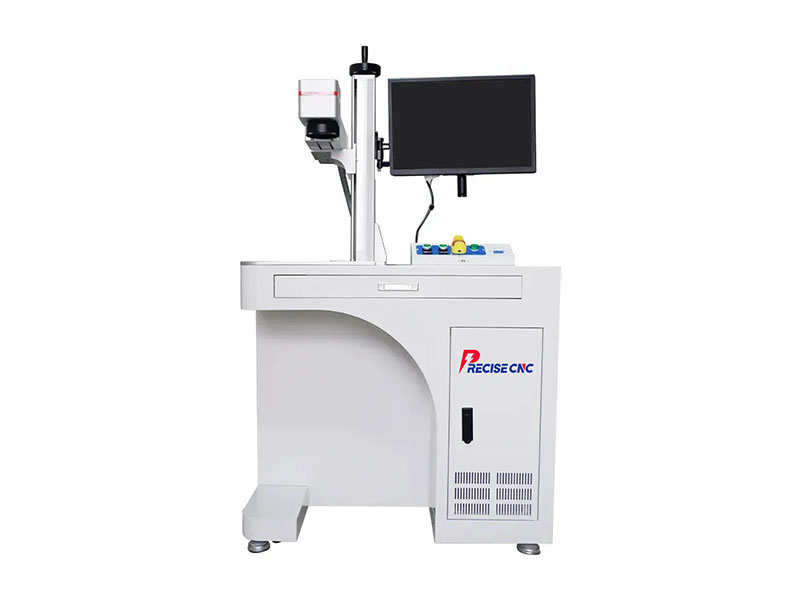

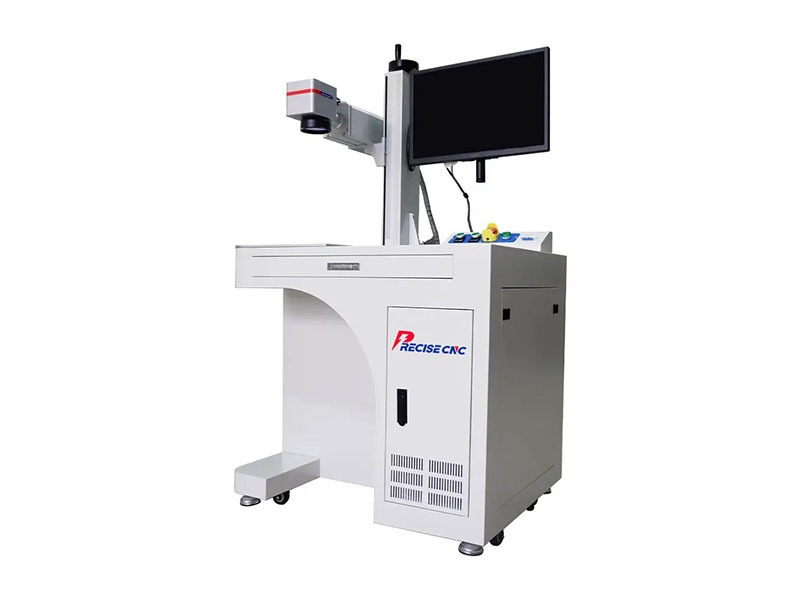

Product Name: 20w 30w 50w 100w 200w 300w Desktop Type Fiber Laser Marking Machine for Metal Marking
Model: PR-F20 PR-F30 PR-F50 PR-F60 PR-F80 PR-F100 PR-F200 PR-F300
Laser Power: 20W 30W 50W 60W 80W 100W 200W 300W
Application: Stainless steel, aluminum, alloy, brass, silver, gold, titanium, iron, PC, ABS, PVC, PC+ABS, leather, stone, ceramic and so on.
Inquire
General Introduction
Tired of cluttered workbenches and slow, inconsistent marking results?
PRECISE CNC’s desktop typefiber laser marking machine has high photoelectric conversion efficiency, fast marking speed, air-cooled design, compact structure, good output beam quality, high reliability, no consumables, maintenance-free, and long service life. Equipped with keyboard and mouse, which can be placed in the drawer to ensure the cleanliness of the workbench.
Adopting Raycus / Max / JPT/ IPG fiber laser, adopting the latest and most reliable international structure, small size, low power consumption, no high-voltage power supply, and no large water cooling system. Close to ideal beam, USB interface, output control, optical scanning system, high laser repetition frequency, fast speed, no distortion.
Our desktop laser marking machine can mark various metal materials, such as iron, copper, aluminum, gold, silver, etc., as well as non-metallic materials such as PC, ABS, PVC, PC+ABS, etc.
Main Feature

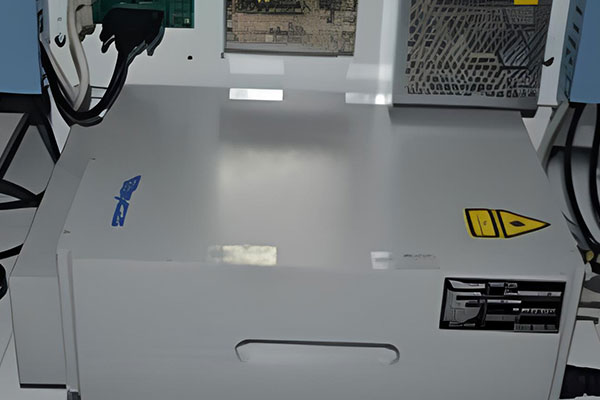

High-Quality Laser Source
Highly integrated fiber laser generator
Superior beam quality and uniform power density
Stable power output with strong anti-reflection capability
Effectively marks on high-reflective materials (e.g. aluminum, copper, gold, silver) without ghosting or virtual marking

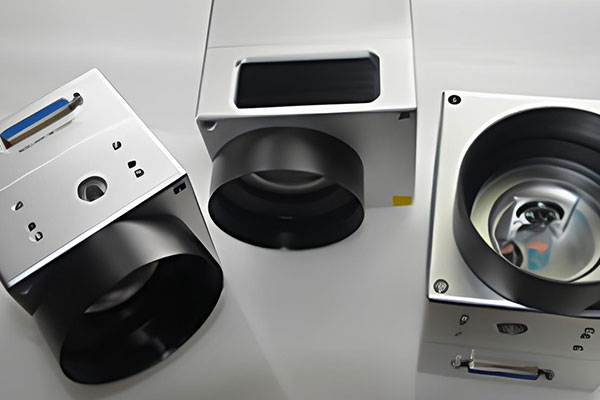

Advanced Galvanometer System
High-speed digital scanning galvanometer
Fast marking with high precision and excellent stability
Compact design with internationally advanced performance
Modular & Flexible Structure
Separate laser generator and lifting system
Enables marking on larger areas and complex surfaces
Air-cooled, compact size, easy installation
Powerful Control System
Embedded operating system with excellent interface
Leading performance among domestic brands
Supports a wide range of industrial applications
Efficient & Durable
High photoelectric conversion efficiency
No consumables, low maintenance
Reliable performance even in harsh environments
User-Friendly Design
Desktop-style with ergonomic console
Double red-light focus for accurate positioning
Easy to install and connect via USB
Stable marking process with consistent energy output
Superior Marking Results
Fine laser beams for detailed, high-precision marking
Customizable fixtures improve speed and efficiency for different product shapes
Optional Functions for Desktop Fiber Laser Marker
Motorized Up/Down Function
Equipped with an adjustable-speed motor
Includes Up and Down buttons for manual movement of the marking head

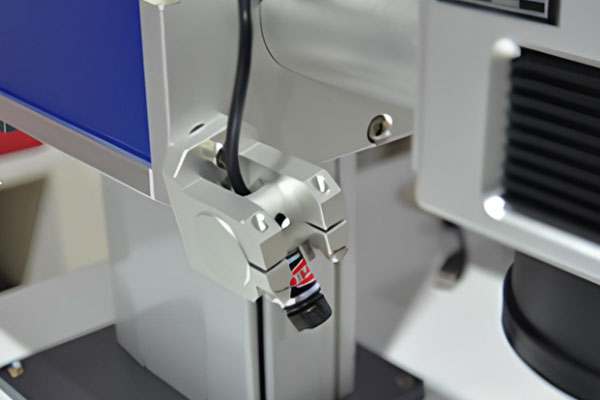

Features an extra red dot pointer to assist in focusing
How it works: Adjust the marking head using the buttons; when the two red dots align, the machine is at the correct focus position
Auto Focus Control via Software
Integrated with a stepper motor and Auto Focus button
Focus is adjusted automatically based on input thickness
How it works: Enter the workpiece thickness into the EZCAD software, and the machine head automatically moves to the correct focal point
Machine Parameters
| Machine Name | Desktop Fiber Laser Marking Machine |
| Model No. | PR-F20 PR-F30 PR-F50 PR-F60 PR-F80 PR-F100 PR-F200 PR-F300 |
| Laser Power | 20W 30W 50W 60W 80W 100W 200W 300W |
| Laser Wave Length | 1064nm |
| Laser Source | Raycus / Max / JPT/ IPG |
| System Software | EZCAD2 ( EZCAD2.5 EZCAD3 Optional ) |
| Support File Format | PLT, BMP, DXF, JPG, TIF, AI,etc. |
| Power Adjustment Range(%) | 0-100% |
| Galvo Head | SINO Brand |

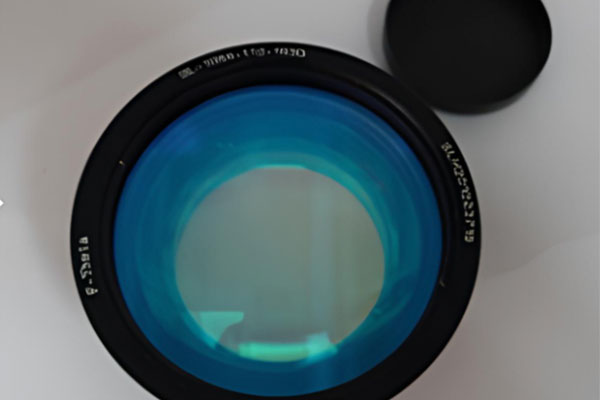

| F-theta Lens | Wavelength Brand |
| Minimum Focus Facula Diameter | 20μm |
| Marking Speed | ≤7000mm/s |
| Repeated Accuracy | 0.0025mm |
| Minimal Character | 0.01mm |
| Fiber Cable Length | 3m |
| Marking Area | 50*50mm 70*70mm 110*110 mm 150*150mm 175*175mm 200*200mm 250*250mm 300*300mm 450*450mm optional |
| Cooling Mode | Air Cooling |
| Overall Power Consumption | 220V/ 50Hz Around 460~2500w for different laser power |
| Application | Stainless steel, aluminum, alloy, brass, silver, gold, titanium, iron, PC, ABS, PVC, PC+ABS, leather, stone, ceramic and so on. |
| Net Size | 60*77.5*143cm |
| Package Size | 83*77*159cm Export Standard Plywood Case |
| Net Weight | 90kgs |
| Gross Weight | 150kgs |

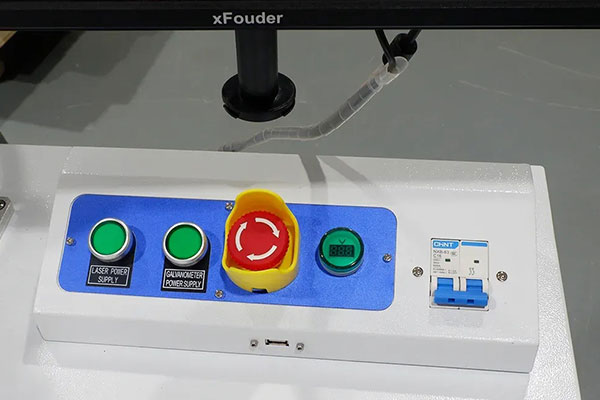

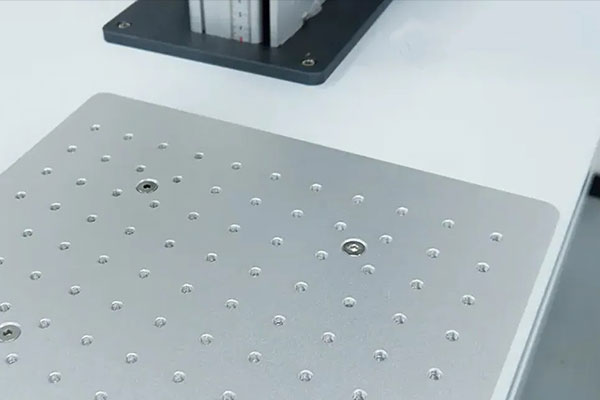

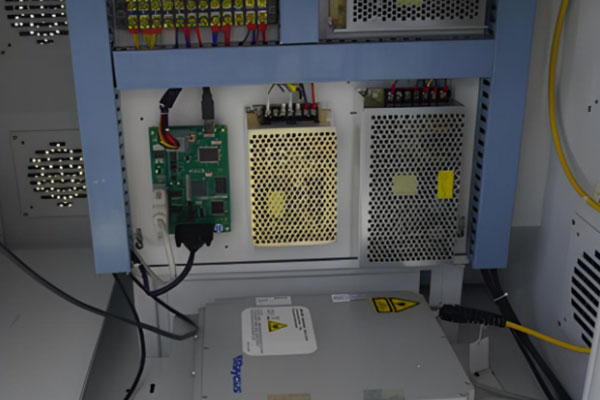

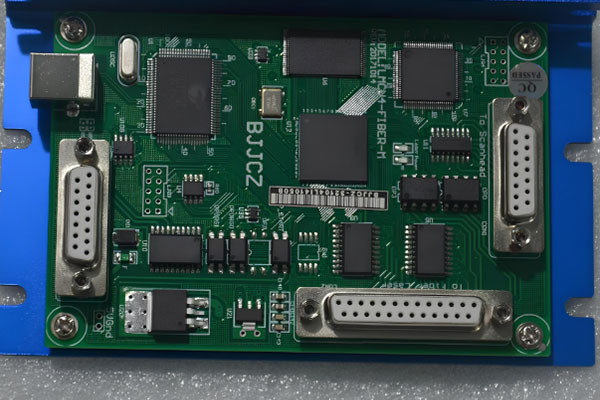

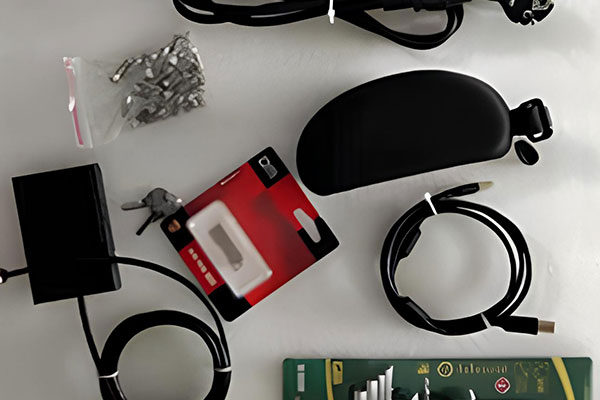

Main Configurations

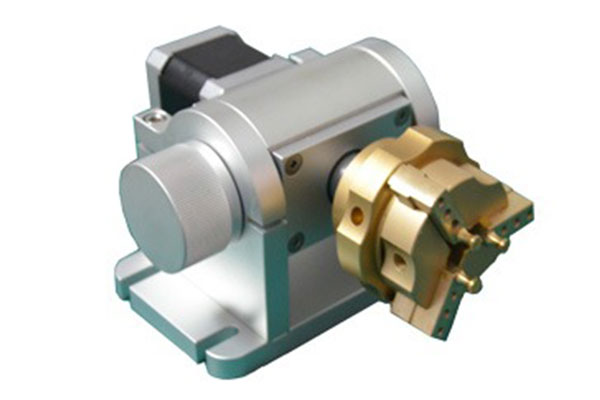

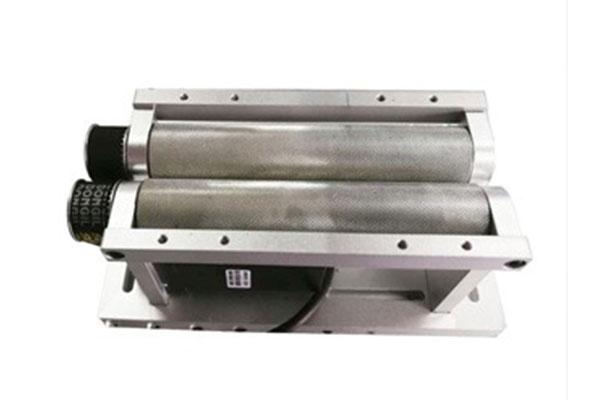

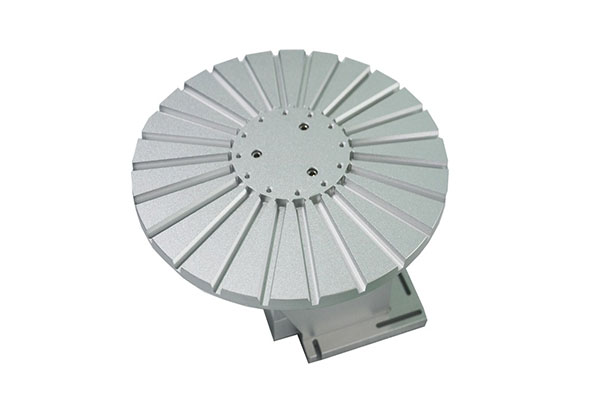

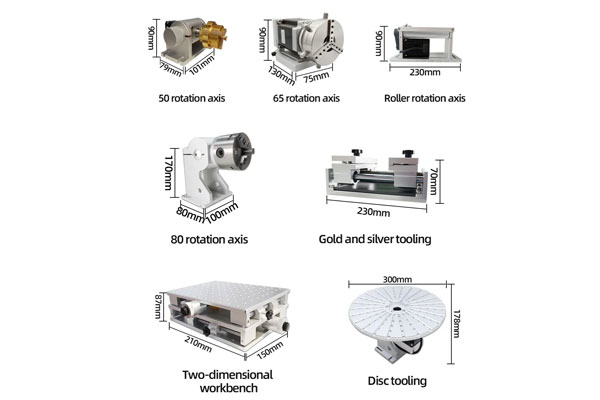

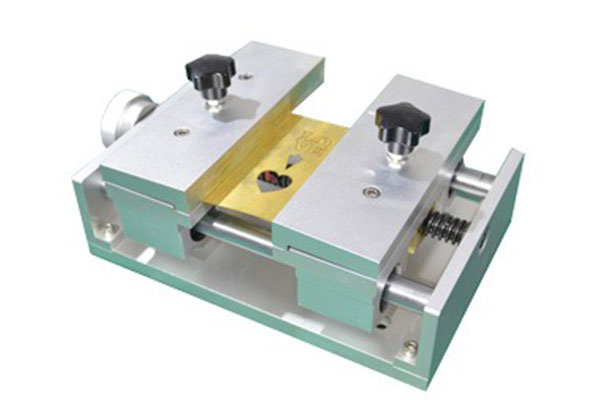

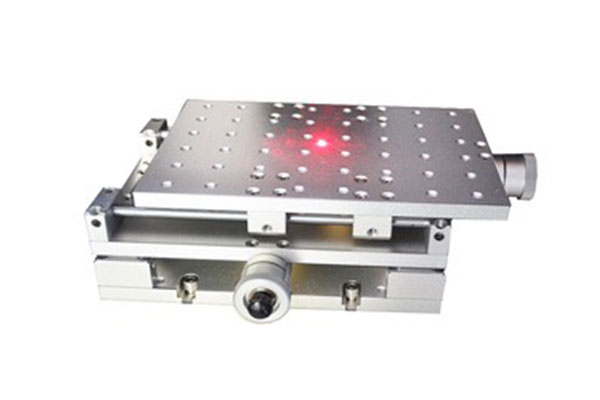

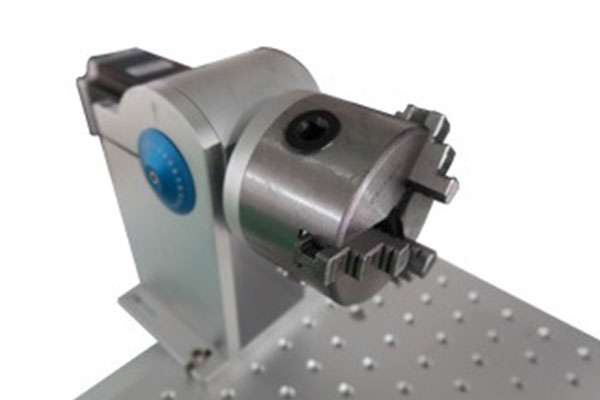

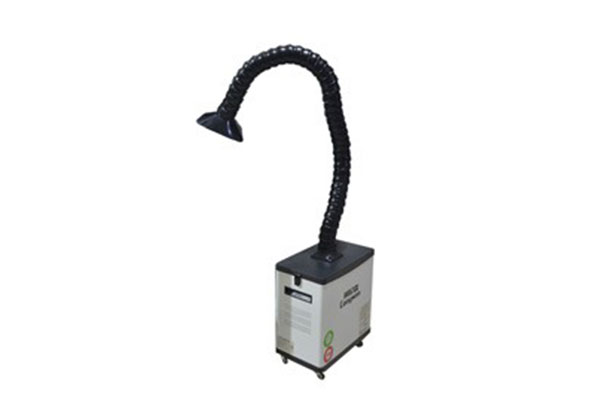

Machine Optional Parts

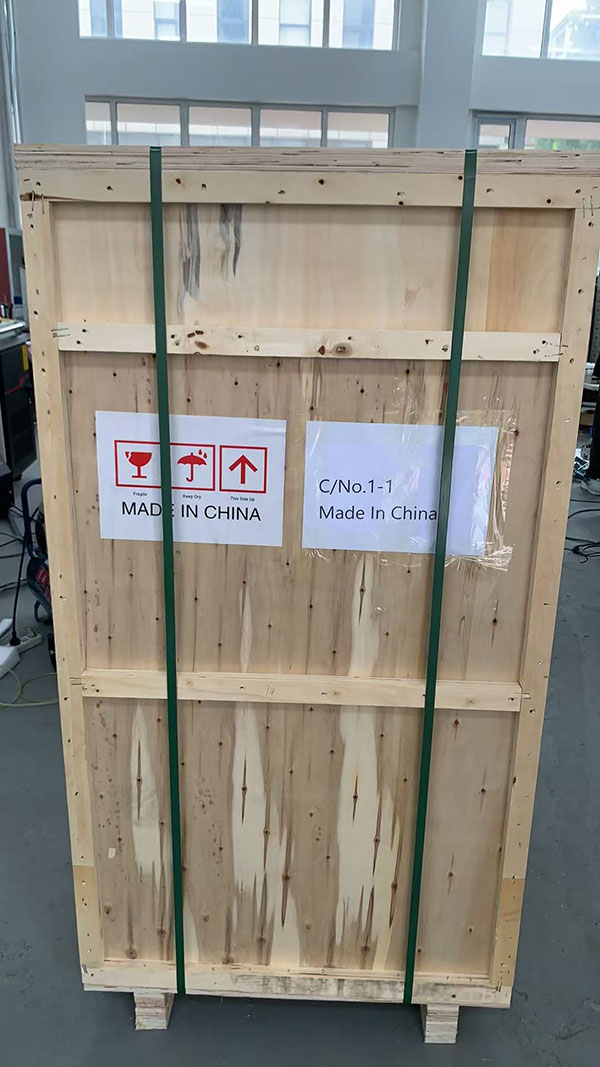

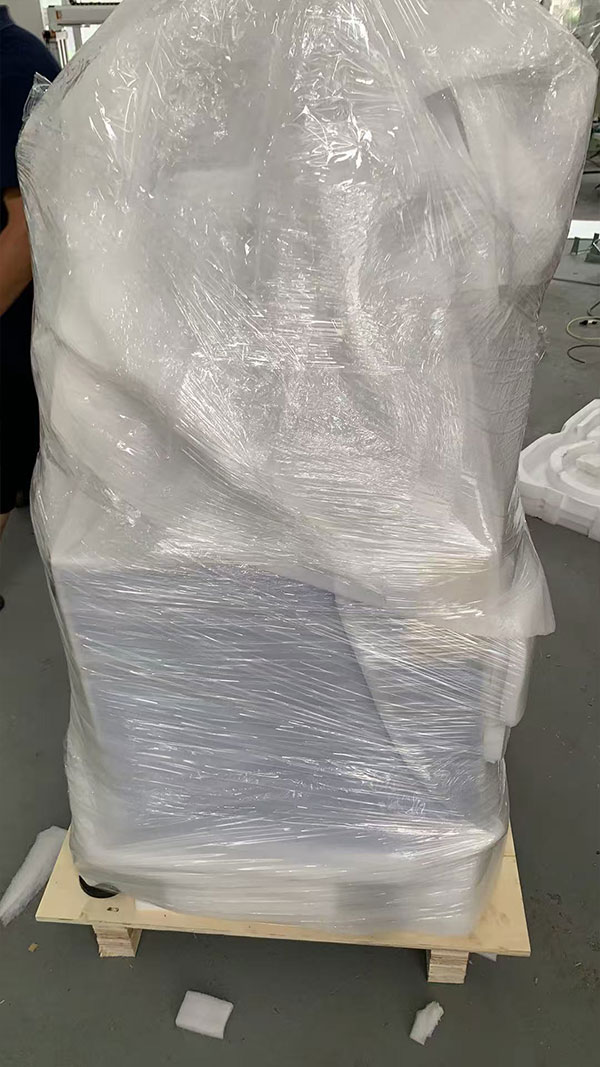

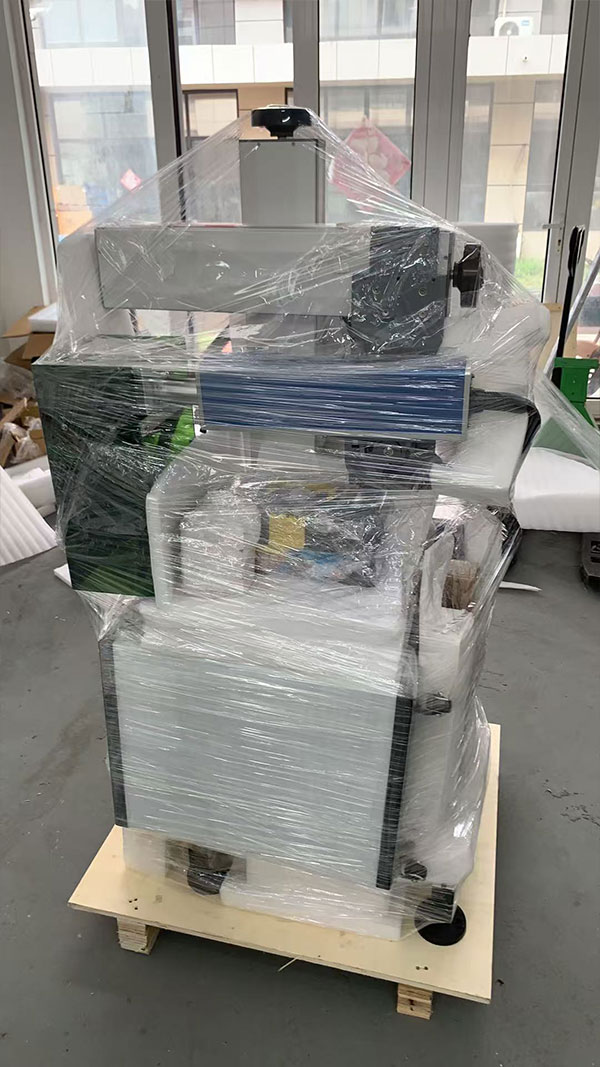

Packaging Details
To make sure your machine arrives safe and sound, we go all out with 3-layer protection.
The outer layer? Sturdy, fumigation-free wooden cases—tough enough for any journey.
In the middle, thick foam cushions the machine, keeping it steady and shock-free.
And the innermost layer? A snug waterproof plastic wrap, shielding the machine from moisture. Safe, sealed, and secure.

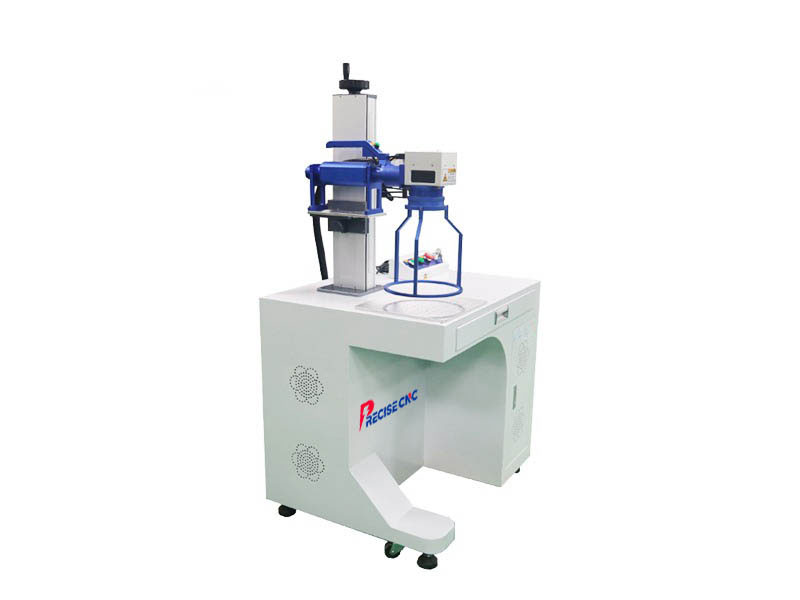

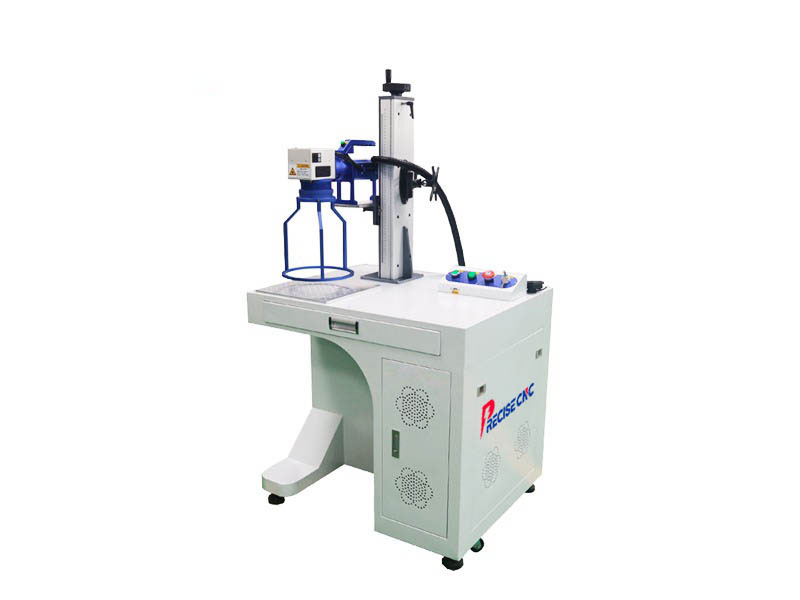

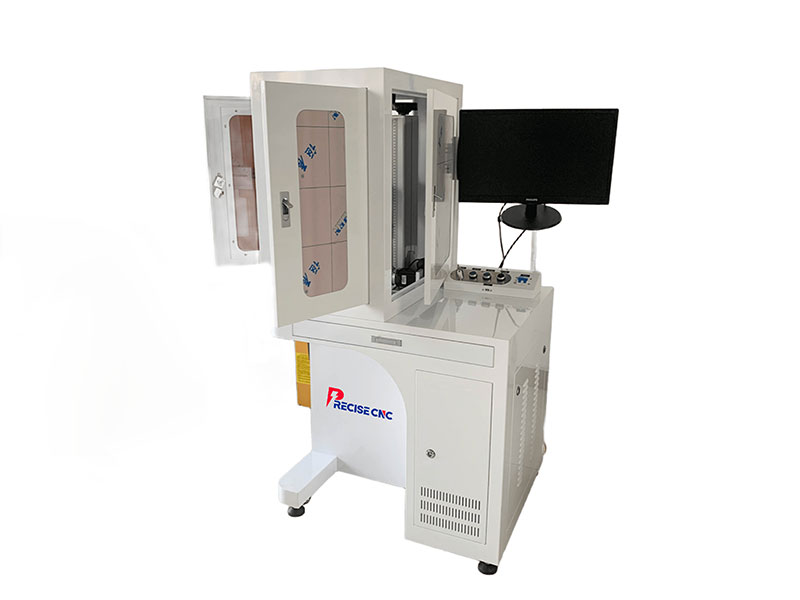

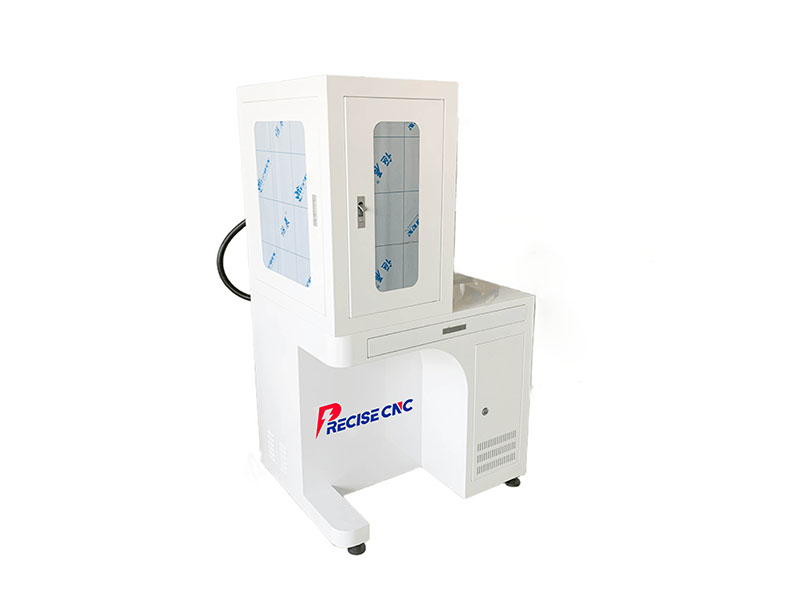

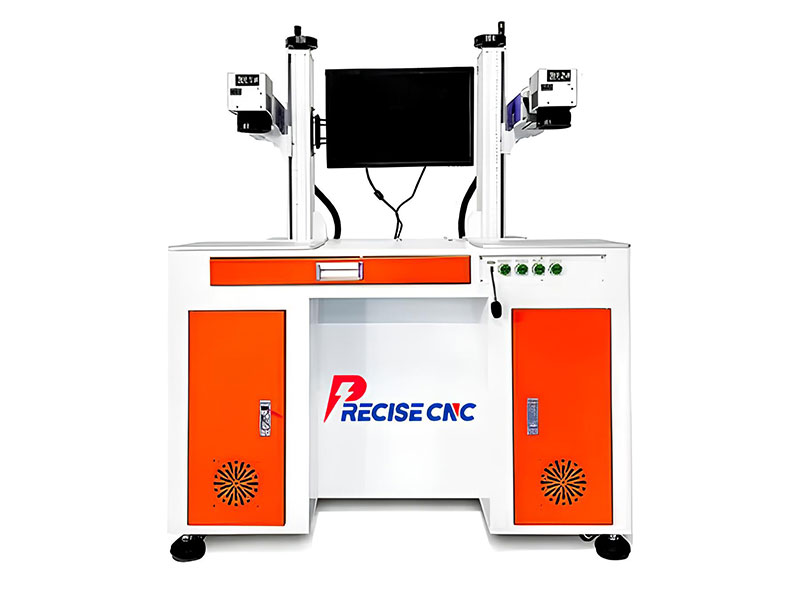

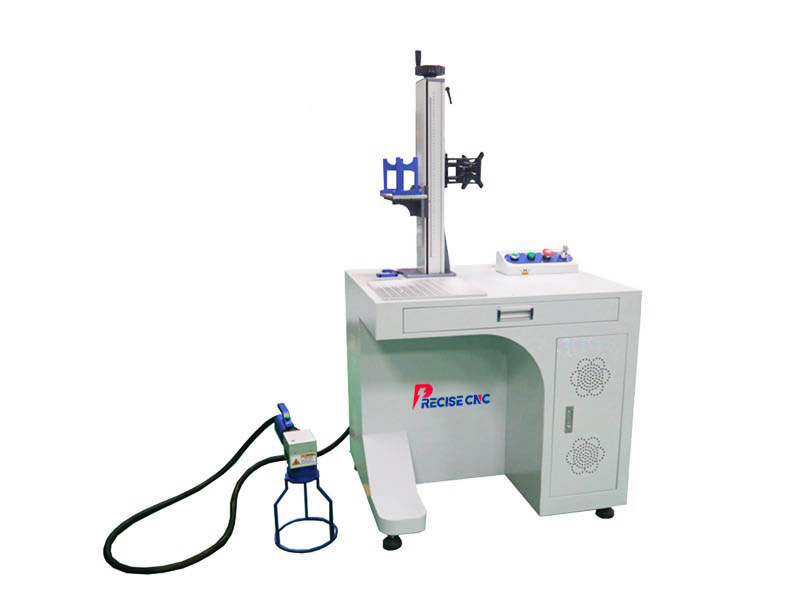

Other Similar Design Models

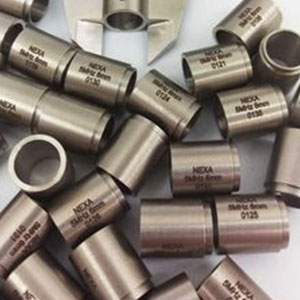

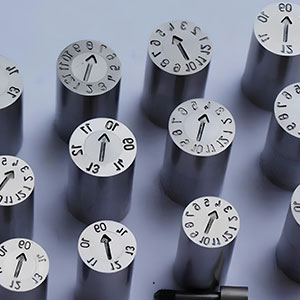

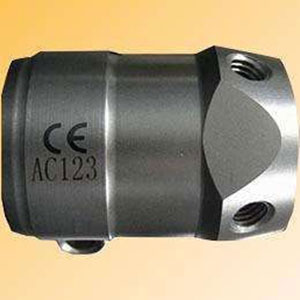

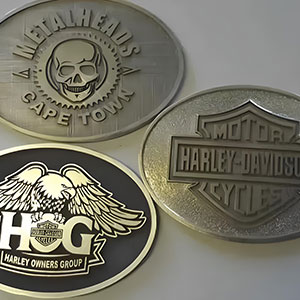

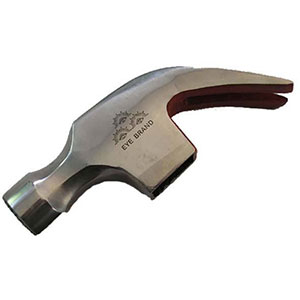

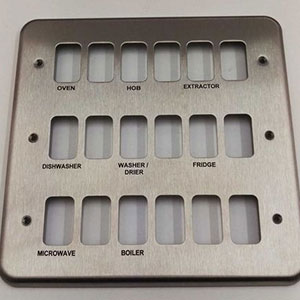

Samples
Application
Medical Devices
Semiconductor Industry
Jewelry Industry
Food Packing Industry

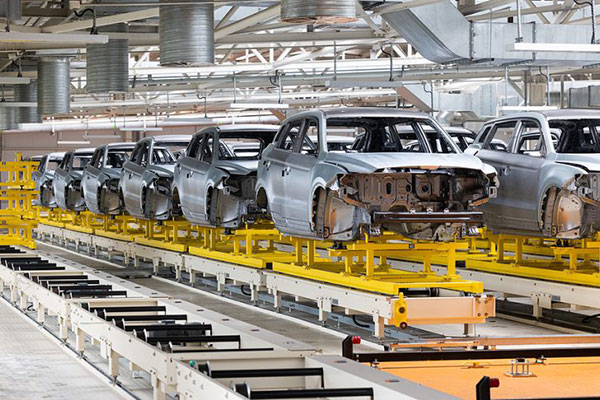

Automotive Manufacturing
Aerospace-Components
Customer Testimonials
FAQ – Desktop Fiber Laser Marking Machine
A: The desktop fiber laser marker can mark a wide range of metals such as stainless steel, aluminum, copper, brass, gold, and silver. It can also mark some non-metals like ABS, PVC, PC, and PC+ABS.
