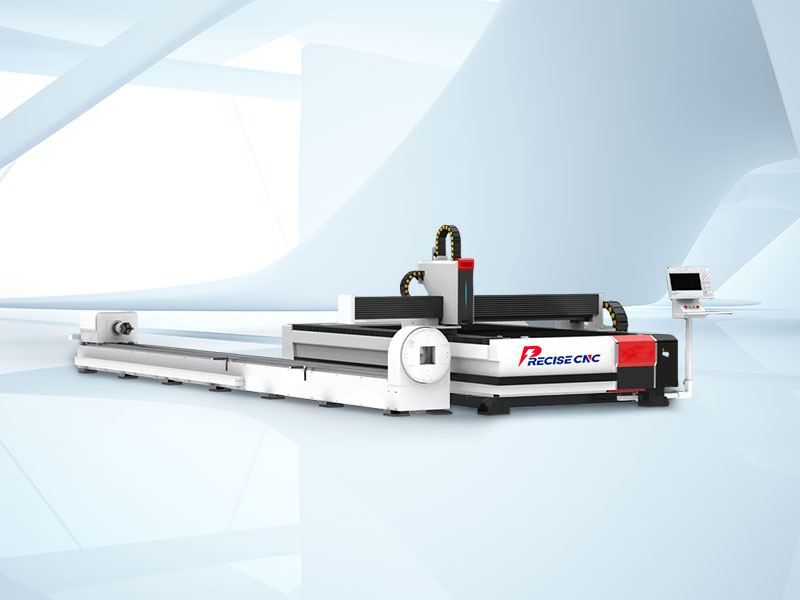

Compact Sheet and Tube Laser Cutting Machine
Compact Sheet and Tube Laser Cutting Machine

Product Name: Compact Sheet and Tube Laser Cutting Machine

Model: PR-ST3015,PR-ST4020,PR-ST6025

Laser Power: 1.5kw~60kw

Working Range: 8500x3700x2200,8500x4600x2200,8700x5300x2250

Application: Kitchenware Manufacturing,Agriculture Machinery,Furniture,Manufacturing,Architecture Industry,Automotive Manufacturing,Aerospace Industry,Shipbuilding Industry,Railway Facilities,Petroleum Industry,Sports Equipment

Inquire
Product Specification
Model No.PR-ST3015PR-ST4020PR-ST6025
Cutting area (mm)3000x15004000x20006000x2500
Tube length (mm)300040006000
Tube diameter (mm)Φ口8 -120Φ口10 -180Φ口15 -250
Max. Load-bearing of work platform0.9T1.6T1.8T
Dimension (mm)8500x3700x22008500x4600x22008700x5300x2250
Max. Acceleration1.5G
Laser Power1.5kw~60kw
Processable sheets and tubesCarbon steel, stainless steel, aluminum alloy, brass and copper etc, various metal plates and tubes can all be processed

Compact Sheet and Tube Laser Cutting Machine Features and Advantages

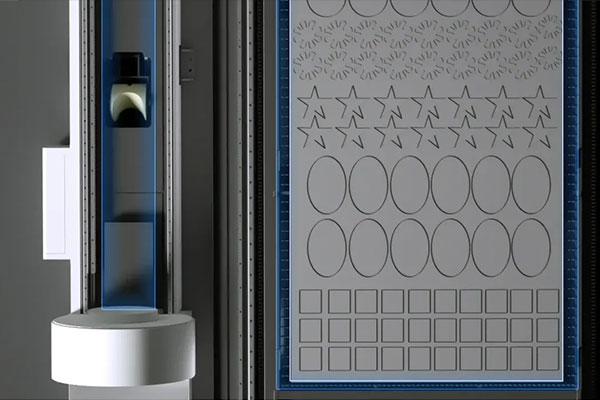

  • One machine two function

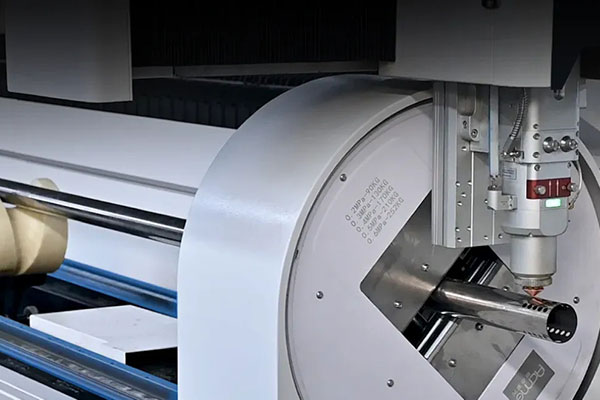

  • Best configuration

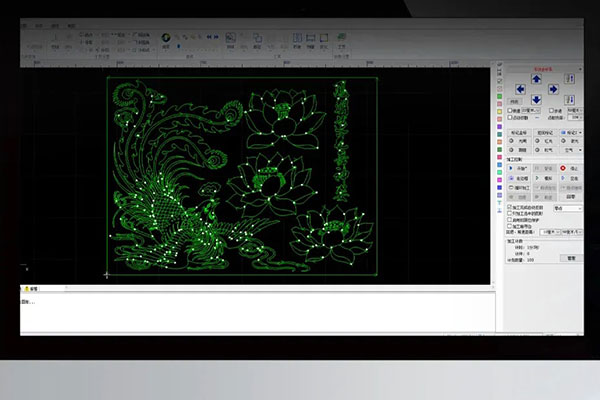

  • Bus system

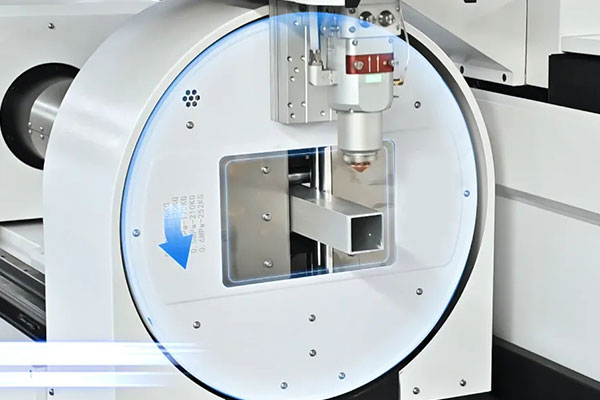

  • PRECISE CNC Chuck

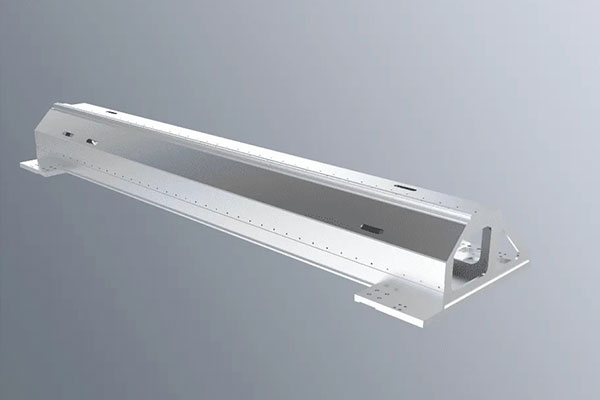

  • Aerospace Grade Aluminum beams

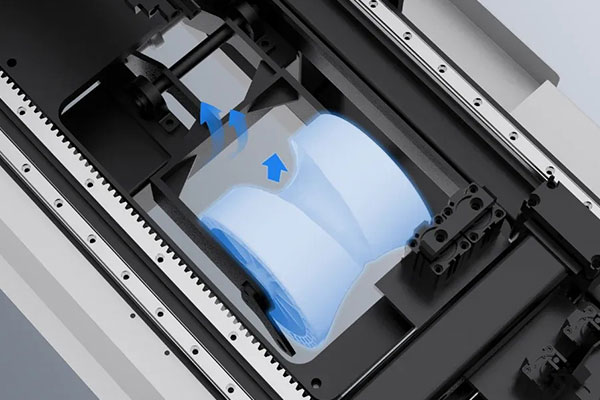

  • Stable support

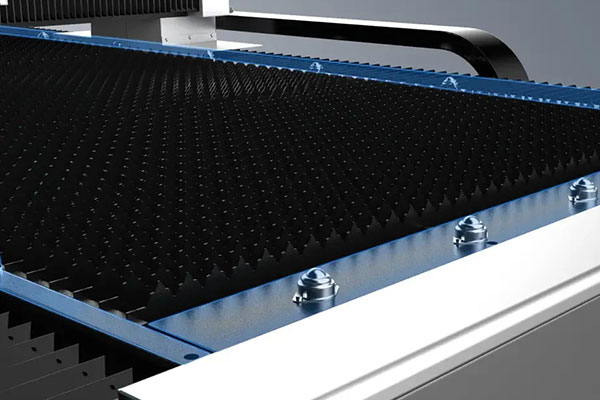

  • Safety protection

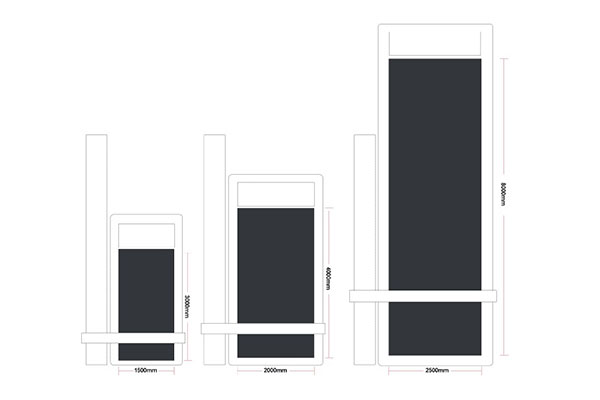

  • High flexibility

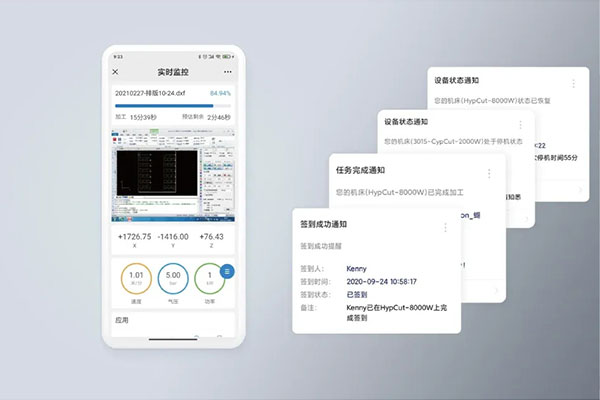

  • Remote monitoring

Compact Sheet and Tube Laser Cutting Machine Samples

2
5

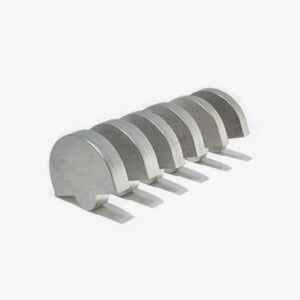

stainless-steel-fiber-laser-cutting-machine
3

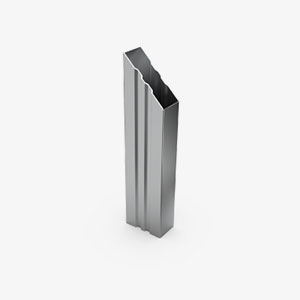

High-speed-laser-cutting-machine

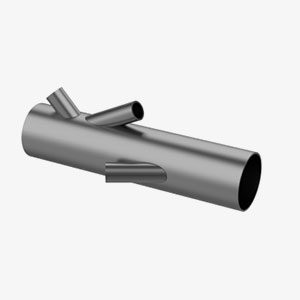

metal-tube-pipe-laser-cutting-machine
high-speed-steel-pipe-laser-cutting-machine
stainless-steel-tube-laser-cutting-machine

Compact Sheet and Tube Laser Cutting Machine Applications

6-1
Aerospace Industry
6-2
Agriculture Machinery
6-3
Architecture Industry
6-4
Automotive Manufacturing
6-5
Petroleum Industry
6-6
Railway Facilities
Furniture-Manufacturing
Furniture Manufacturing
Kitchenware-Manufacturing
Kitchenware Manufacturing
Shipbuilding-Industry
Shipbuilding Industry

Compact Sheet and Tube Laser Cutting Machine Testimonials

1
5
2
3
12

Compact Sheet and Tube Laser Cutting Machine FAQs

Q: What's the working principle of fiber laser cutting machine?

A: The working principle of a fiber laser cutting machine is based on the use of a high-powered laser beam to melt, burn, or vaporize the material being cut. Here’s a breakdown of the process:

1.Laser Generation: The machine generates a laser beam using a fiber optic laser source. The laser source typically uses a fiber laser (such as YAG or ytterbium-doped fiber) that is pumped with light from diodes. The laser beam is then transmitted through the fiber optic cable.

2.Beam Focusing: The laser beam is directed and focused onto the material using a set of mirrors and a focusing lens. The focused beam has very high energy density and is able to concentrate on a small spot on the material’s surface.

3.Material Interaction: When the laser beam hits the material, it rapidly heats up the surface, causing the material to melt, burn, or vaporize. The cutting area is typically assisted by auxiliary gases (like nitrogen, oxygen, or compressed air), which help blow away the molten material and improve the cut quality.

4.Cutting Process: As the laser beam moves across the material, the heat melts or vaporizes the material in the path of the beam. The cutting head is typically controlled by a CNC system, which precisely guides the laser beam to cut along the desired path.

5.Cooling: During the cutting process, the material around the laser-cut area cools and solidifies quickly, allowing for clean, precise cuts with minimal distortion.

Fiber laser cutting machines are favored for their high cutting precision, speed, and efficiency, particularly when cutting metals such as stainless steel, aluminum, and carbon steel. The fiber laser’s ability to focus energy tightly on the cutting area results in high-quality, narrow kerf widths, and minimal heat-affected zones (HAZ).

Q: How do auxiliary gases such as oxygen and nitrogen enhance the laser cutting process?

Q: What materials can be cut by fiber laser metal cutting machine?

Q: What is the maximum thickness of metal that a fiber laser can cut?

Q: Can laser metal cutting machines cut through rusty iron plates directly?

Q: What is the expected lifespan of a laser metal cutting machine, and what warranty is provided?

Q: What happens if there is a sudden power outage during processing, and how can laser processing continue?

Q: What are the wear parts of a laser metal cutting machine?
