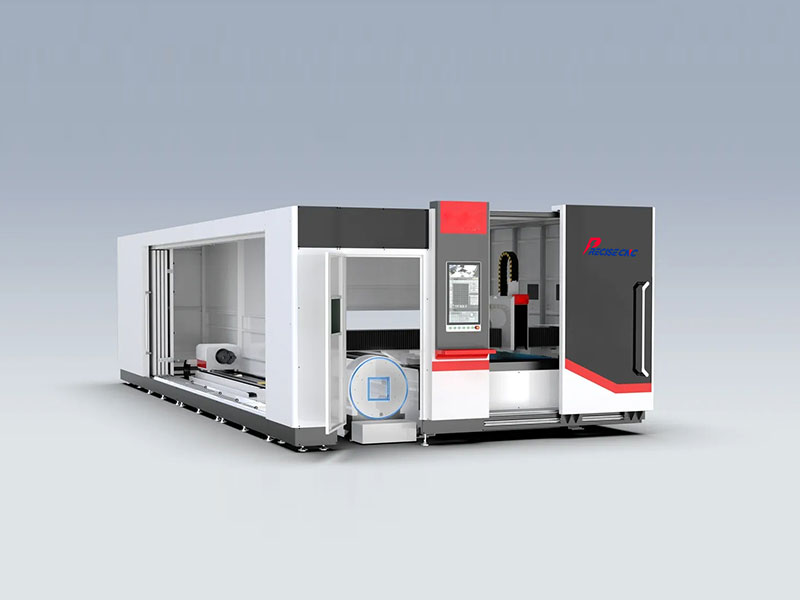

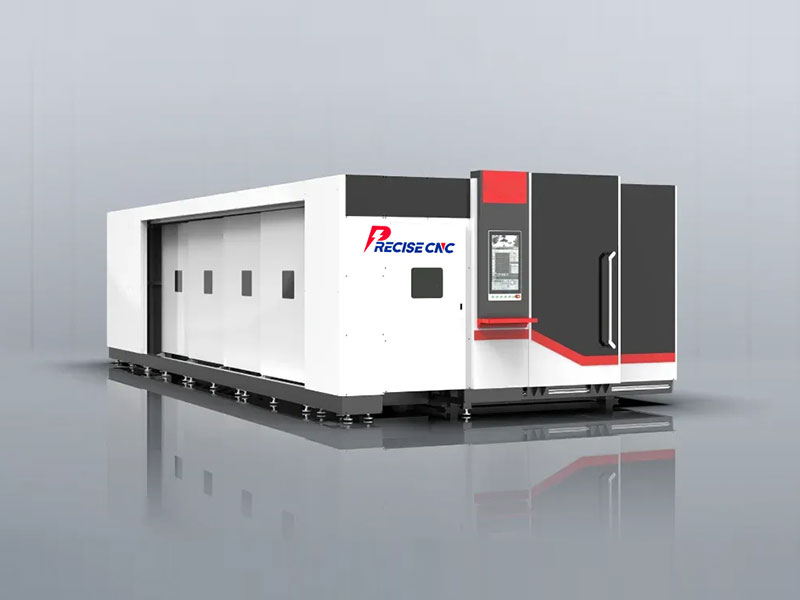

Product Name: Protection Enclosure Sheet and Tube Laser Cutting Machine

Model: PR-EST4020,PR-EST6025,PR-EST12025

Laser Power: 1.5kw~60kw

Dimension (mm): 11100x4700x2600,15500x5700x3100,31000x5700x3100

Application: Kitchenware Manufacturing,Agriculture Machinery,Furniture Manufacturing,Architecture Industry,Automotive Manufacturing,Aerospace Industry,Shipbuilding Industry,Railway Facilities,Petroleum Industry,Sports Equipment

Inquire
Product Specification
Model No.PR-EST4020PR-EST6025PR-EST12025
Cutting area (mm)4000x20006000x250012000x2500
Tube length (mm)4000600012000
Tube diameter (mm)Φ口8 -120Φ口15 -250Φ口15 -280
Max. Load-bearing of work platform1.6T4.8T16T
Dimension (mm)11100x4700x260015500x5700x310031000x5700x3100
Max. Acceleration1.5G
Laser Power1.5kw~60kw
Processable sheets and tubesCarbon steel, stainless steel, aluminum alloy, brass and copper etc, various metal plates and tubes can all be processed

Protection Enclosure Sheet and Tube Laser Cutting Machine Features and Advantages

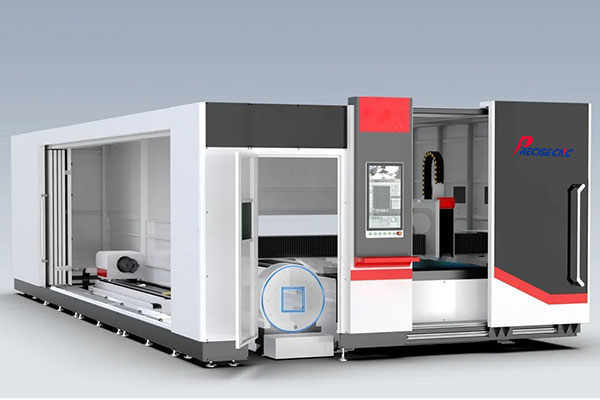

  • One machine two functions

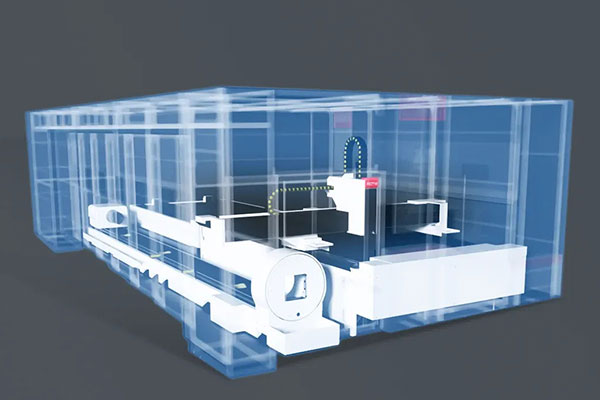

  • Excellent dynamic performance

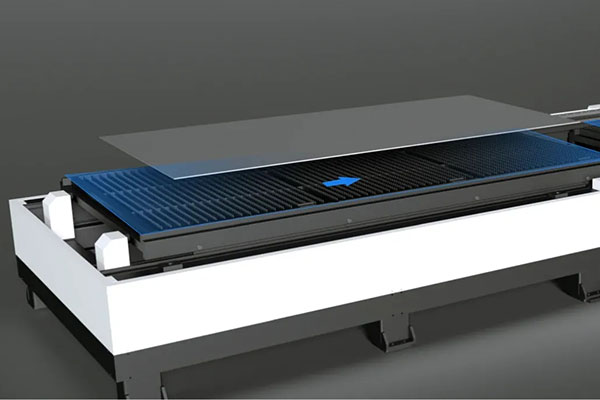

  • Exchangeable working platform design

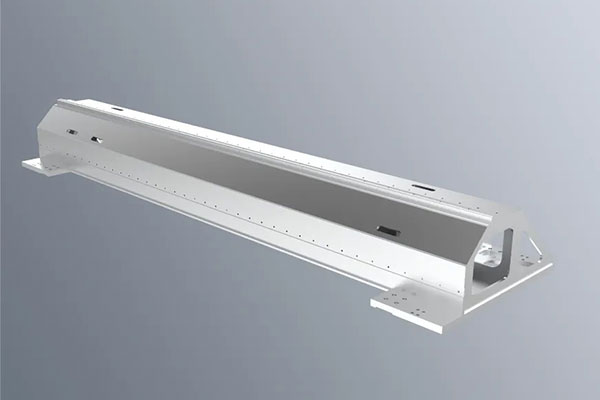

  • Aerospace Grade Aluminum beams

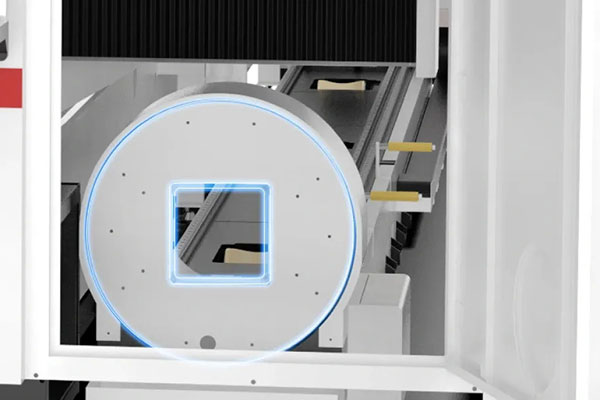

  • PRECISE CNC Chuck

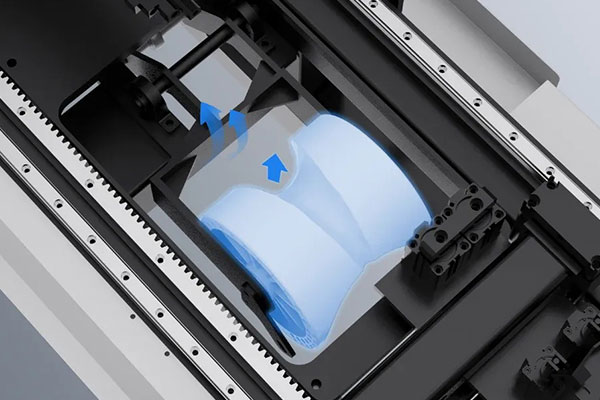

  • Stable support

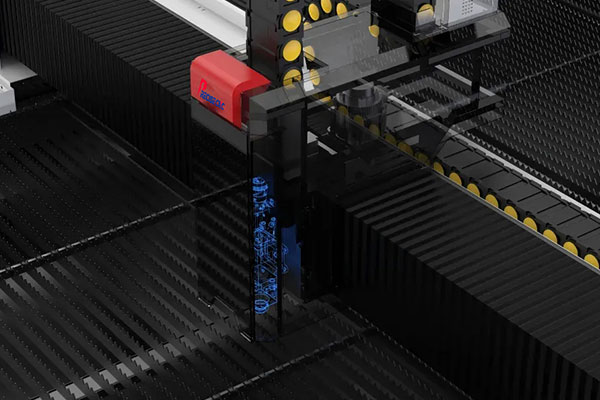

  • Real-time air pressure control

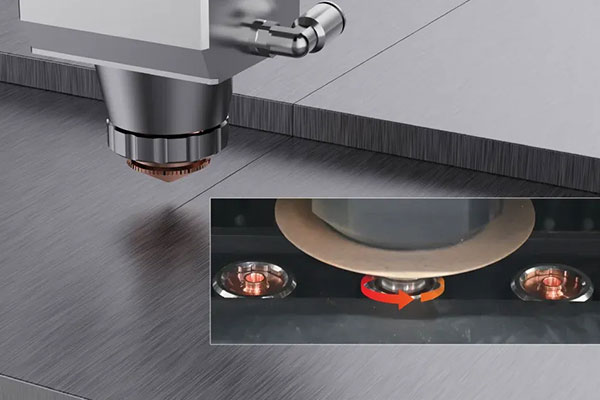

  • Intelligent nozzle replacement

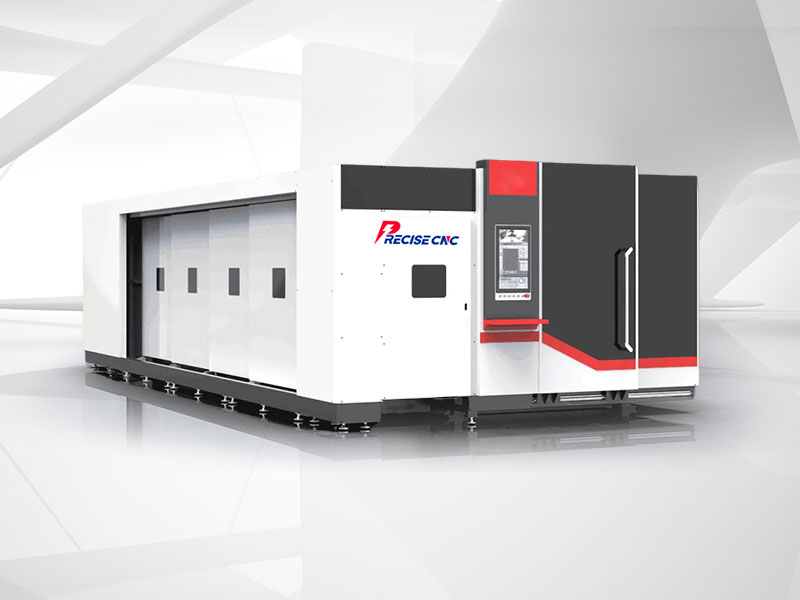

  • Protective cover

Reasons to choose Acme VF-series

Saving labor costs
One machine handles cutting for sheet and tube, efficiently lowering operator demand and cutting labor costs.
Multi-function integration
Combine sheet and tube cutting in a single machine to reduce both purchase cost and floor space.
Efficient and flexible
Quickly switch between sheets and pipes with ease, boosting production efficiency significantly. This flexibility allows you to handle various processing tasks smoothly.
High precision cutting
Whether cutting sheets or pipes, high precision is guaranteed, ensuring consistent and stable processing quality throughout.

Protection Enclosure Sheet and Tube Laser Cutting Machine Samples

2
5
stainless-steel-fiber-laser-cutting-machine
3
high-speed-steel-pipe-laser-cutting-machine
metal-tube-pipe-laser-cutting-machine
High-speed-laser-cutting-machine
stainless-steel-tube-laser-cutting-machine

Protection Enclosure Sheet and Tube Laser Cutting Machine Applications

6-1
Aerospace Industry
6-2
Agriculture Machinery
6-3
Architecture Industry
6-4
Automotive Manufacturing
6-5
Petroleum Industry
6-6
Railway Facilities
Furniture-Manufacturing
Furniture Manufacturing
Kitchenware-Manufacturing
Kitchenware Manufacturing
Shipbuilding-Industry
Shipbuilding Industry

Protection Enclosure Sheet and Tube Laser Cutting Machine Testimonials

1
5
2
3
12

Protection Enclosure Sheet and Tube Laser Cutting Machine FAQs

Q: What's the working principle of fiber laser cutting machine?

A: The working principle of a fiber laser cutting machine is based on the use of a high-powered laser beam to melt, burn, or vaporize the material being cut. Here’s a breakdown of the process:

1.Laser Generation: The machine generates a laser beam using a fiber optic laser source. The laser source typically uses a fiber laser (such as YAG or ytterbium-doped fiber) that is pumped with light from diodes. The laser beam is then transmitted through the fiber optic cable.

2.Beam Focusing: The laser beam is directed and focused onto the material using a set of mirrors and a focusing lens. The focused beam has very high energy density and is able to concentrate on a small spot on the material’s surface.

3.Material Interaction: When the laser beam hits the material, it rapidly heats up the surface, causing the material to melt, burn, or vaporize. The cutting area is typically assisted by auxiliary gases (like nitrogen, oxygen, or compressed air), which help blow away the molten material and improve the cut quality.

4.Cutting Process: As the laser beam moves across the material, the heat melts or vaporizes the material in the path of the beam. The cutting head is typically controlled by a CNC system, which precisely guides the laser beam to cut along the desired path.

5.Cooling: During the cutting process, the material around the laser-cut area cools and solidifies quickly, allowing for clean, precise cuts with minimal distortion.

Fiber laser cutting machines are favored for their high cutting precision, speed, and efficiency, particularly when cutting metals such as stainless steel, aluminum, and carbon steel. The fiber laser’s ability to focus energy tightly on the cutting area results in high-quality, narrow kerf widths, and minimal heat-affected zones (HAZ).

Q: How do auxiliary gases such as oxygen and nitrogen enhance the laser cutting process?

Q: What materials can be cut by fiber laser metal cutting machine?

Q: What is the maximum thickness of metal that a fiber laser can cut?

Q: Can laser metal cutting machines cut through rusty iron plates directly?

Q: What is the expected lifespan of a laser metal cutting machine, and what warranty is provided?

Q: What happens if there is a sudden power outage during processing, and how can laser processing continue?

Q: What are the wear parts of a laser metal cutting machine?
