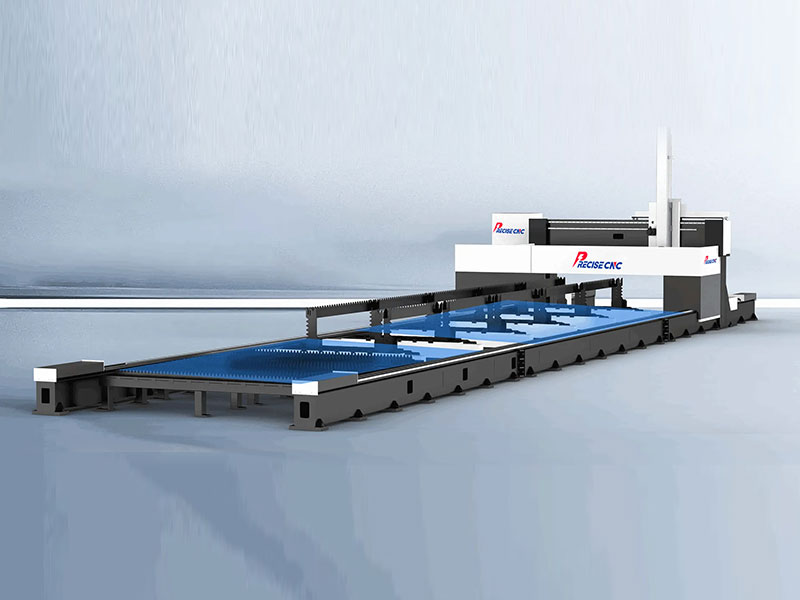

Gantry Profile Laser Cutting Machine
Gantry Profile Laser Cutting Machine

Product Name: Gantry Profile Laser Cutting Machine

Model: PR-LHM12020,PR-LHM12030,PR-LHM12035

Laser Power: 6kw~30kw

Dimension (Dual): 1318.90x188.98x173.23(in),1318.90x220.47x173.23(in),1318.90x240.16x173.23(in)

Application: Kitchenware Manufacturing,Agriculture Machinery,Furniture Manufacturing,Architecture Industry,Automotive Manufacturing,Aerospace Industry,Shipbuilding Industry,Railway Facilities,Petroleum Industry,Sports Equipment

Inquire
Product Specification
Model No.PR-LHM12020PR-LHM12030PR-LHM12035
Dimension (Single)700.79x188.98x173.23(in)700.79x220.47x173.23(in)700.79x240.16x173.23(in)
Dimension (Dual)1318.90x188.98x173.23(in)1318.90x220.47x173.23(in)1318.90x240.16x173.23(in)
Cutting tailing0
Load Capacity0.31T
Profiles Max. Cutting Size472.44x47.24x23.62(in)
Plates Max. Cutting Size472.44x86.61x1.57(in)
Laser Power6kw~30kw
Pipe typesI-beam/HW/HM/HN/Channel steel and metal plates

Gantry Profile Laser Cutting Machine Features and Advantages

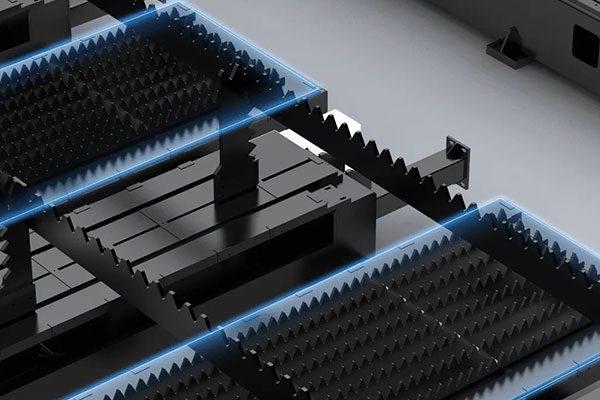

  • Cutting platforms

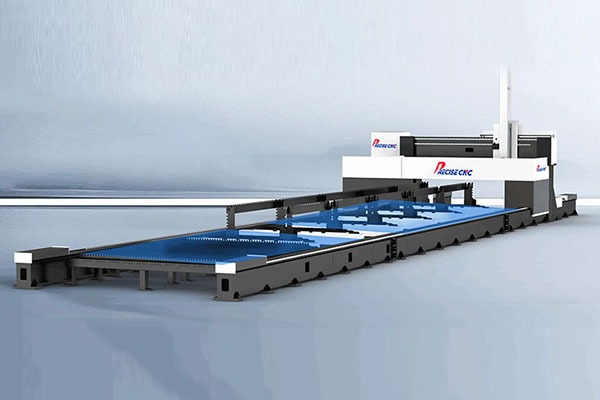

  • Machine bed structure

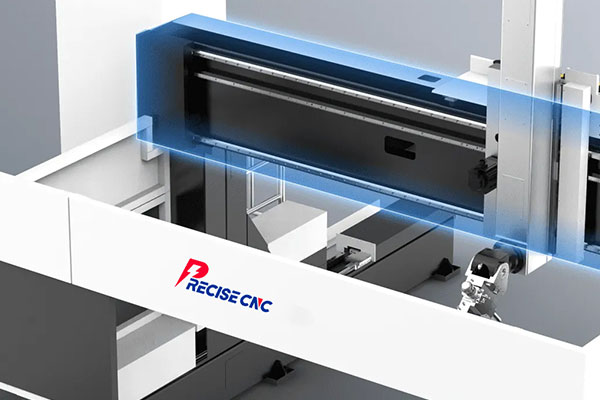

  • Gantry structure beams

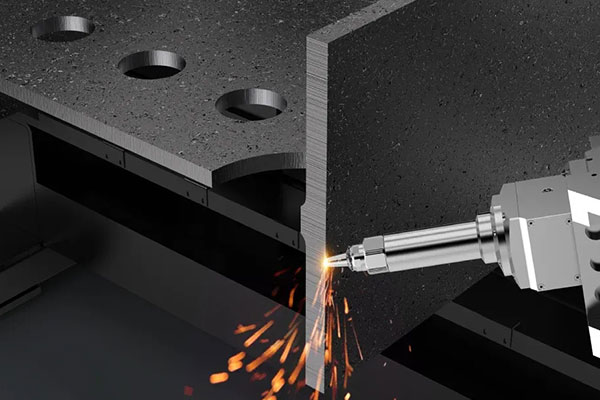

  • Bevel cutting

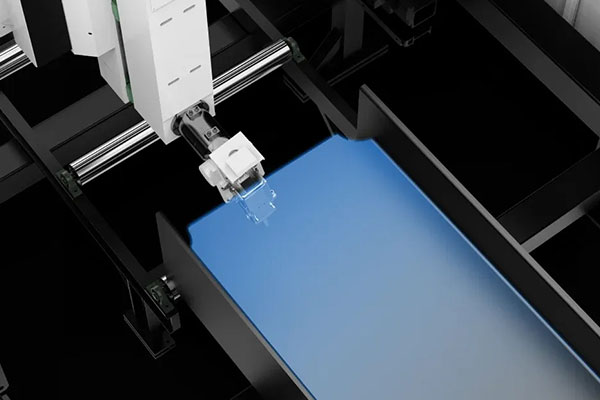

  • Zero tailing cutting

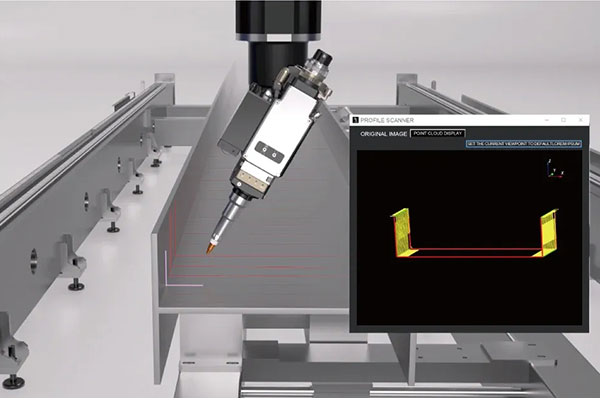

  • Visual positioning

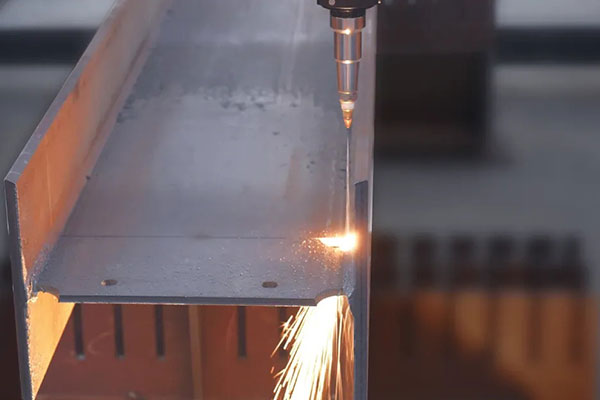

  • Height following, cutting at any position
  • One machine having multiple cutting functions

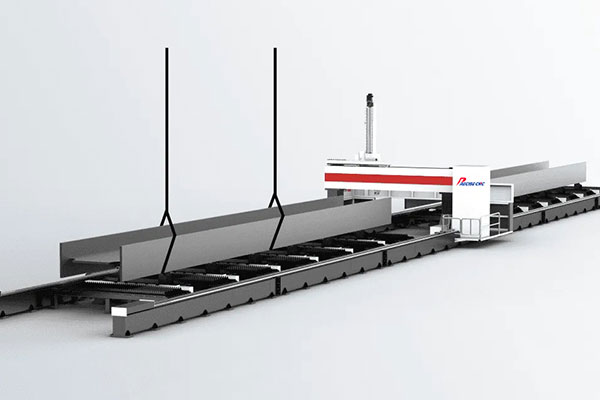

  • Dual work station design

Reasons to choose PRECISE CNC LHM-series

Cutting Capability
Cutting ability: The LHM-Series two-chuck side-hanging laser tube cutting machine is capable of cutting all types of metal tubes with lengths from 6 to 15 meters, diameters from 8 to 640 mm, and weights up to 2.6 tons.
Profiles and plates cutting
Hole-cutting, engraving, and marking—all completed on a single machine. High cutting power enables one-time processing and precise shaping.
Connect with Telka
Providing efficient drawing and nesting, compatible with multiple bevel cutting processes.

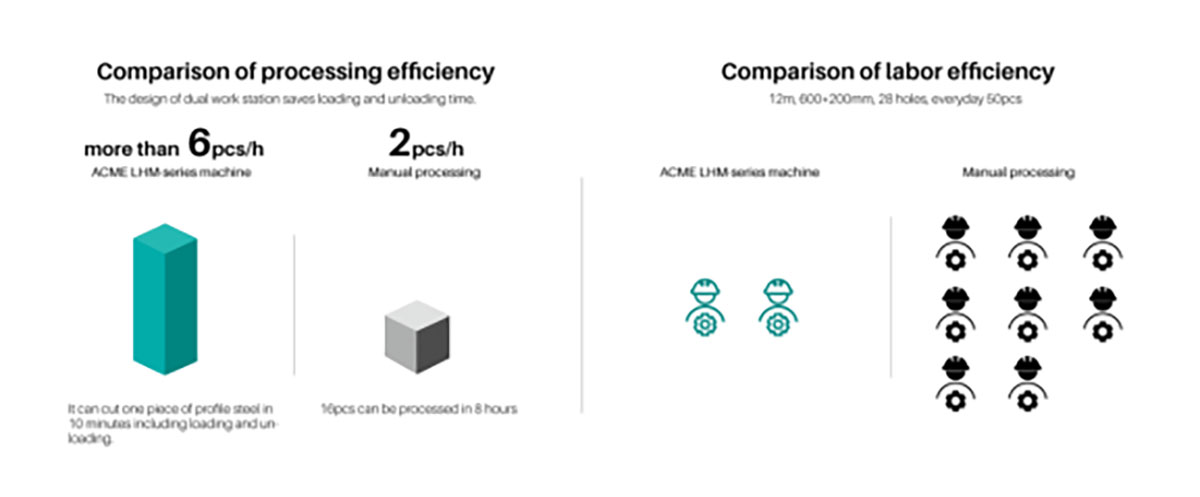

Savings in processes and cost

The cutting section is smooth and burr-free, ensuring high-quality results. Laser cutting does not damage the material’s surface. One machine can complete multiple processes without the need for sawing, drilling, or deburring. This reduces processing time, minimizes the number of parts, lowers assembly errors, and decreases the workload in subsequent steps.
Savings-in-processes-and-cost

Gantry Profile Laser Cutting Machine Samples

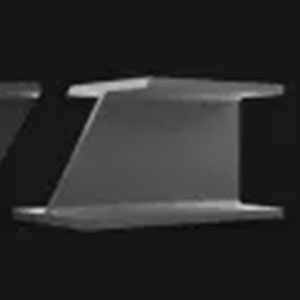

H-steel-laser-cutter

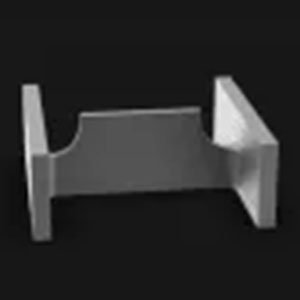

h-steel-laser-cutting-machine

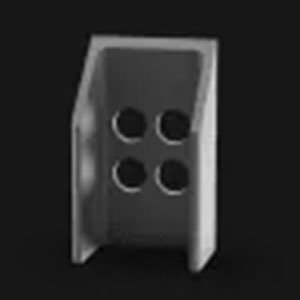

profile-steel-laser-cutting-machine

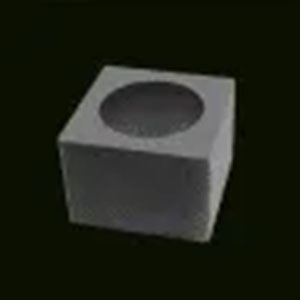

thick-metal-sheet-plate-laser-cutting-machine

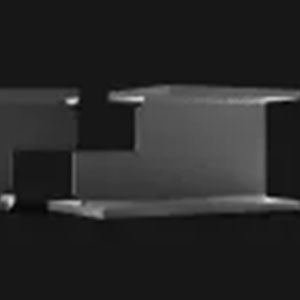

profile-steel-laser-cutter

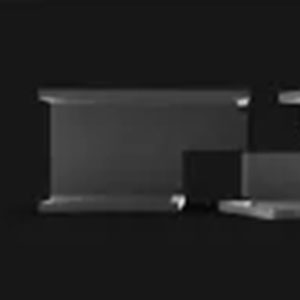

h-steel-fiber-laser-cutting-machine

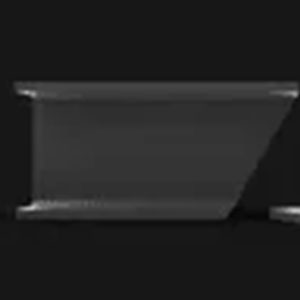

H-steel-laser-cutting

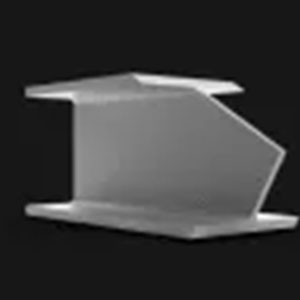

fiber-laser-cutting-machine-for-H-steel

Gantry Profile Laser Cutting Machine Applications

6-1
Aerospace Industry
6-2
Agriculture Machinery
6-3
Architecture Industry
6-4
Automotive Manufacturing
6-5
Petroleum Industry
6-6
Railway Facilities
Kitchenware-Manufacturing
Kitchenware Manufacturing
Furniture-Manufacturing
Furniture Manufacturing
Shipbuilding-Industry
Shipbuilding Industry

Gantry Profile Laser Cutting Machine Testimonials

1
5
2
3
12

Gantry Profile Laser Cutting Machine FAQs

Q: What's the working principle of fiber laser cutting machine?

A: The working principle of a fiber laser cutting machine is based on the use of a high-powered laser beam to melt, burn, or vaporize the material being cut. Here’s a breakdown of the process:

1.Laser Generation: The machine generates a laser beam using a fiber optic laser source. The laser source typically uses a fiber laser (such as YAG or ytterbium-doped fiber) that is pumped with light from diodes. The laser beam is then transmitted through the fiber optic cable.

2.Beam Focusing: The laser beam is directed and focused onto the material using a set of mirrors and a focusing lens. The focused beam has very high energy density and is able to concentrate on a small spot on the material’s surface.

3.Material Interaction: When the laser beam hits the material, it rapidly heats up the surface, causing the material to melt, burn, or vaporize. The cutting area is typically assisted by auxiliary gases (like nitrogen, oxygen, or compressed air), which help blow away the molten material and improve the cut quality.

4.Cutting Process: As the laser beam moves across the material, the heat melts or vaporizes the material in the path of the beam. The cutting head is typically controlled by a CNC system, which precisely guides the laser beam to cut along the desired path.

5.Cooling: During the cutting process, the material around the laser-cut area cools and solidifies quickly, allowing for clean, precise cuts with minimal distortion.

Fiber laser cutting machines are favored for their high cutting precision, speed, and efficiency, particularly when cutting metals such as stainless steel, aluminum, and carbon steel. The fiber laser’s ability to focus energy tightly on the cutting area results in high-quality, narrow kerf widths, and minimal heat-affected zones (HAZ).

Q: How do auxiliary gases such as oxygen and nitrogen enhance the laser cutting process?

Q: What materials can be cut by fiber laser metal cutting machine?

Q: What is the maximum thickness of metal that a fiber laser can cut?

Q: Can laser metal cutting machines cut through rusty iron plates directly?

Q: What is the expected lifespan of a laser metal cutting machine, and what warranty is provided?

Q: What happens if there is a sudden power outage during processing, and how can laser processing continue?

Q: What are the wear parts of a laser metal cutting machine?

PRECISE CNC is committed to serving you with high-quality laser solutions and excellent services, and establishing long-term partnerships. If you are interested in our products and services, please feel free to contact us at any time.
