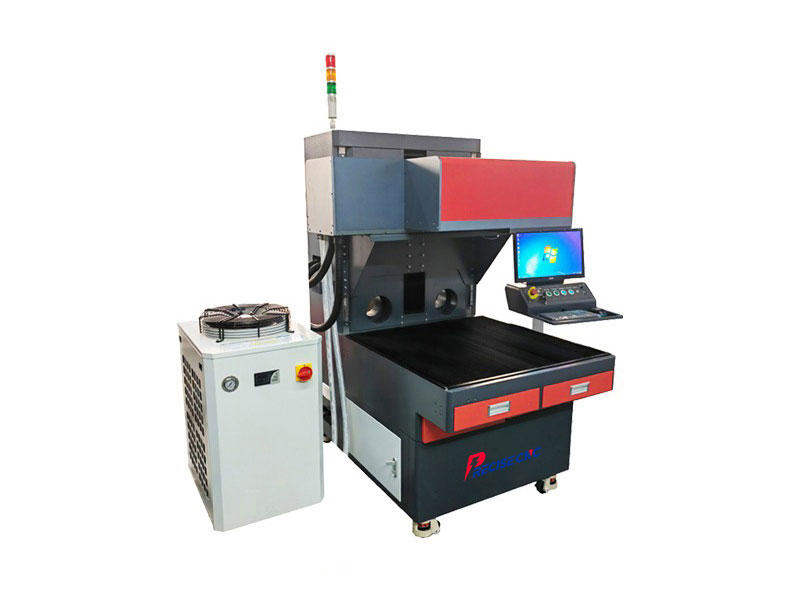

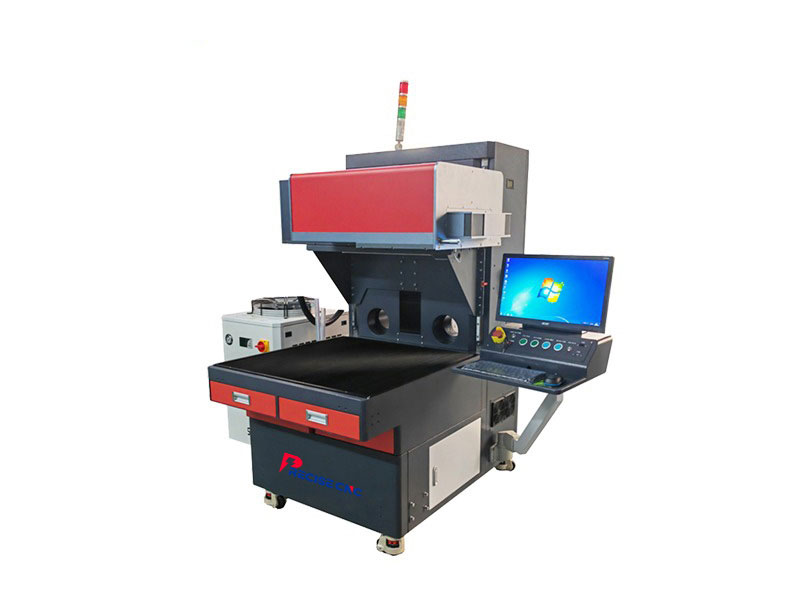

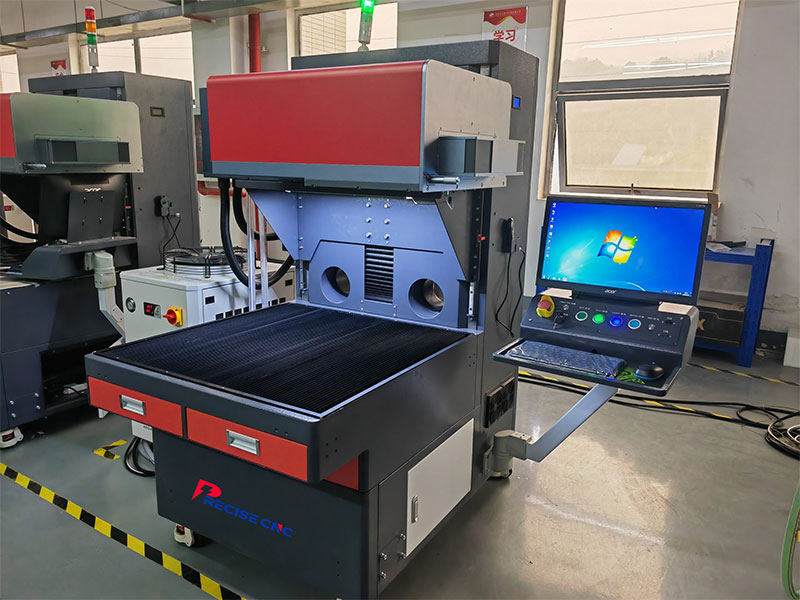

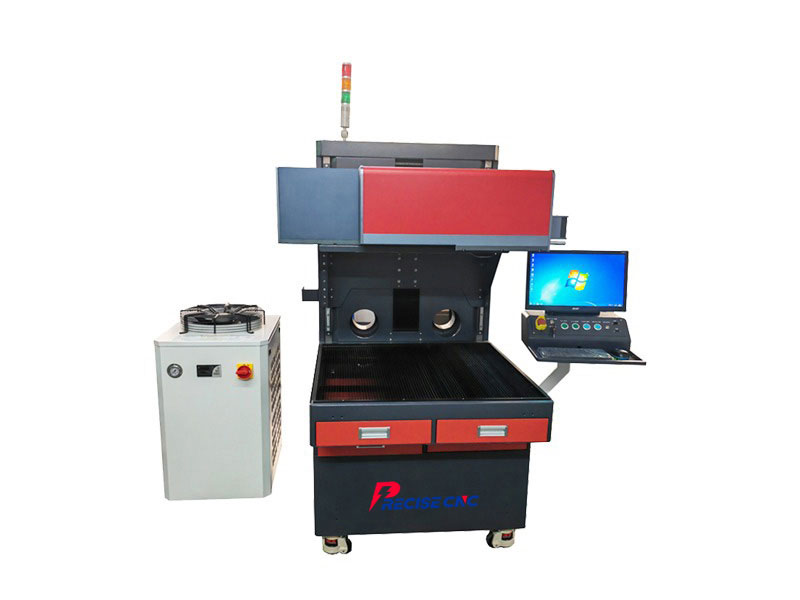

Product Name: 250w 800x800mm LGP (light Guide Plate ) Dynamic Focusing CO2 Laser Marking Machine
Model: PR-CO2RF250 PR-CO2RF350
Laser Power: 250w 350w
Application: Light guide plate, Plastic, wood, leather, textiles, stone, ceramic and so on.
Inquire
General Introduction

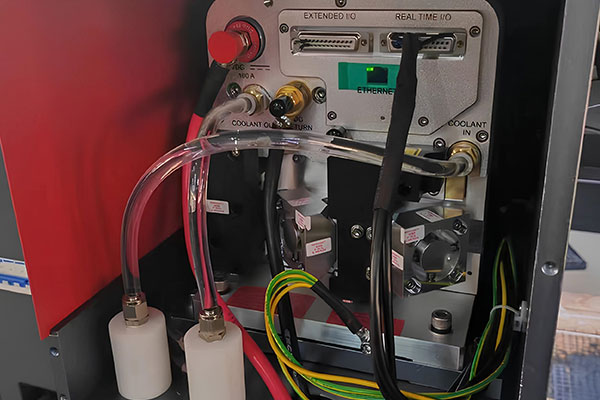

The large-format CO2 laser marking machine is specialized equipment designed for processing oversized components especially Light guide plate with high precision, high speed, and wide material adaptability. It employs a CO2 laser tube as the core source, generating a 10.64μm wavelength laser in the mid-infrared spectrum. With advanced dynamic focusing technology, the beam passes through precision optics such as beam expanders and focusing lenses, achieving amplification and concentration to form a high-energy, monochromatic beam. This beam acts precisely on the workpiece surface, creating clear and permanent markings through vaporization or chemical reaction. Compared with conventional CO2 engraving machines, the processing speed is significantly enhanced, greatly increasing production efficiency.
The system is equipped with a large-format working area, enabling efficient processing of wooden boxes, cardboard, textiles, leather, and other oversized materials. In terms of operating cost, the machine requires only power supply without additional consumables, ensuring low long-term expenditure. Its user-friendly design allows even beginners to operate with ease, requiring no professional maintenance. By simply inputting graphics, text, or symbols into the control software and setting the marking position, the operator can initiate the marking process quickly and accurately.
Moreover, the non-contact processing approach eliminates mechanical contact with the workpiece, preventing potential surface damage and making the system particularly well-suited for applications demanding extremely high precision.
Main Feature
Extended Processing Range
Capable of handling non-metallic materials and selected metal surfaces up to a maximum size of 800 ×800 mm.
High Precision and Speed
Offers outstanding cutting and engraving working, 0% higher efficiency than similar models in market, processing accuracy up to 0.01 mm, with adjustable processing depth to meet diverse application needs.
Environmentally Friendly and Cost-Efficient
Pollution-free, energy-saving design with no consumables required, meeting RoHS and related environmental standards. Supports 24-hour continuous operation without maintenance, ensuring minimal operating costs.
Ease of Operation

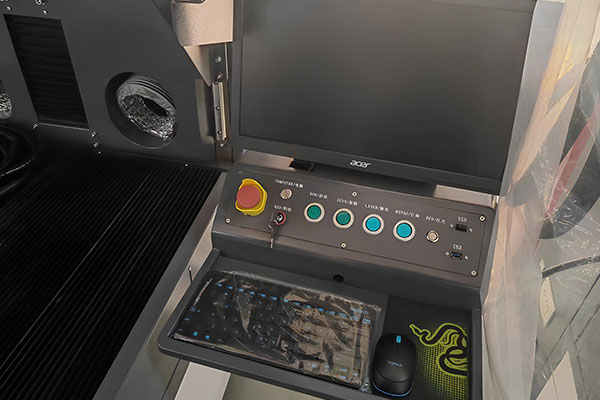

Equipped with powerful software functions that allow even beginners to easily edit and adjust marking content and positioning.
Durable and Reliable Marking
Produces clear, wear-resistant, and long-lasting marks that are difficult to erase, providing excellent anti-counterfeiting capability.

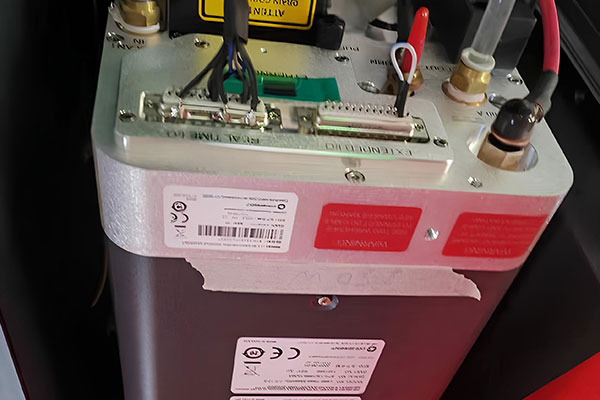

Original imported RF laser tube
with high laser power, excellent laser spot, stable laser generation and lifetime of more than 20000h.

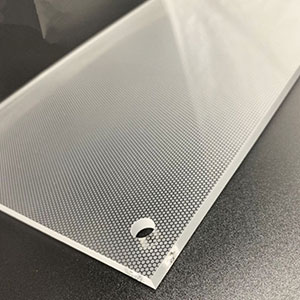

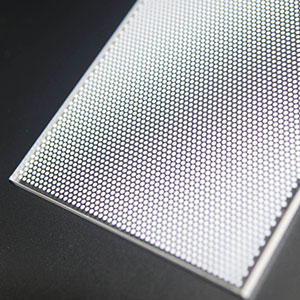

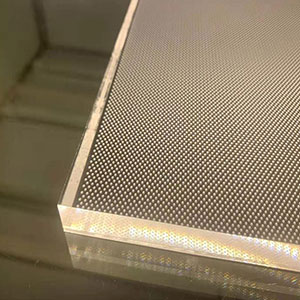

Especially applies RBI marking
with light guild plate or acrylic, and cutting&engraving with leathers and footwears
Versatile Processing Methods
Supports cutting, deep engraving, and surface marking, as well as processing of highly complex patterns and graphics.
Comprehensive Software Compatibility
Features an English operation interface with support for multiple file formats, including PLT, BMP, JPG, AI, DXF, and others, ensuring broad compatibility with different design software.
Machine Parameters
| Machine Name | 250w 800x800mm LGP (light guide plate ) Dynamic Focusing CO2 Laser Marking Machine |
| Model No. | PR-CO2RF250 PR-CO2RF350 |
| Laser Power | 250w 350w |
| Laser Wave Length | CO2 Laser 10.64μm |
| Laser Source | Coherent Laser Tube or Rofin Laser Tube |
| Working table | Marble working table |
| System Software | EZCAD |
| Support File Format | PLT, BMP, DXF, JPG, TIF, AI,etc. |
| Power Adjustment Range(%) | 0-100% |
| Marking Speed | ≤10000mm/s |
| Repeated Accuracy | ±0.01mm |
| Laser Repetition Frequency | 1kHz~100kHz |
| Min.Line Width | 0.17mm |
| Min.Letter | 0.3mm |
| Marking Area | ≤800*800mm （Can be customized） |

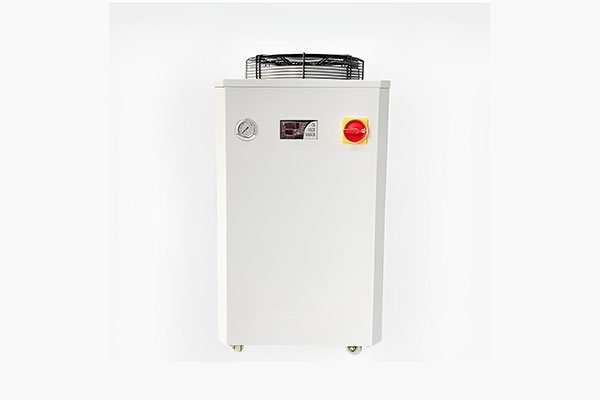

| Cooling Mode | Circulating Water Cooling |
| Power Supply | AC220V / AC380 50Hz/60Hz |
| Overall Power Consumption | 250w model 7kva / 350w model 9kva |
| Application | Light guide plate, Plastic, wood, leather, textiles, stone, ceramic and so on. |
| Machine Size | 1.68*1.53*1.85m / 1.77*1.53*1.85m |
| Machine Weight | 470kgs / 500kgs |

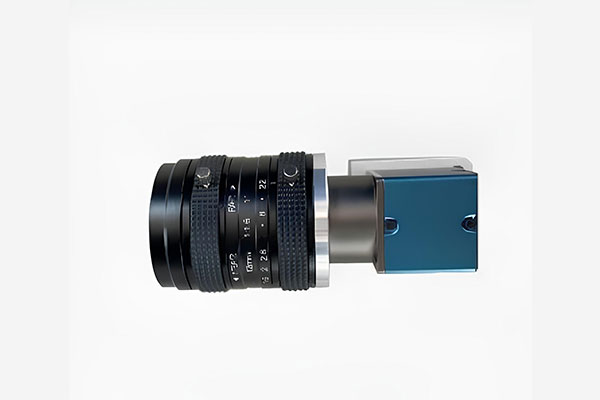

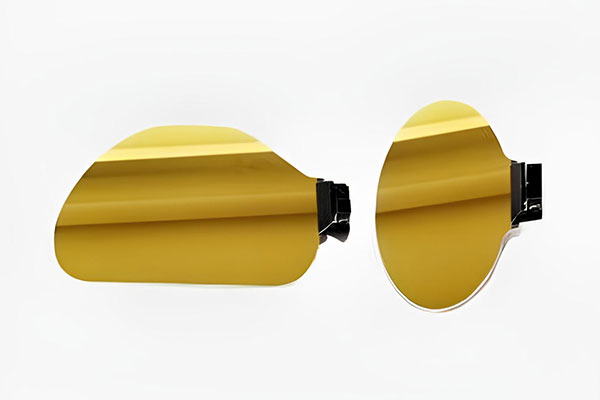

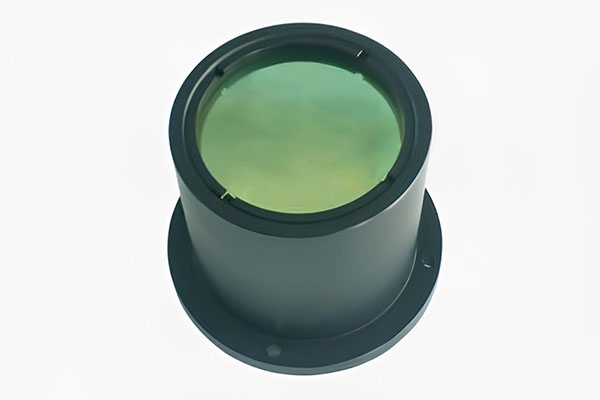

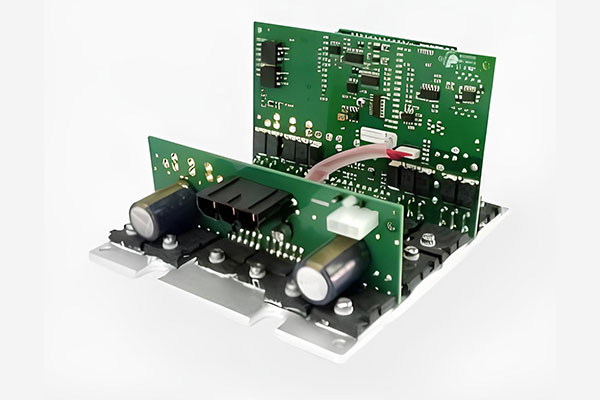

Main Configurations

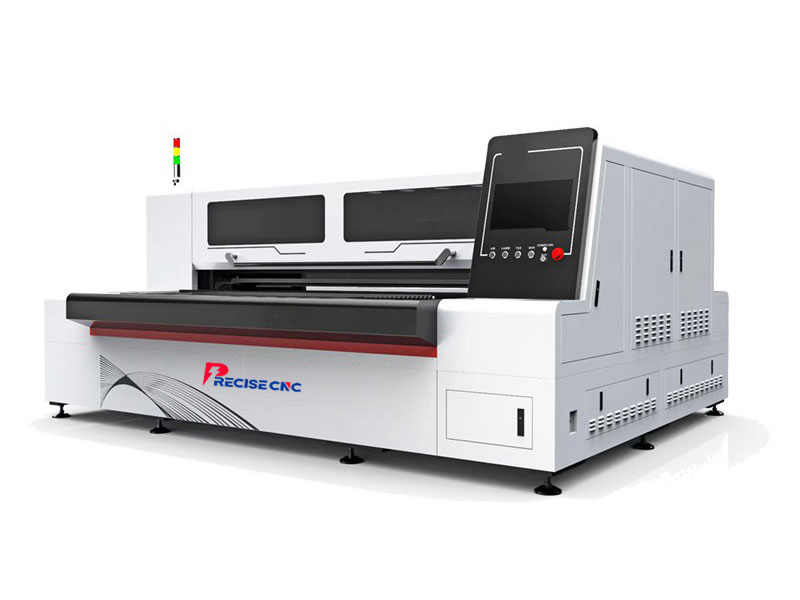

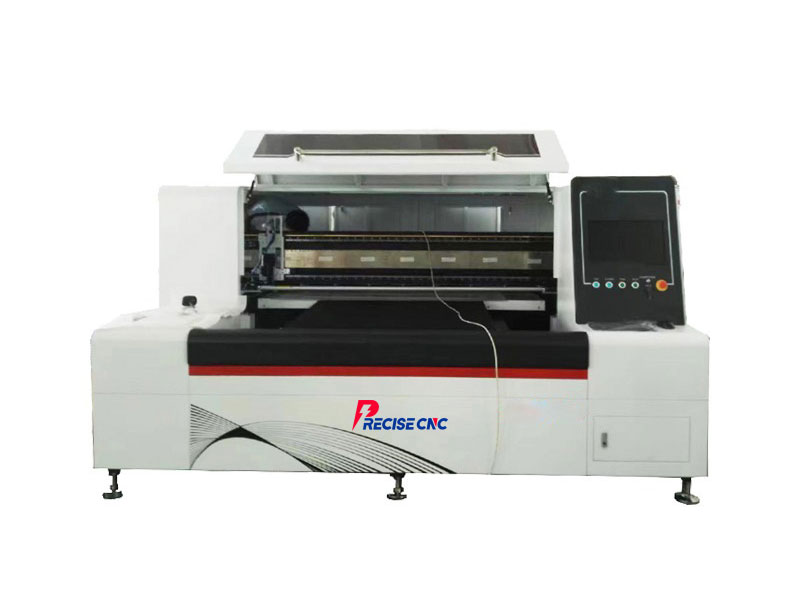

Other Similar Model
Comparison of Laser Etching and Other Processes
Samples
Application
Advertising Industry
Packaging Industry
Advertising & Crafts Industry
Electronics & Plastics Industry
Textile & Apparel Industry
Stationery & Office Supplies Industry
Customer Testimonials
FAQ – 250w LGP Large format CO2 Laser Marking Machine
A: The desktop CO2 laser marker can mark a wide range of non-metals like wood,glass, leather, acrylic, ABS, PVC, PC, and PC+ABS and so on.
