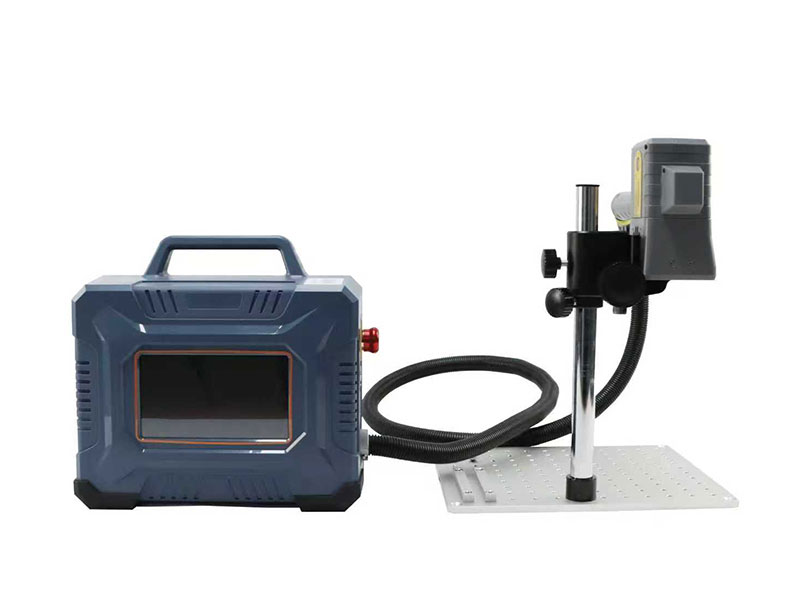

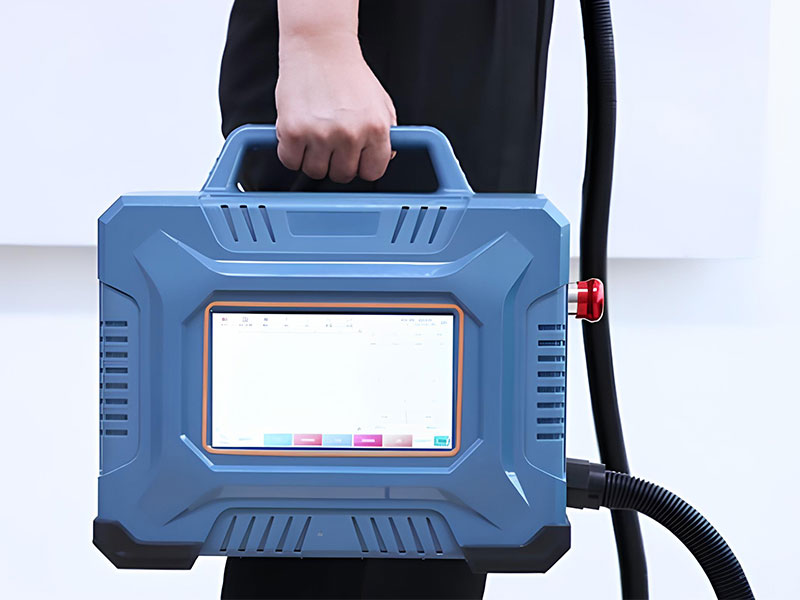

Product Name: 20w 30w 50w Handheld Portable Laser Marking Machine For Metal Marking
Model: PR-H20 PR-H30 PR-H50 PR-H60
Laser Power: 20w 30w 50w 60w
Application: Aerospace components，Automotive Manufacturing，Food Packing Industry，Jewelry Industry，Medical Devices，semiconductor Industry
Inquire
General Introduction
Tired of cluttered workbenches and slow, inconsistent marking results?
PRECISE CNC’s handheld type fiber laser marking machine has high photoelectric conversion efficiency, fast marking speed, air-cooled design, compact structure, good output beam quality, high reliability, no consumables, maintenance-free, and long service life.
Adopting Maxphotonics fiber laser source, adopting the latest and most reliable international structure, small size, low power consumption, no high-voltage power supply, and no large water cooling system. Close to ideal beam, USB interface, output control, optical scanning system, high laser repetition frequency, fast speed, no distortion.
Our handheld laser marking machine can mark various metal materials, such as iron, copper, aluminum, gold, silver, etc., as well as non-metallic materials such as PC, ABS, PVC, PC+ABS, etc.
Main Feature
More Power, More Precision
Boosted to 60W max power for faster marking speed and higher accuracy.
Safe and Compliant

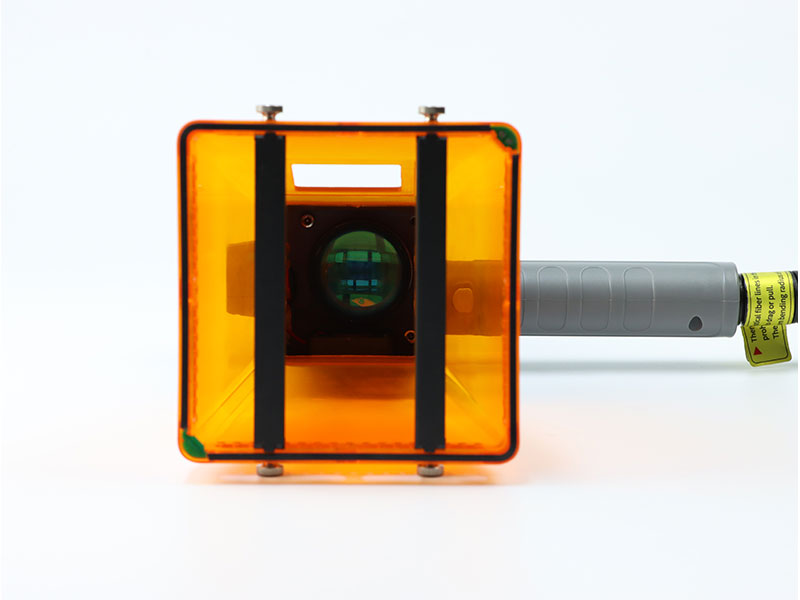

Marking head features a fully enclosed design that meets EU CE safety standards.

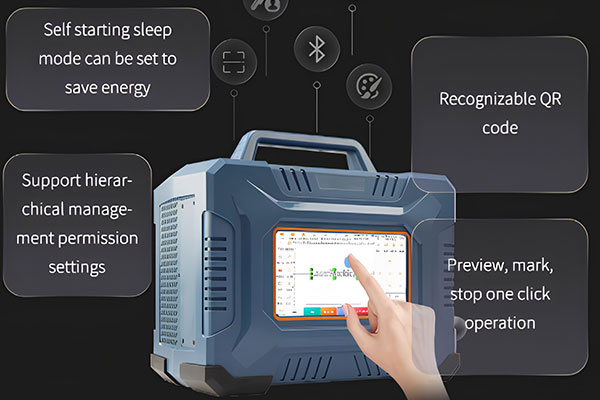

Smart & Simple Operation
Powered by a self-developed Linux system with a 7-inch HD capacitive touchscreen — responsive and user-friendly.
Flexible Software Integration
Supports secondary development; seamlessly connects with MES, ERP, and PLC systems.
Multi-device Control
Works with external mouse, keyboard, scanner, and computer — even supports control via mobile app.
Battery That Keeps Up
Replaceable lithium battery design allows charging while in use — no downtime.
Machine Parameters
| Machine Name | Handheld Portable Fiber Laser Marking Machine |
| Material of complete machine | Environmental engineering plastics |
| Model No. | PR-H20 PR-H30 PR-H50 PR-H60 |
| Laser power | 20w 30w 50w 60w |
| Laser type | Fiber laser source |
| Wavelength | 1064nm |
| Maximum pulse energy | ≥1.4mj |
| Marking method | High precision dual dimensional scanning method |
| Cooling system | Foreced air cooling |
| Operating system | Self-developed marking software based on Linux system |
| Operation interface | Embedded laser intelligent scanning system, embedded 7-inch capacitive screen |
| App | Support |
| Special features | Reserved secondary development interface, software can be developed for secondary integration with ERP and MES systems |

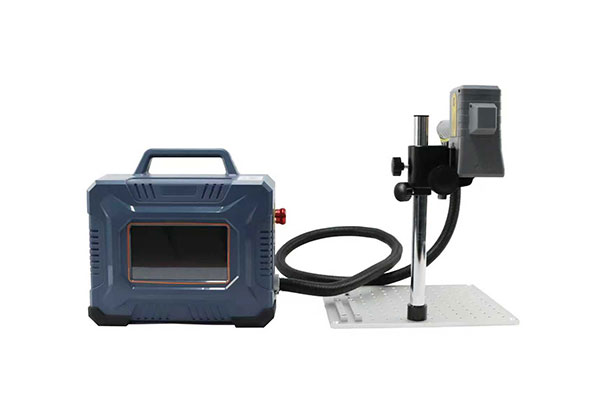

| Marking machine lifting platform | Optional |

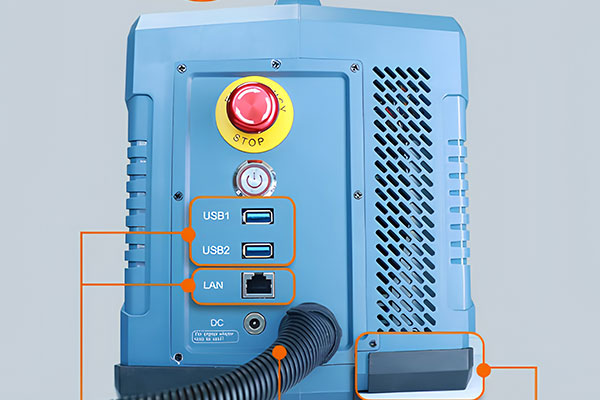

| Interface configuration | Dual USB ports, single network port, power interface, built-in Bluetooth WIFI |
| Circumscribed | Can be connected to an external keyboard, mouse, QR code scanner, monitor,etc. |
| Interface | Built in Bluetooth WIFI |
| Frequency adjustment range | 45~170Khz (Adjustable) |
| Marking and engraving type | Integration of dot matrix and vector (Both dot matrix and vector can be printed) |
| Marking scope | Default 100*100mm (50*50mm 150*150mm optional) |
| Marking depth ( e.g., stainless steel) | 20w 0.05mm; 30w 0.07mm; 50w 0.15mm; 60w 0.2mm |
| Cable length | 1.75m |
| Locate mode | Red light positioning |
| Support marking types | Text, QR codes, vector graphics, digital dates, bitmap, geometric shapes, etc. can be combined and edited, supporting hand drawn, spiral line, and Lissajous curve drawing |
| Support importing formats | Jpg, png, bmp, svg, plt, dxf, excel, txt, Arcode/QR code, etc. |
| Cleaning mode | Supports 8 scanning modes |
| Anti repeat marking function | Support , For example, for some vehicle identification numbers or asset numbers marking jobs, they need only one time marking, it can prevent the numbers from being duplicated marking you wrongly touched again by pop-uping a alert window to you on software. |
| System language support | English, Japanese, Russian, Italian, Spanish, Portuguese, Korean, French, Arabic, German, Polish, Czech, Thai, etc. |
| Barcode / QR code | EAN13, EAN128, PDF417, CODBAR, UPCA, UPCA_CHK, UPCE_CHK, DataMatrix,QRCode,etc. Support barcode size, barcode level can be set, support point mode, circle mode, rectangle mode, etc. |
| Support marking materials | Stainless steel, carbon steel, aluminium oxide, aluminium alloy, aluminium, titanium, brass, copper, iron, gold, silver hard alloy, painted metal, other metals, acrylic, PC, ABS, PVC, PC+ABS, leather, stone, ceramic, plastic, painted wooden boards,etc. |
| Supply voltage | 90v~240v, 50hz/60hz |
| Power supply mode | Plug in / battery (Supports use while charging) |
| Battery capacity | ≥14500AH |
| Maximum power consumption | 200w |
| Fully charged and powered continuous working hours | 4 hours |
| Charging time | ≤2 hours |
| Ambient relative humidity | 30~85 RH (No condensation) |
| Adaptive temperature | 0~40℃ |
| Laser lifespan | Around 100,000 hours |
| Laser source | Maxphotonics |
| Galvo Head | SINO-GALVO Brand |
| F-theta Lens | HUAYING |
| Machine net weight | Lithium battery model: 9~12kgs Power supply model: 7~10kgs |
| External dimensions | Host machine 314*213*290mm Handheld gun head 145*290*250mm |
| Package size | 450*450*450mm |
| Package gross weight | 8kgs Export Wooden Case |
Main Configurations

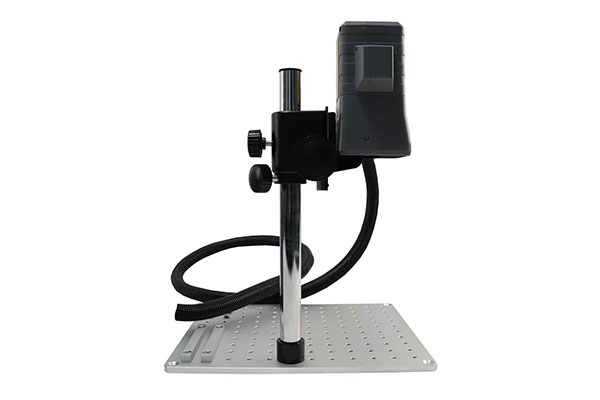

Machine Optional Parts
Other Similar Design Models

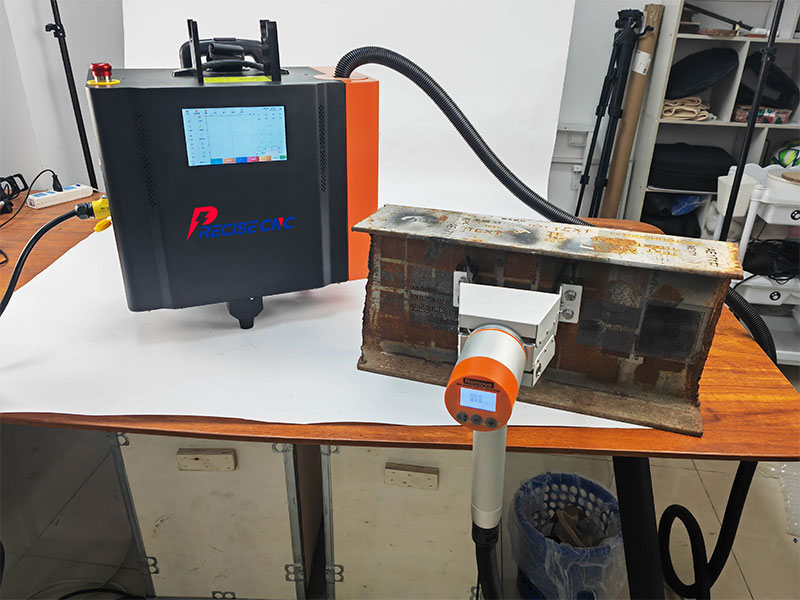

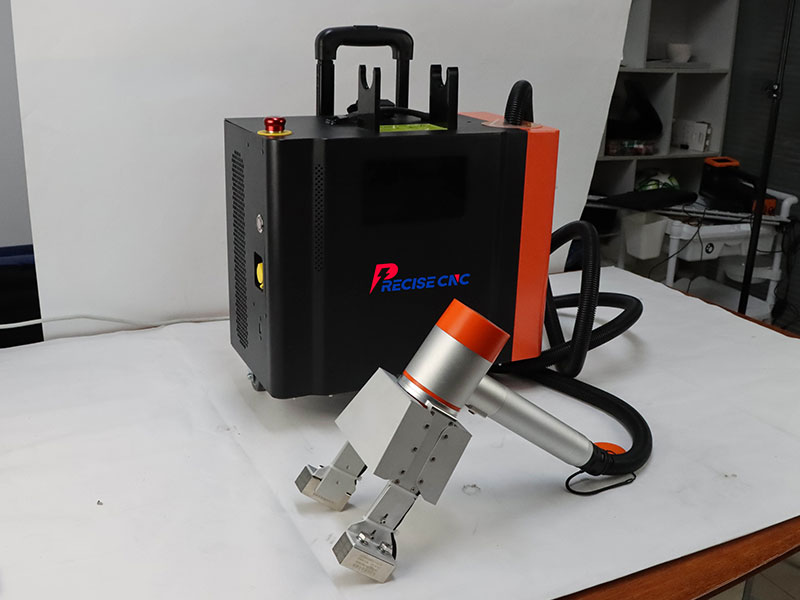

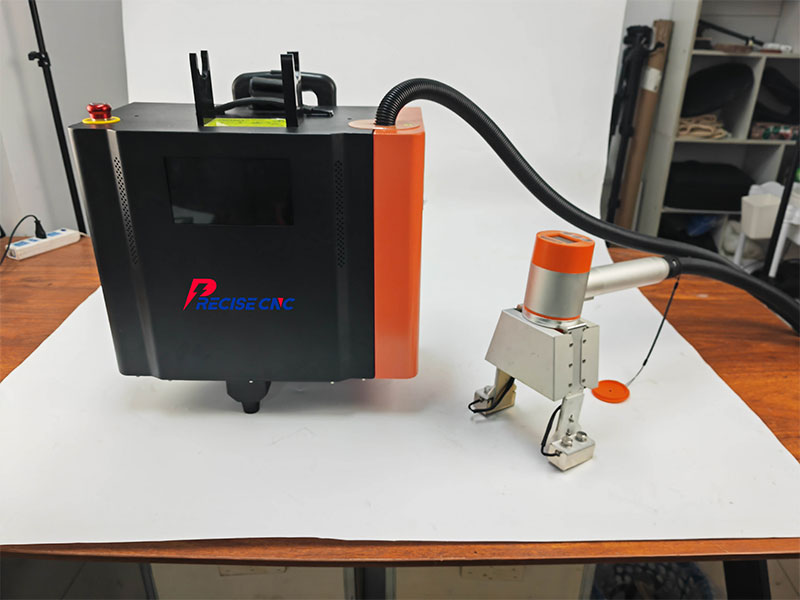

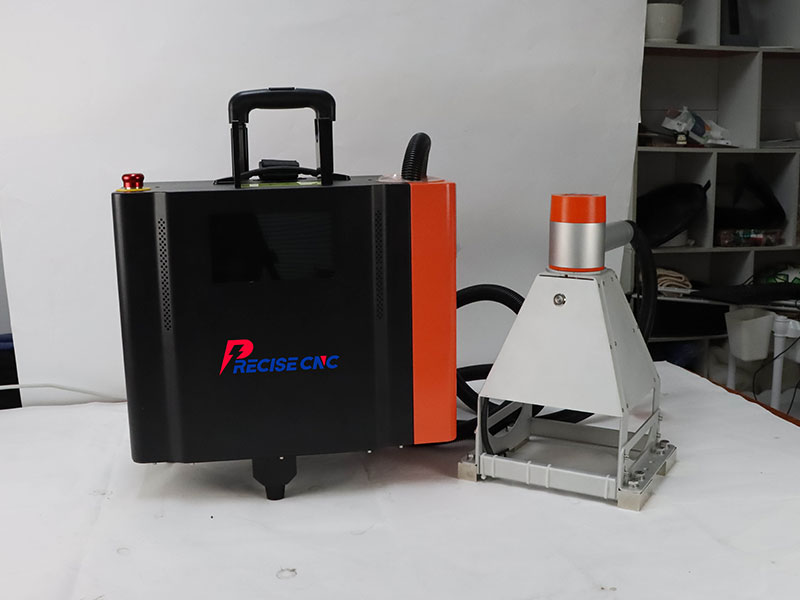

200w 300w High laser power handheld portable laser marking machine （Also have laser cleaning function）
Marking and Cleaning All In One
Equipment Characteristics:
• Smaller volume; Modular structure design, air-cooled laser structure, handheld head, control system, power supply unit composition, Higher degree of integration.
• Small footprint, easy to transport, pull rod design, equipment bottom installation wear-resistant silent wheel, easy to carry and move.
• Electromagnet adsorption type fixed focus frame, easy to mark metal materials and material surface adsorption fixed, free hands, deep engraving.
• Suitable for: powertrain, automobile body, transmission, petroleum machinery, engineering machinery, engine block, body sheet metal parts VIN marking.
• Suitable for deep carving processing of various materials, marking depth 0.05mm-3mm.
• Laser gun head is smaller, lighter weight, can be handheld, fixed marking, with the robot to achieve automatic marking, easy to integrate.
• The software supports secondary development and can be connec ted with MES, ERP and other systems.
• External sweep code grab, one key marking.
Samples
Application
Medical Devices
Semiconductor Industry
Jewelry Industry
Food Packing Industry
Automotive Manufacturing
Aerospace-Components
Customer Testimonials
FAQ – Handheld Portable Fiber Laser Marking Machine
A: The desktop fiber laser marker can mark a wide range of metals such as stainless steel, aluminum, copper, brass, gold, and silver. It can also mark some non-metals like ABS, PVC, PC, and PC+ABS.
