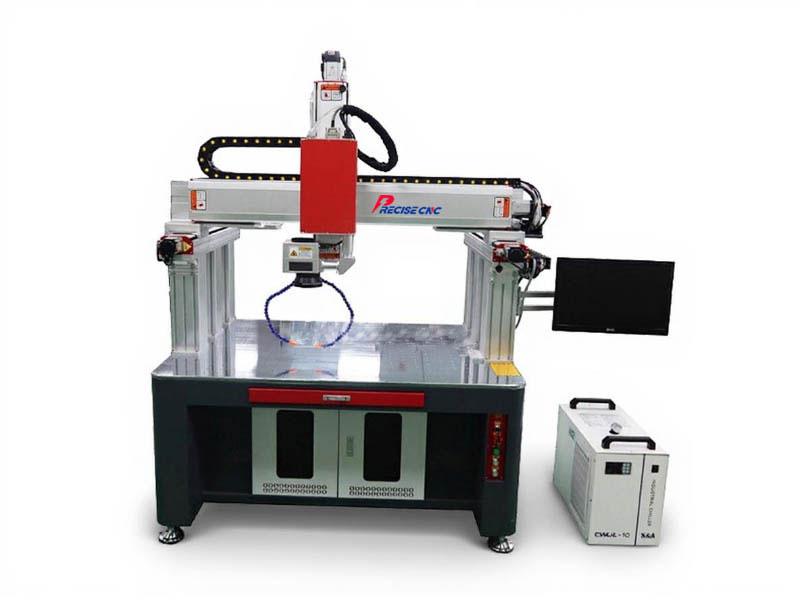

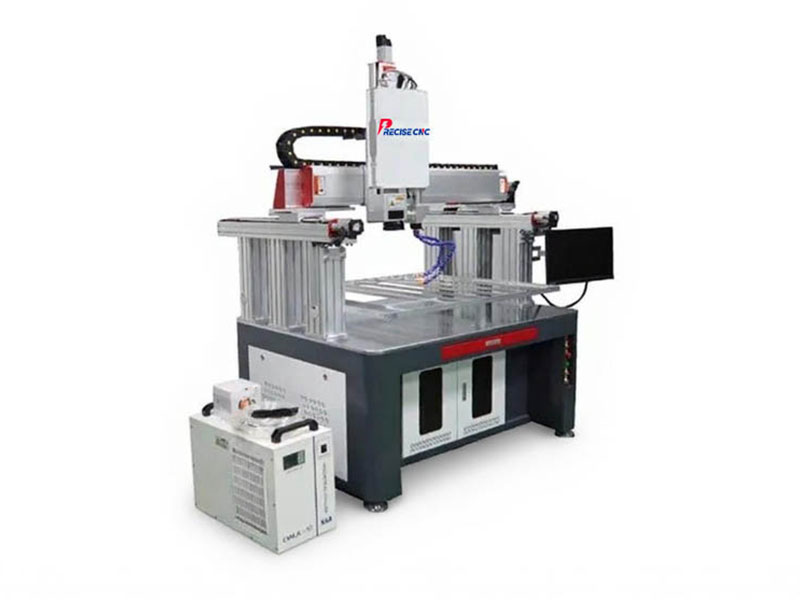

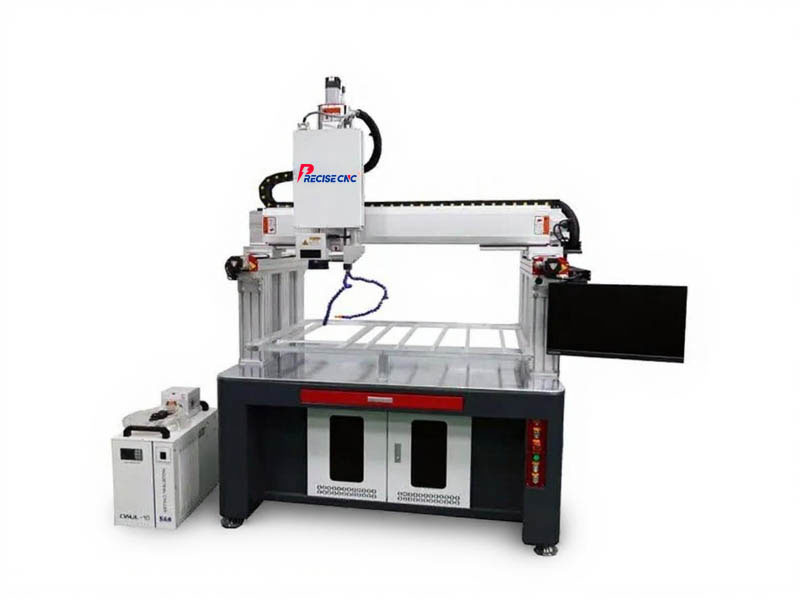

Product Name: Glass Mirror Plate and Tube Hole Laser Drilling Machine
Model: MLDA-120,MLDA-200
Laser Power: 120W/200w
Application: Smart mirror industry,Smart home appliances,3C industry ,Optical and medical components
Inquire
General introduction
Our 900*600mm Gantry type mirror glass laser drilling machine is engineered specifically for glass mirror plates and tubes, delivering smooth, accurate results with every pass.
Powered by a high-efficiency fiber laser, it handles intricate detailing with ease—perfect for demanding industrial applications.
Built on a robust gantry structure, the machine ensures long-term stability and consistent output, making it your reliable partner for both drilling and engraving tasks.
Durable, efficient, and purpose-built—this machine is the answer to your high-precision glass processing needs.
Main Feature

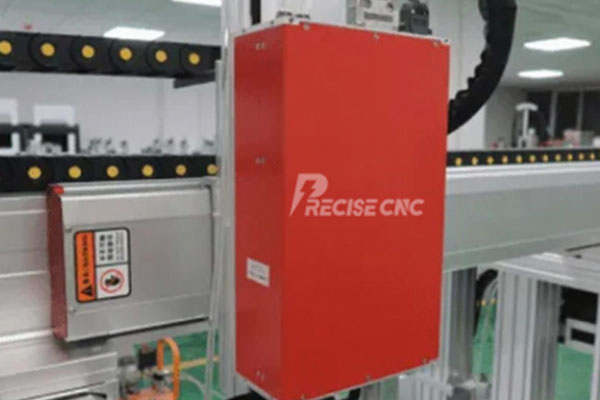

Powerful Fiber Laser Source
Equipped with a JPT M8 120W MOPA fiber laser, this machine ensures stable and precise power delivery. The adjustable pulse duration and frequency offer fine-tuned control for high-precision glass drilling.
High-Precision Performance
Ensures accurate positioning and drilling depth, effectively reducing the chances of glass chipping or cracking during processing.
Stable Gantry Structure
The robust gantry design provides superior operational stability, delivering consistent results across the entire working surface.
Spacious Working Area
Designed to handle diverse production needs, the machine supports a large working size—typically around 900mm x 600mm—suitable for various glass shapes and thicknesses.
Machine Parameters
| Type specification | MLDA-120 MLDA-200 |
| XY traveling size | X 900mm Y 600mm |
| Laser source | GZ/JPT/GS Mopa |
| Wave length | 1064nm |
| Laser repetition frequency | 1-4000kHz |
| Pulsed width | 6-200ns |
| Laser power | 120W/200w |
| Field lens | 170*170 mm |
| Glass cutting size | 0.5- 100mm diameter0.1- 10mm thicknessIt is up to glass material. |
| Laser sources | Fiber module |

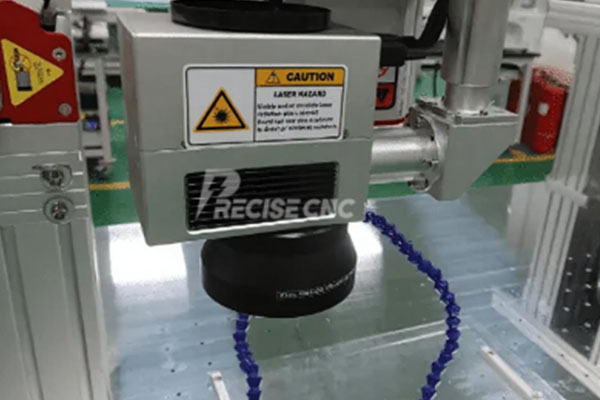

| Laser Head | Scanning head |
| The minimum focus facula diameter | 20μm |
| Repeated accuracy | 0.0025mm |

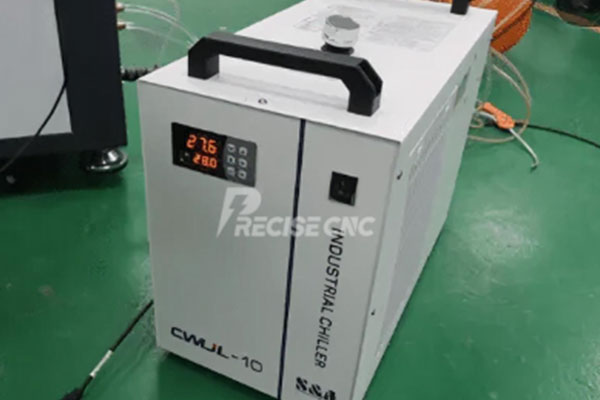

| Cooling ways | Water Cooling |
| Power supply | AC220V/ 50Hz |
| Support format | PLT, BMP, DXF, JPG, TIF, AI etc |
| Package | Standard Crate for export |

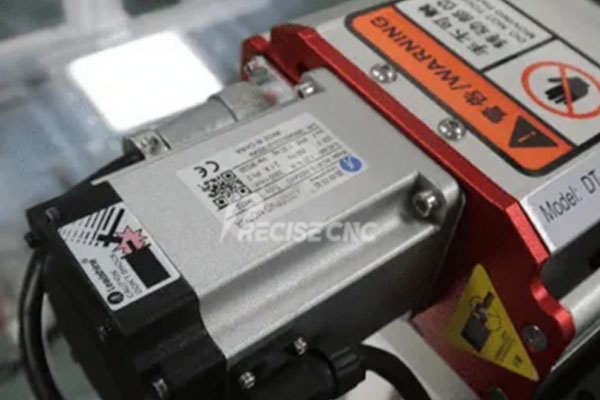

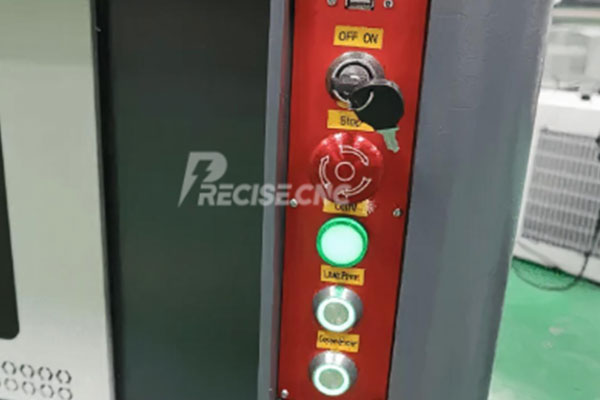

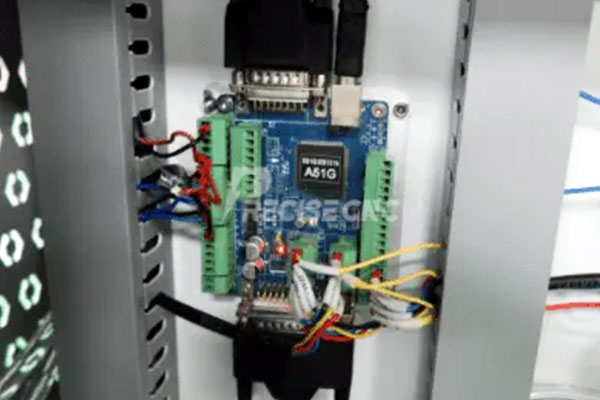

Main Configurations

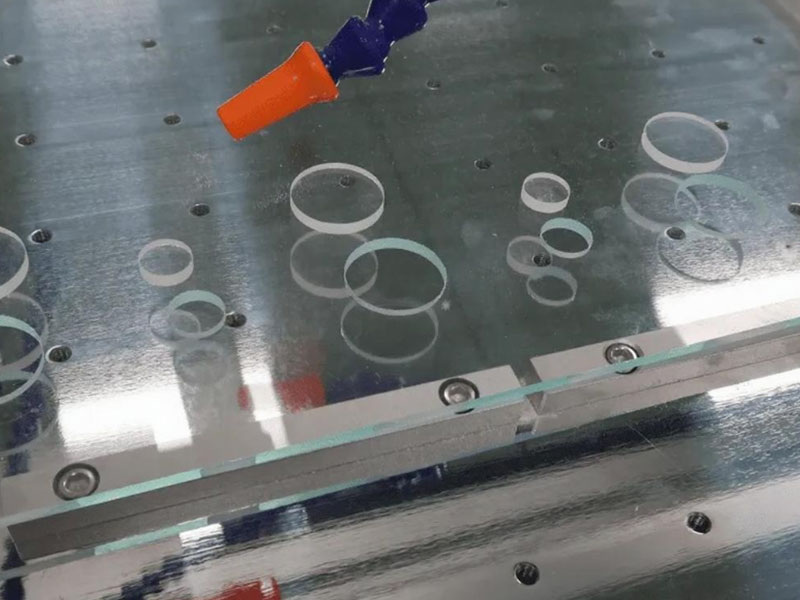

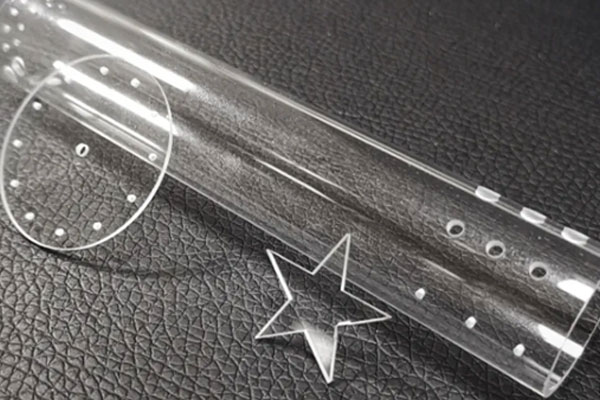

Glass Mirror Plate and Tube Hole Laser Drilling Machine Samples

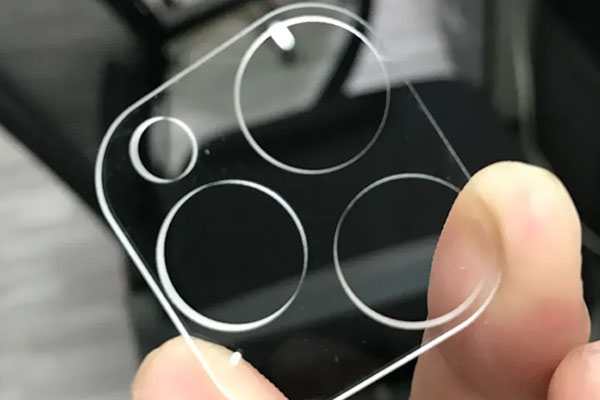

Glass Mirror Plate and Tube Hole Laser Drilling Machine Applications
Glass Mirror Plate and Tube Hole Laser Drilling Machine Testimonials
Glass Mirror Plate and Tube Hole Laser Drilling Machine FAQs
A: Compatible with various glass materials, including:
Float glass
Mirror glass
Ultra-clear (low-iron) glass
Electronic glass (e.g., touch panel cover glass)
Note: Not suitable for tempered or laminated glass.
