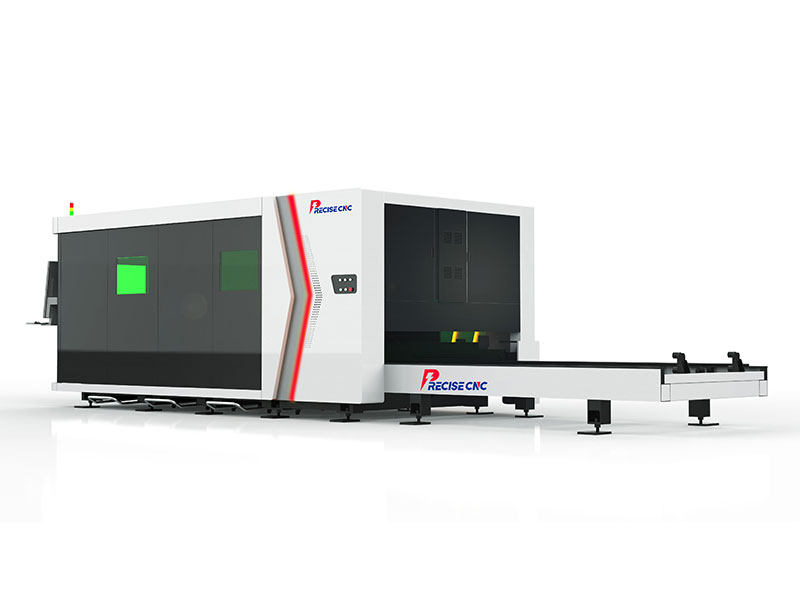

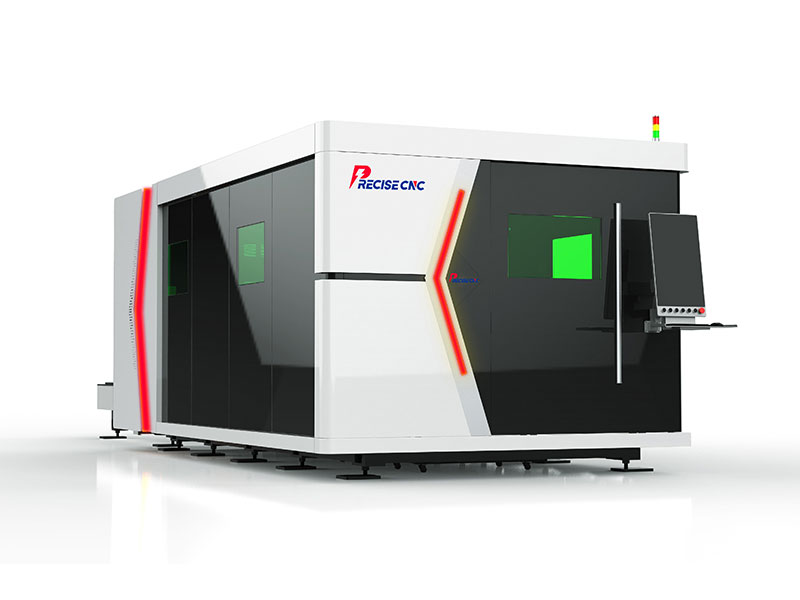

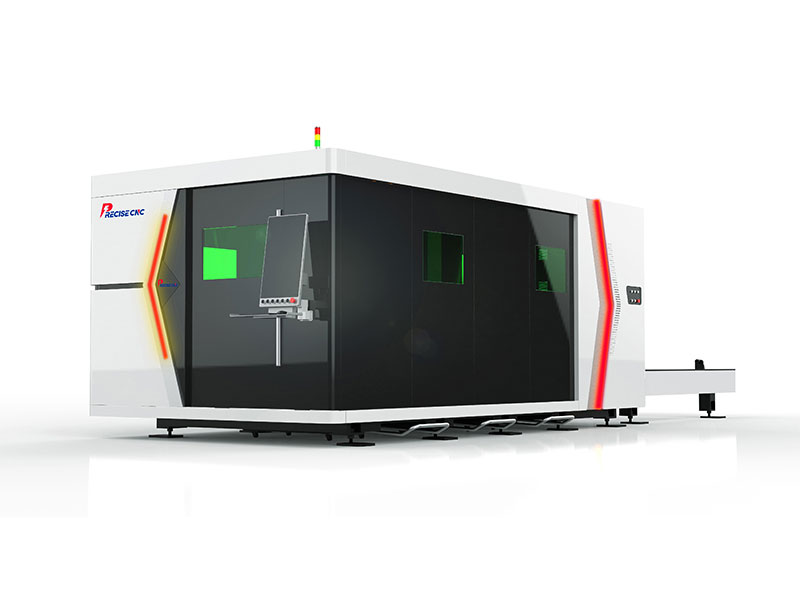

Enclosure Protection Metal Fiber Laser Cutting Machine
Enclosure Protection Metal Fiber Laser Cutting Machine
Enclosure Protection Metal Fiber Laser Cutting Machine
Enclosure Protection Metal Fiber Laser Cutting Machine
Enclosure Protection Metal Fiber Laser Cutting Machine
Enclosure Protection Metal Fiber Laser Cutting Machine

Product Name: Enclosure Protection Metal Fiber Laser Cutting Machine

Model: PR-EP3015 ( PR-EP4020/PR-EP6025/PR-EP12525 optional )

Laser Power: 3000w (6000w / 12000w / 20000w / 30000w optional)

Working Range: 3000*1500mm (4000*2000mm / 6000*2500mm / 12500*2500mm optional and can be customized)

Application: Kitchenware Manufacturing,Agriculture Machinery,Furniture Manufacturing,Architecture Industry,Automotive Manufacturing,Aerospace Industry,Shipbuilding Industry,Railway Facilities,Petroleum Industry,Sports Equipment

Inquire
Product Specification
Model No.PR-EP3015 ( PR-EP4020/PR-EP6025/PR-EP12525 optional )
Working Area3000*1500mm  (4000*2000mm/6000*2500mm/12500*2500mm optional and can be customized)
X Y Z Axis Stroke1530*3050*300mm
Laser Power3000w (6000w / 12000w / 20000w / 30000w optional)
Maximum Acceleration0.8G
X, Y Axis Positioning Accuracy±0.03mm
X, Y Axis Repeat Positioning Accuracy±0.02mm
Power Requirement380V 3PH 50/60HZ
Cutting AbilityCarbon Steel: 22mm  Stainless Steel: 10mm  Aluminium: 8mm  Brass: 6mm  3000w
Total Weight5000kgs
Main Configurations
ItemBrandBrand LocationSpecification
Laser SourceMaxphotonicsShenzhen, China3000W (6000w, 12000w optional)
Laser Cutting SystemCypcut bus systemShanghai, China2000E
Laser Cutting HeadCypcutShanghai, ChinaBLT310
Lathe BedPlate welding Jinan, ChinaStandard
CrossbeamPRECISE CNCJinan, ChinaIntegrated aviation aluminum
Servo SystemCypcut/InovanceShanghai/Shenzhen, ChinaStandard
ReducerTECHMECHShanghai, ChinaFlange type
Guide RailPEK/YYHItaly30mm, 20mm
Gear and RackPEK/YYHItaly2M
Electrical ComponentHoneywellUSAIndustrial grade
Pneumatic DeviceAVENTICS/SMCGermany/JapanIntegrated type
Water ChillerHANLIWuhan, China3000W

Sheet Metal Laser Cutting Machine Features and Advantages

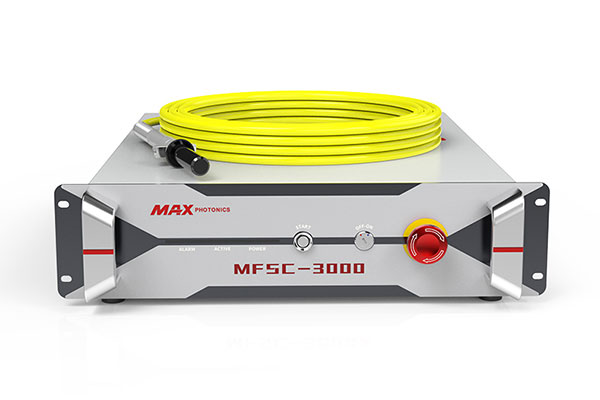

  • MFSC-3000W Maxphotonics laser source
  • BLT 310 Laser cutting head
  • FSCUT2000E cutting system
  • HANLI water chiller 3000w
  • Integrated aviation aluminum crossbeam
  • Full strip steel
  • Guide rail press block
  • Oil groove
  • Plate welding lathe bed
  • Fire-resistant brick
  • High and low pressure protector
  • Big load-bearing leg and Big anchor bolts
  • Z axis linear module
  • Crossed knife strips
  • Separation of AC and DC power supplies

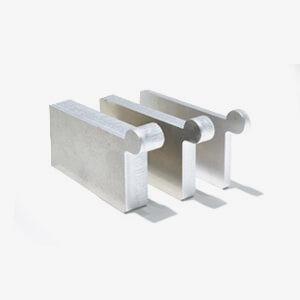

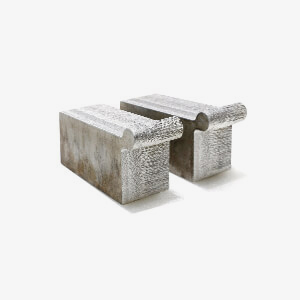

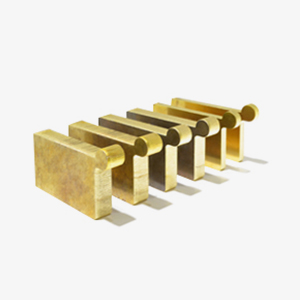

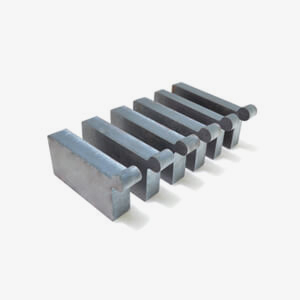

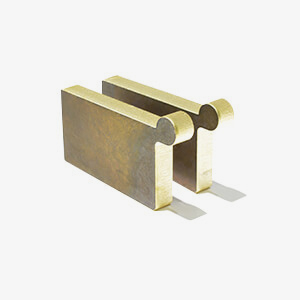

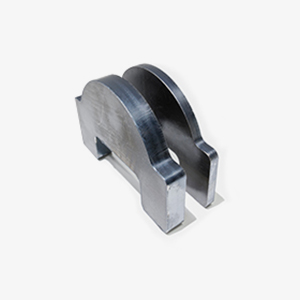

Fiber Laser Cutting Machine Samples

1
5
6

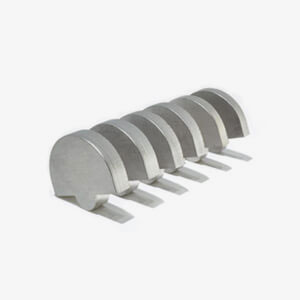

stainless-steel-fiber-laser-cutting-machine
3
2
4

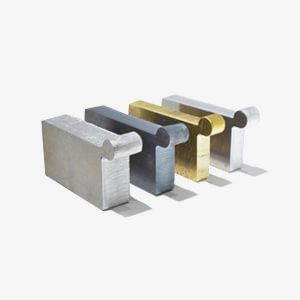

metal-fiber-laser-cutting-machine

Fiber Laser Cutting Machine Applications

6-1
Aerospace Industry
6-2
Agriculture Machinery
6-3
Architecture Industry
6-4
Automotive Manufacturing
6-5
Petroleum Industry
6-6
Railway Facilities
Furniture-Manufacturing

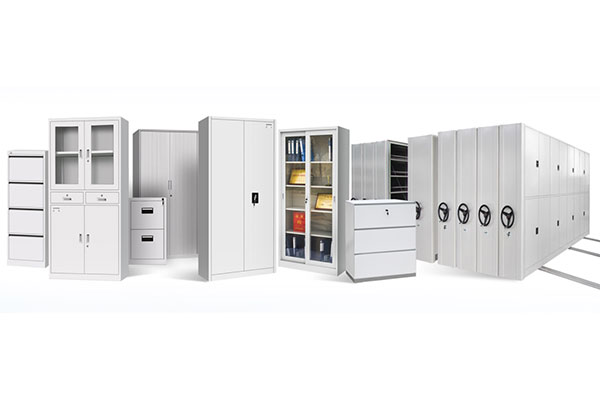

Furniture Manufacturing
Kitchenware-Manufacturing
Kitchenware Manufacturing
Shipbuilding-Industry
Shipbuilding Industry

Fiber Laser Cutting Machine Testimonials

1
5
2
3
12

Fiber Laser Cutting Machine FAQs

Q: What's the working principle of fiber laser cutting machine?

A: The working principle of a fiber laser cutting machine is based on the use of a high-powered laser beam to melt, burn, or vaporize the material being cut. Here’s a breakdown of the process:

1.Laser Generation: The machine generates a laser beam using a fiber optic laser source. The laser source typically uses a fiber laser (such as YAG or ytterbium-doped fiber) that is pumped with light from diodes. The laser beam is then transmitted through the fiber optic cable.

2.Beam Focusing: The laser beam is directed and focused onto the material using a set of mirrors and a focusing lens. The focused beam has very high energy density and is able to concentrate on a small spot on the material’s surface.

3.Material Interaction: When the laser beam hits the material, it rapidly heats up the surface, causing the material to melt, burn, or vaporize. The cutting area is typically assisted by auxiliary gases (like nitrogen, oxygen, or compressed air), which help blow away the molten material and improve the cut quality.

4.Cutting Process: As the laser beam moves across the material, the heat melts or vaporizes the material in the path of the beam. The cutting head is typically controlled by a CNC system, which precisely guides the laser beam to cut along the desired path.

5.Cooling: During the cutting process, the material around the laser-cut area cools and solidifies quickly, allowing for clean, precise cuts with minimal distortion.

Fiber laser cutting machines are favored for their high cutting precision, speed, and efficiency, particularly when cutting metals such as stainless steel, aluminum, and carbon steel. The fiber laser’s ability to focus energy tightly on the cutting area results in high-quality, narrow kerf widths, and minimal heat-affected zones (HAZ).

Q: How do auxiliary gases such as oxygen and nitrogen enhance the laser cutting process?

Q: What materials can be cut by fiber laser metal cutting machine?

Q: What is the maximum thickness of metal that a fiber laser can cut?

Q: Can laser metal cutting machines cut through rusty iron plates directly?

Q: What is the expected lifespan of a laser metal cutting machine, and what warranty is provided?

Q: What happens if there is a sudden power outage during processing, and how can laser processing continue?

Q: What are the wear parts of a laser metal cutting machine?
