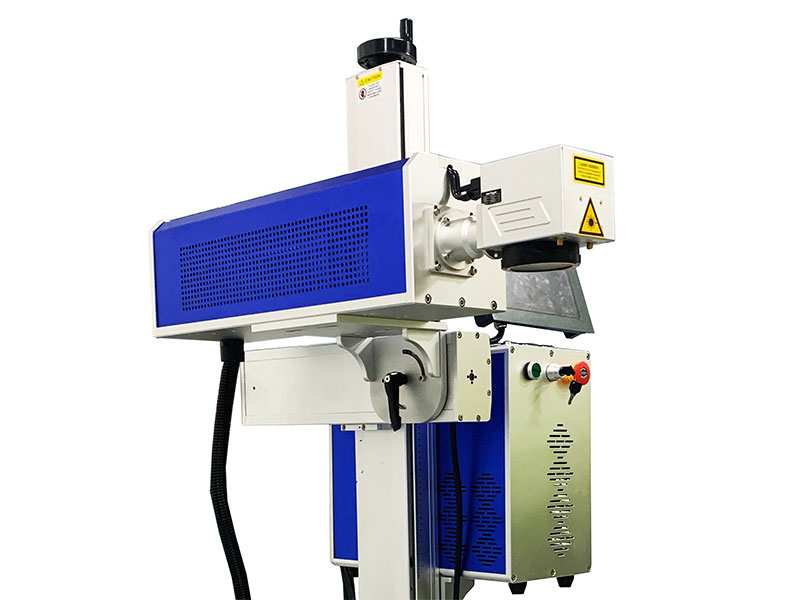

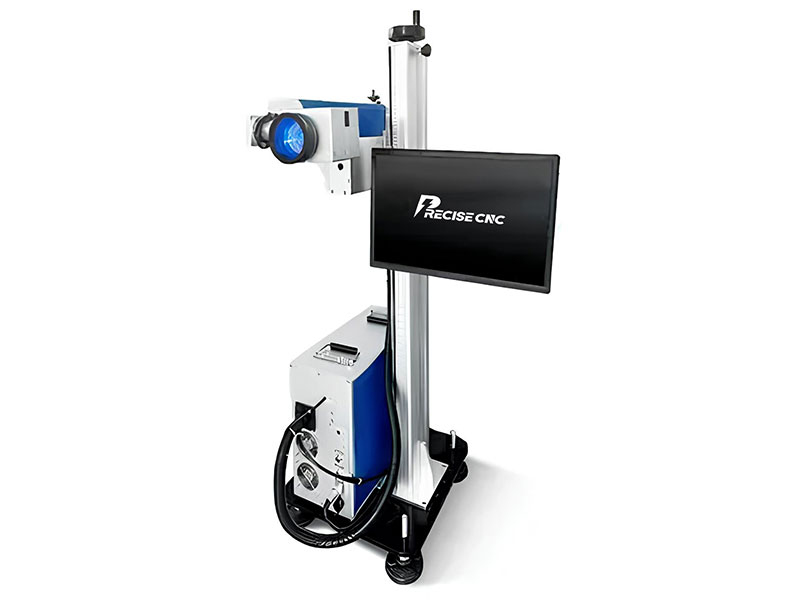

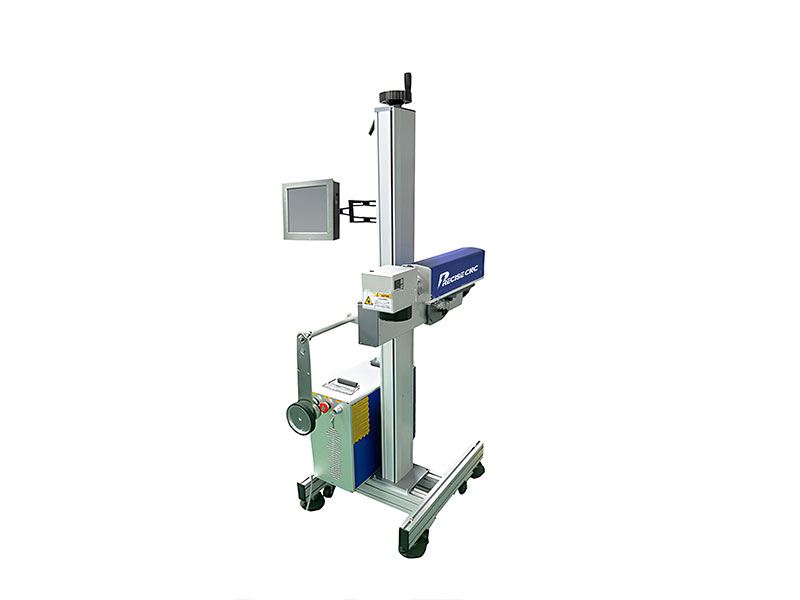

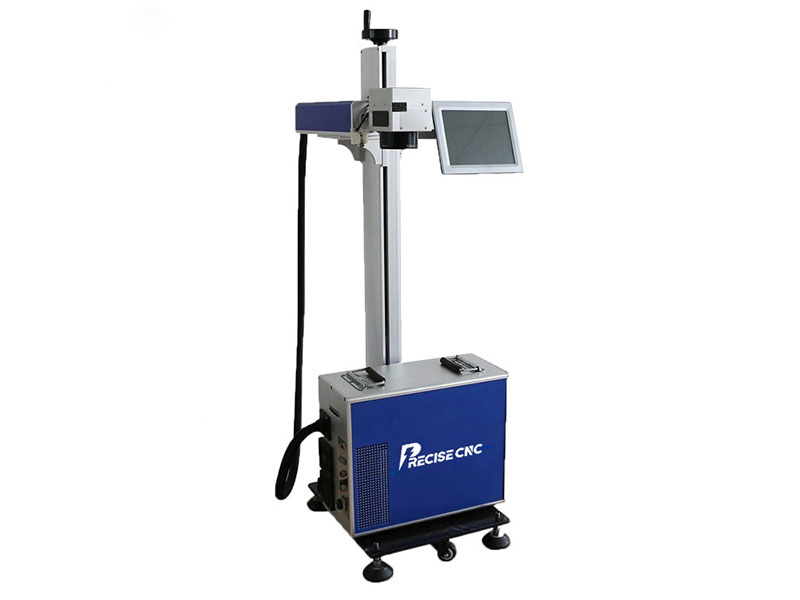

Product Name: Flying Online Laser Marking Machine
Model: PR-F20 PR-F30 PR-F50 PR-60 PR-F80 PR-F100 PR-F200 PR-F300
Laser Power: 20w 30w 50w / 40w 60w / 5w 10w 20w
Application: Stainless steel, aluminum, alloy, brass, silver, gold, titanium, iron, PC, ABS, PVC, PC+ABS, leather, stone, ceramic, plastic,wood, bottle.,etc.
Inquire
General Introduction
An online flying laser marking machine is specialized equipment designed to perform marking on products or materials in motion along a production line. It typically consists of a laser source, optical system, and control unit, and can be adapted to process a wide range of materials including metals, plastics, ceramics, and others. The marking is achieved by focusing a high-energy laser beam onto the material surface, permanently altering it through ablation or surface modification. The“flying”capability refers to its ability to synchronize marking with moving products, ensuring high-speed and efficient processing without interrupting production flow. This system can generate various types of marks such as serial numbers, barcodes, logos, and other symbols. Due to its precision, efficiency, and adaptability, it is widely applied in industries including electronics, automotive, aerospace, medical devices, and more.

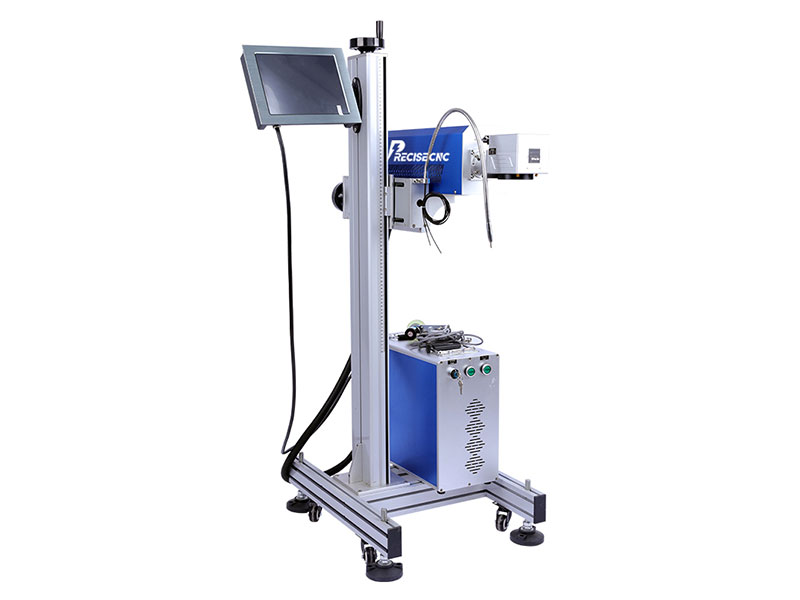

There are several different types of online flying laser marking machines, including fiber laser, CO2 laser, and UV laser machines. Each type of machine uses a different type of laser and is best suited for marking certain types of materials.
Main Feature
Boost Productivity – Ultra-fast marking speed keeps your production line moving.
Full Control – Laser power is software-adjustable, giving you precision at every step.
Lasting Impact – Crisp, permanent markings with flawless results every time.
Built-in Security – Automatically generates anti-counterfeiting codes for product protection.
Cost-Efficient – No consumables, no wear parts, minimal maintenance, and low operating cost.
Flexible Performance – Handles both dynamic (on-the-fly) and static marking seamlessly.
Suitable for mass production line marking;
Optional high-quality conveyor belt;

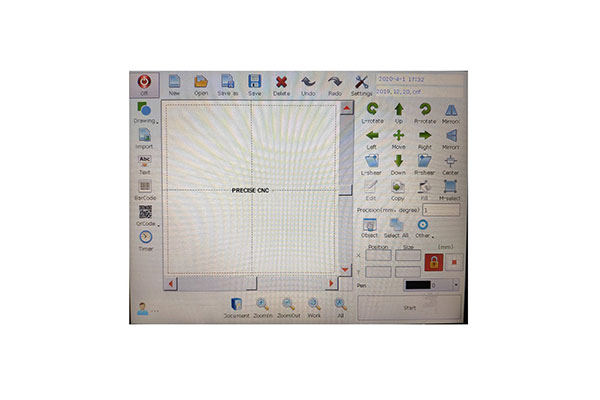

Online flying marking software;
Work plate can be adjusted up and down;
24 hours continuous processing;
High efficiency elector-optical conversion;
Ten years of life time, cost savings, increase interest;
Simple operation;
Supports 2D encoding, support any computer operating system and various languages.
Machine Parameters
| Machine Name | Flying Online Laser Marking Machine |
| Model No. | PR-F20 PR-F30 PR-F50 PR-60 PR-F80 PR-F100 PR-F200 PR-F300 |
| Fiber Laser / CO2 Laser / UV Laser | |
| Laser Power | 20w 30w 50w / 40w 60w / 5w 10w 20w |

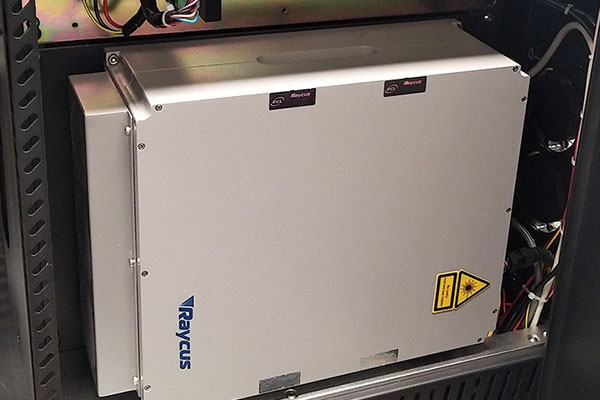

| Laser Source | Raycus / Max / JPT / IPG |
| Marking function | All kinds of Chinese and English fonts, vector graphics PLT, DXF file, BMP file, serial number, bar code and two-dimensional code, can be marked in the static plane arc surface, cylinder and flying object |
| Operating System | WIN XP operating interface, support PLT, PCX, DXF, BMP and other file formats, directly use SHX, TTF font library |
| Power Adjustment Range(%) | 0-100% |

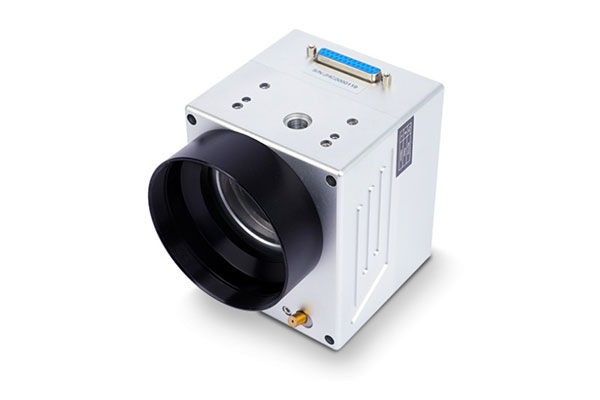

| Galvanometers | SINO-GALVO / SCANLAB Brand |

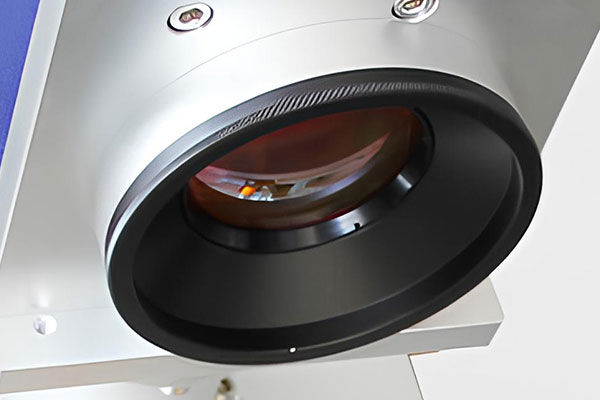

| F-theta Lens | Wavelength Brand |
| Flying Marking System | EZCAD / CLEFINE / EARAIN /BSL |
| Marking Speed | 2500mm/s-20000nm/s |
| Repeated Accuracy | ±0.005mm |
| Minimal Width | 0.01mm |
| Minimum character height | 0.2mm |
| Marking Area | 50*50mm 70*70mm 110*110 mm (Optional) |
| Cooling Mode | Air Cooling |
| Overall Power Consumption | 220v 110v / 50Hz |
| Application | Stainless steel, aluminum, alloy, brass, silver, gold, titanium, iron, PC, ABS, PVC, PC+ABS, leather, stone, ceramic, plastic,wood, bottle.,etc. |
| Working conditions | Temperature: 1-40℃ Humidity: 5%-80% (non-condensing) |

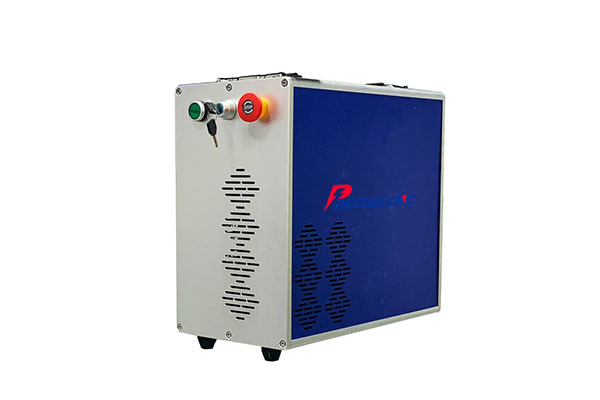

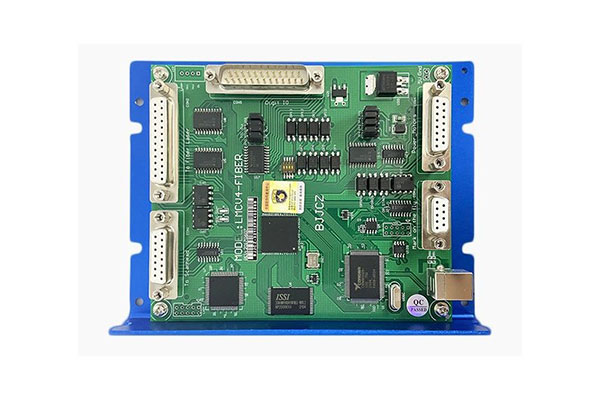

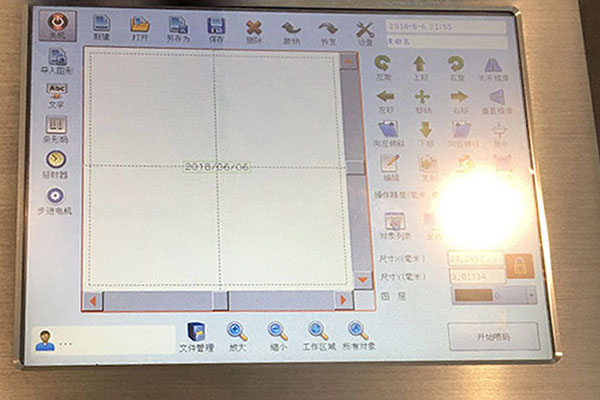

Main Configurations
Packaging Details
To make sure your machine arrives safe and sound, we go all out with 3-layer protection.
The outer layer? Sturdy, fumigation-free wooden cases—tough enough for any journey.
In the middle, thick foam cushions the machine, keeping it steady and shock-free.
And the innermost layer? A snug waterproof plastic wrap, shielding the machine from moisture. Safe, sealed, and secure.

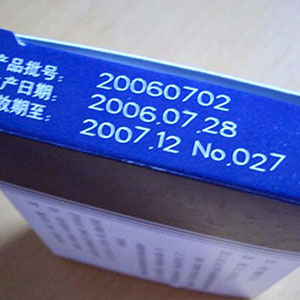

Samples
Application

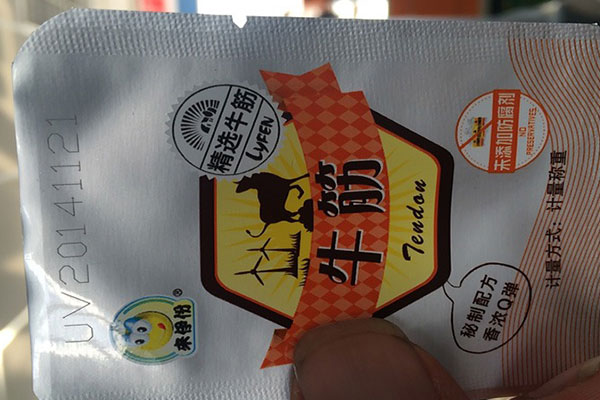

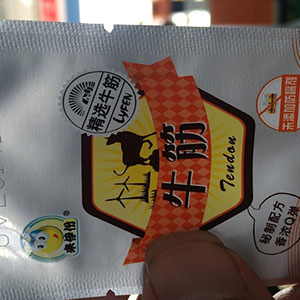

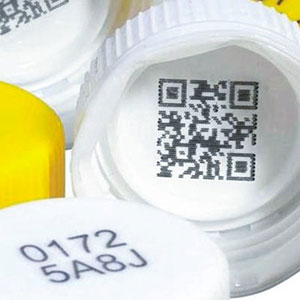

Food Packing Industry

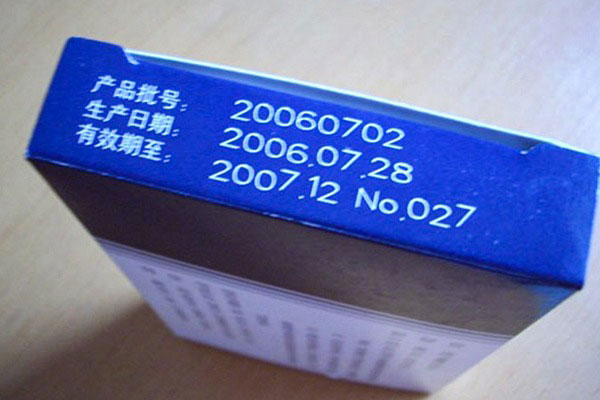

Medical Industry

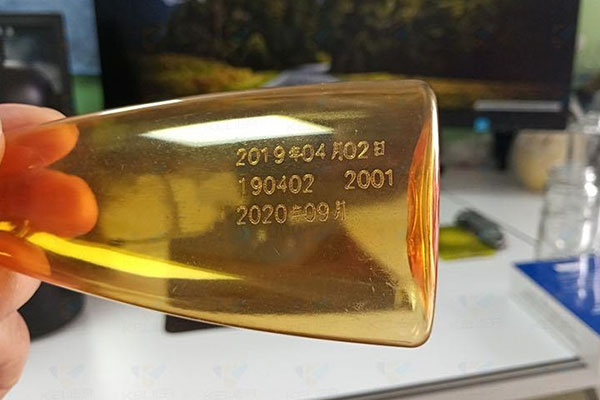

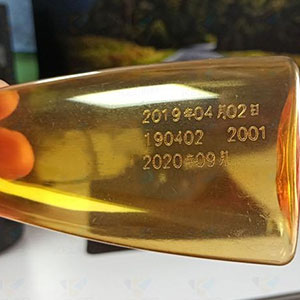

Cosmetics Industry

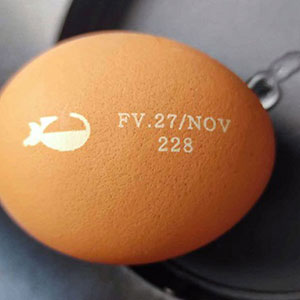

Poultry And Egg Industry

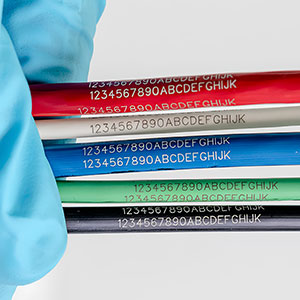

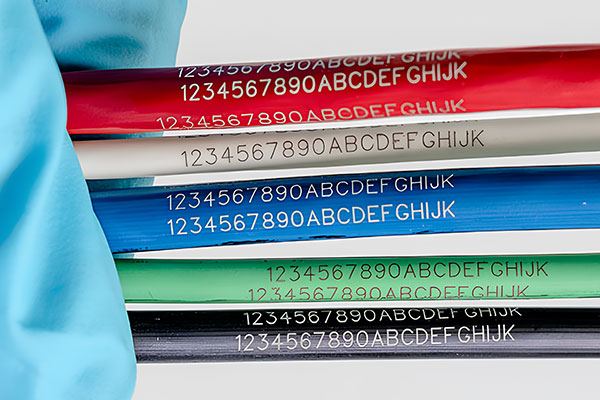

Wire And Cable Industry
Customer Testimonials
FAQ – Online Flying Laser Marking Machine
A:The online flying laser marker can mark a wide range of metals such as stainless steel, aluminum, copper, brass, gold, and silver. It can also mark some non-metals like ABS, PVC, PC, and PC+ABS, especially for food packing industry.
