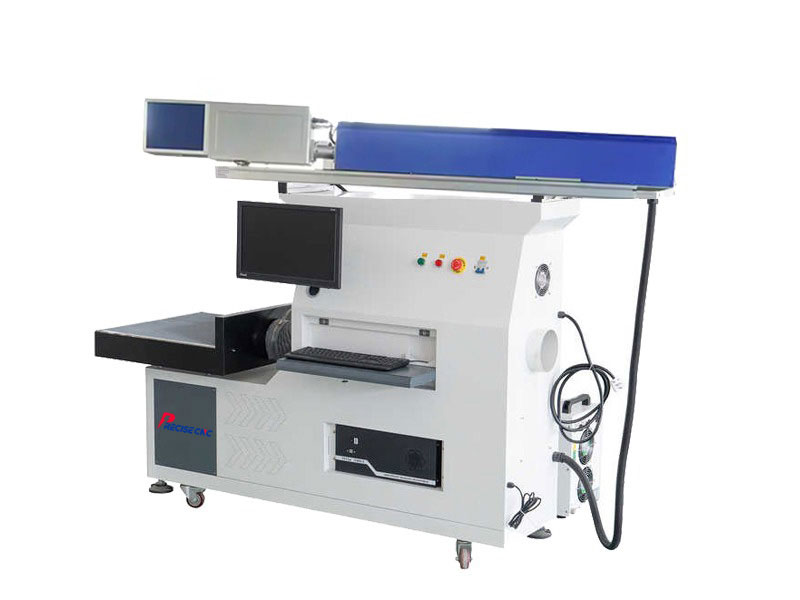

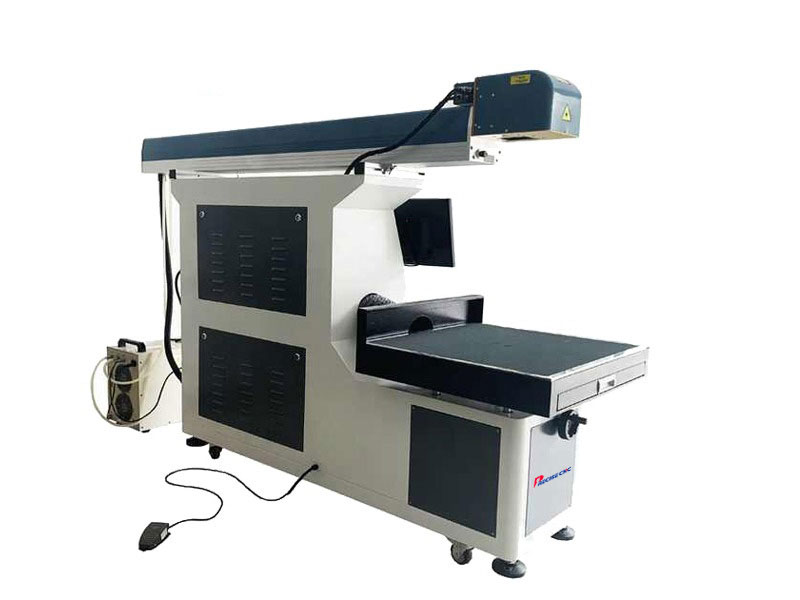

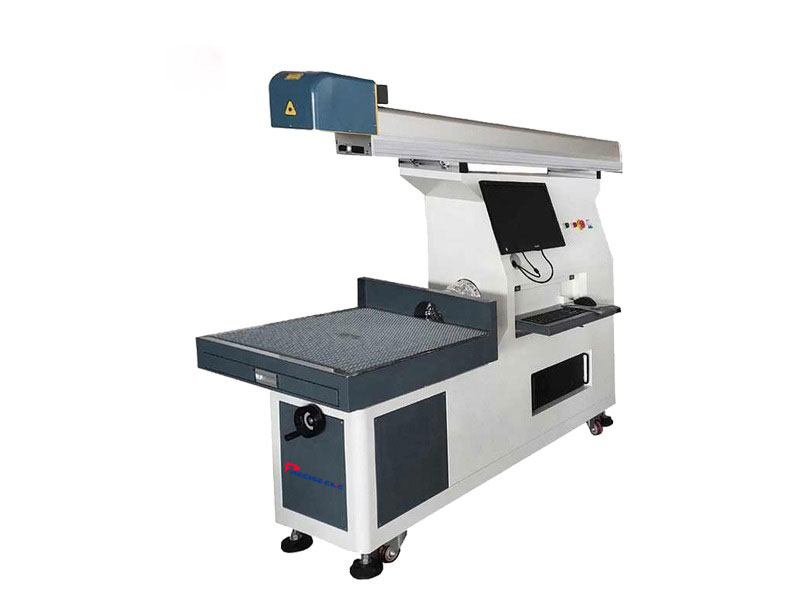

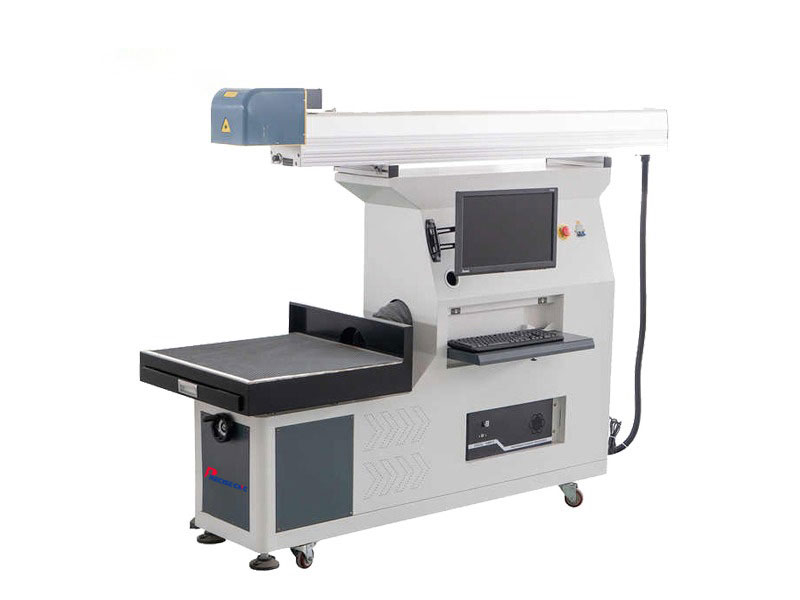

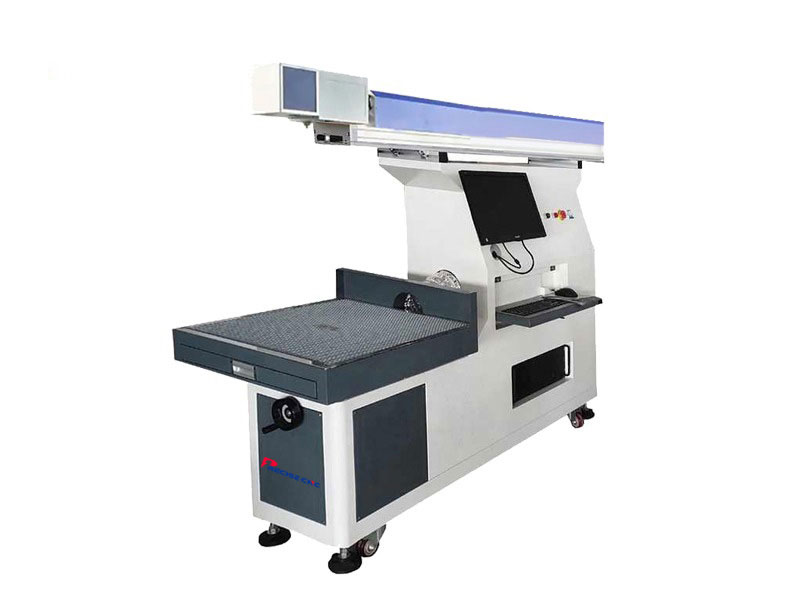

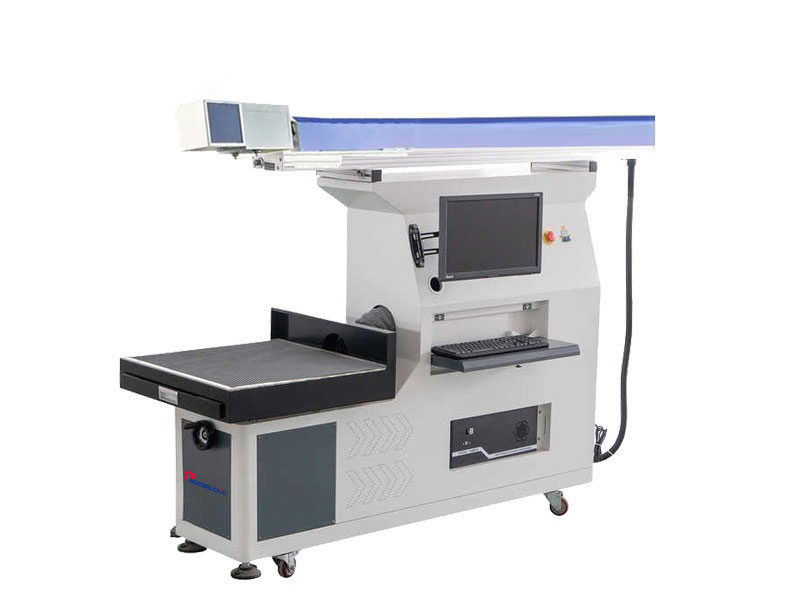

Product Name: Large Format CO2 Laser Marking Machine for Paper, Leather Cutting
Model: PR-CO2RF60/100/130
Laser Power: 60w 100w 130w
Application: Plastic, wood, leather, textiles, stone, ceramic and so on.
Inquire
General Introduction
The large-format CO2 laser marking machine is specialized equipment designed for processing oversized components with high precision, high speed, and wide material adaptability. It employs a CO2 laser tube as the core source, generating a 10.64μm wavelength laser in the mid-infrared spectrum. With advanced dynamic focusing technology, the beam passes through precision optics such as beam expanders and focusing lenses, achieving amplification and concentration to form a high-energy, monochromatic beam. This beam acts precisely on the workpiece surface, creating clear and permanent markings through vaporization or chemical reaction. Compared with conventional CO2 engraving machines, the processing speed is significantly enhanced, greatly increasing production efficiency.
The system is equipped with a large-format working area, enabling efficient processing of wooden boxes, cardboard, textiles, leather, and other oversized materials. In terms of operating cost, the machine requires only power supply without additional consumables, ensuring low long-term expenditure. Its user-friendly design allows even beginners to operate with ease, requiring no professional maintenance. By simply inputting graphics, text, or symbols into the control software and setting the marking position, the operator can initiate the marking process quickly and accurately.
Moreover, the non-contact processing approach eliminates mechanical contact with the workpiece, preventing potential surface damage and making the system particularly well-suited for applications demanding extremely high precision.
Main Feature
Extended Processing Range
Capable of handling non-metallic materials and selected metal surfaces up to a maximum size of 800 ×800 mm.
High Precision and Speed
Offers outstanding processing accuracy up to 0.01 mm, with adjustable processing depth to meet diverse application needs.
Environmentally Friendly and Cost-Efficient
Pollution-free, energy-saving design with no consumables required, meeting RoHS and related environmental standards. Supports 24-hour continuous operation without maintenance, ensuring minimal operating costs.
Ease of Operation
Equipped with powerful software functions that allow even beginners to easily edit and adjust marking content and positioning.
Durable and Reliable Marking
Produces clear, wear-resistant, and long-lasting marks that are difficult to erase, providing excellent anti-counterfeiting capability.
Versatile Processing Methods
Supports cutting, deep engraving, and surface marking, as well as processing of highly complex patterns and graphics.
Comprehensive Software Compatibility
Features an English operation interface with support for multiple file formats, including PLT, BMP, JPG, AI, DXF, and others, ensuring broad compatibility with different design software.
Stable Performance in Harsh Environments
Designed for reliable operation even in dusty or humid conditions, enabling uninterrupted long-term performance in demanding production environments.
Machine Parameters
| Machine Name | Large Format 3d dynamic CO2 Laser Marking Machine |
| Model No. | PR-CO2RF60/100/130 |
| Laser Power | 60w 100w 130w |
| Laser Wave Length | 10.64μm |

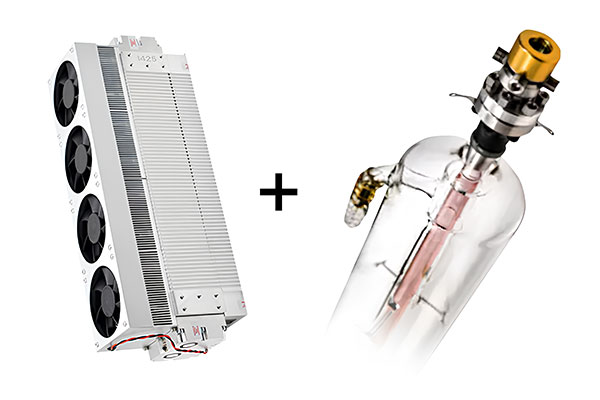

| Laser Source | CRD/ Dawei / Coherent/ Reci |
| System Software | EZCAD |
| Support File Format | PLT, BMP, DXF, JPG, TIF, AI,etc. |
| Power Adjustment Range(%) | 0-100% |

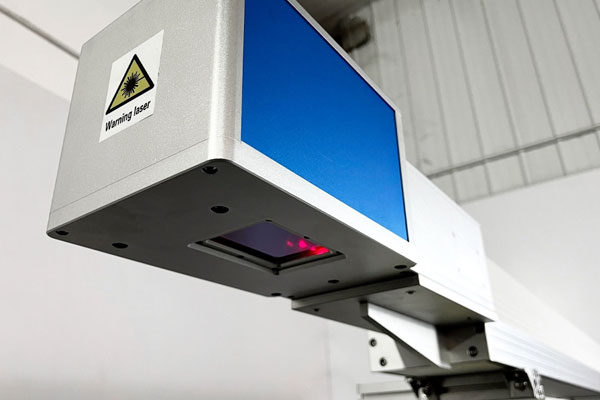

| Galvo Head | SINO / FEELTEK |
| Marking Speed | ≤7000mm/s |
| Repeated Accuracy | ±0.01mm |
| Min.Line width | 0.03mm |
| Min.Letter | 0.2mm |

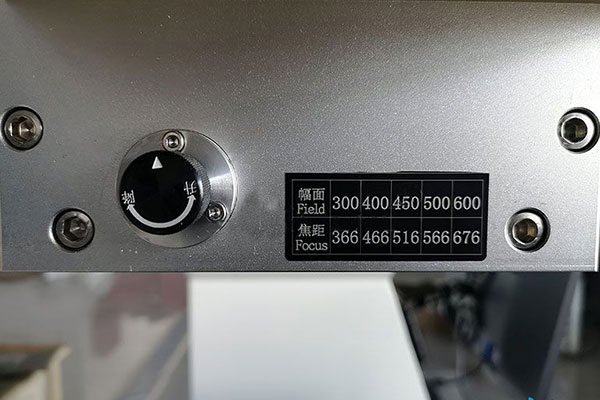

| Marking Area | 600mm*600mm 800*800mm |

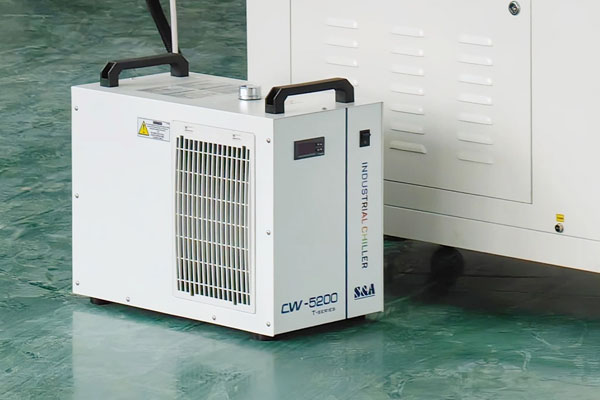

| Cooling Mode | Water Cooling |
| Overall Power Consumption | 110V 220V/ 50Hz 60Hz |
| Application | Plastic, wood, leather, textiles, stone, ceramic and so on. |

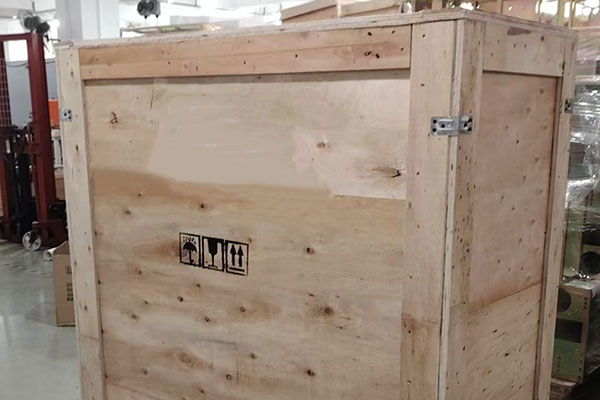

| Package Size | 1900*1600*1200mm Export Standard Plywood Case |
| Gross Weight | 260kgs |

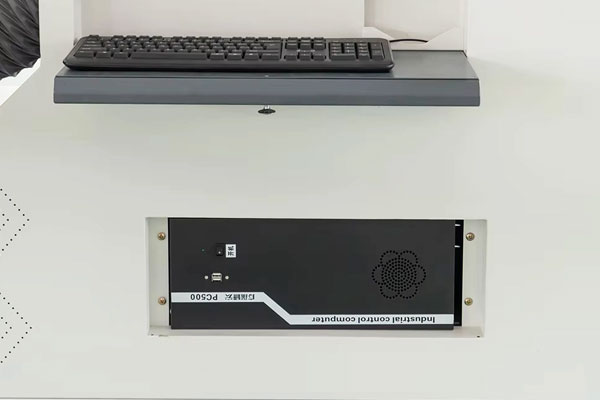

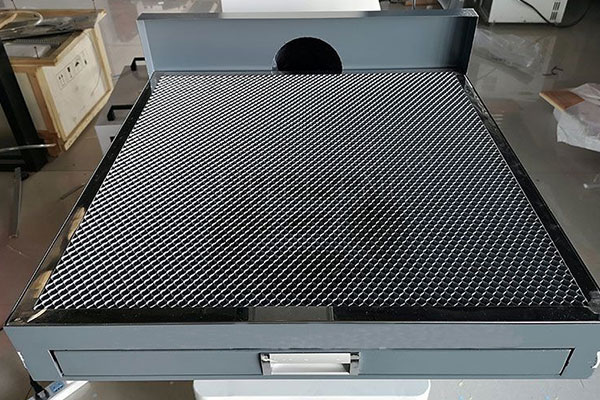

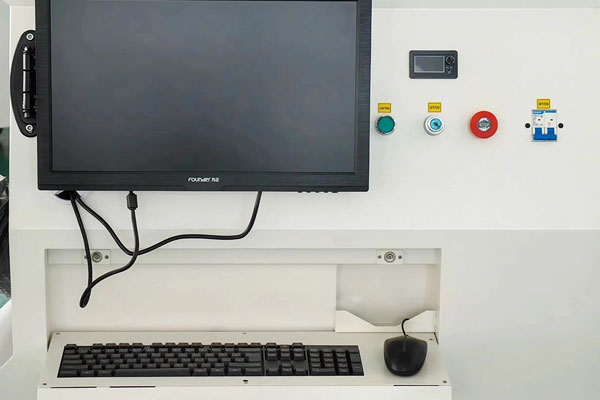

Main Configurations
Machine Optional Parts

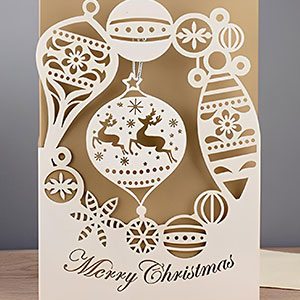

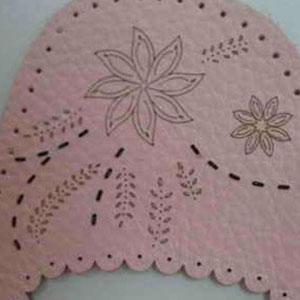

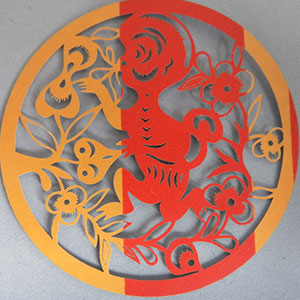

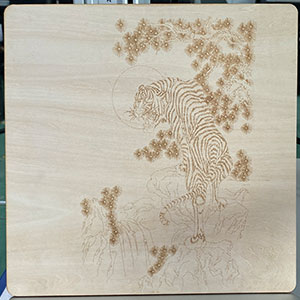

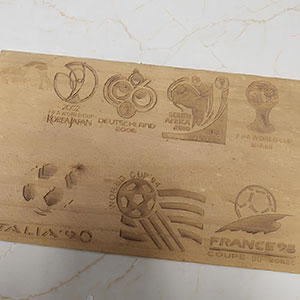

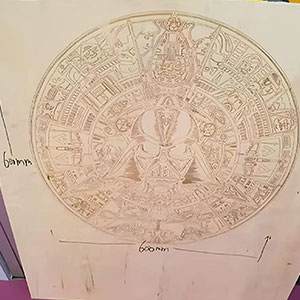

Samples
Application

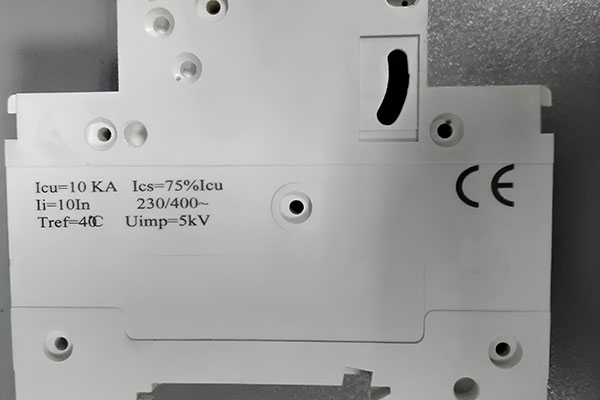

Electronics & Plastics Industry

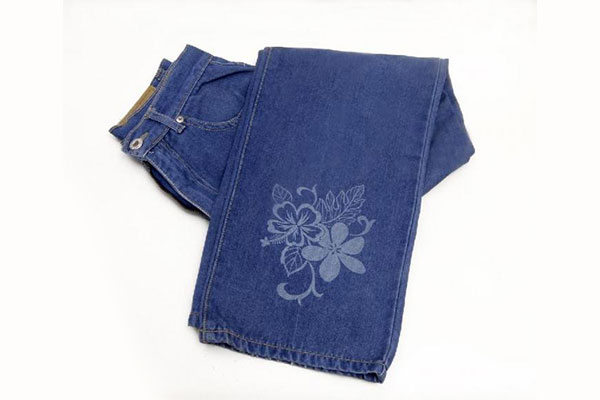

Textile & Apparel Industry

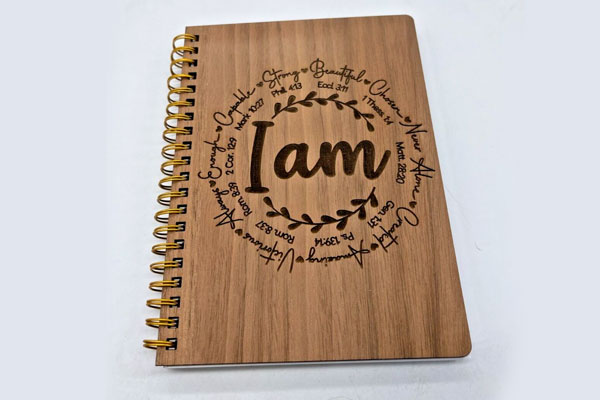

Stationery & Office Supplies Industry

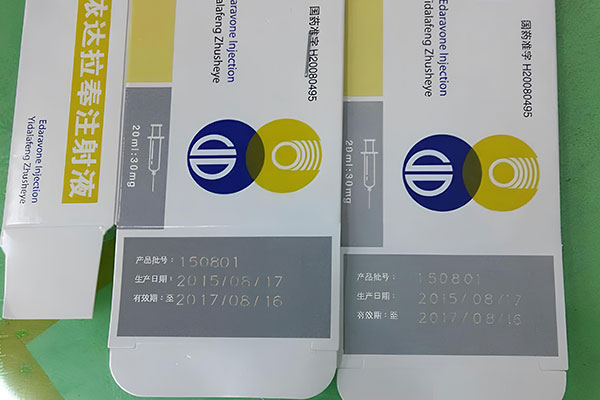

Packaging Industry

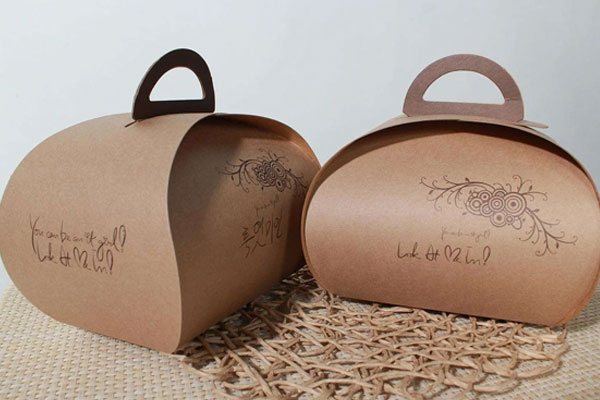

Advertising & Crafts Industry
Customer Testimonials
FAQ – Large format CO2 Laser Marking Machine
A: The desktop CO2 laser marker can mark a wide range of non-metals like wood,glass, leather, acrylic, ABS, PVC, PC, and PC+ABS and so on.
