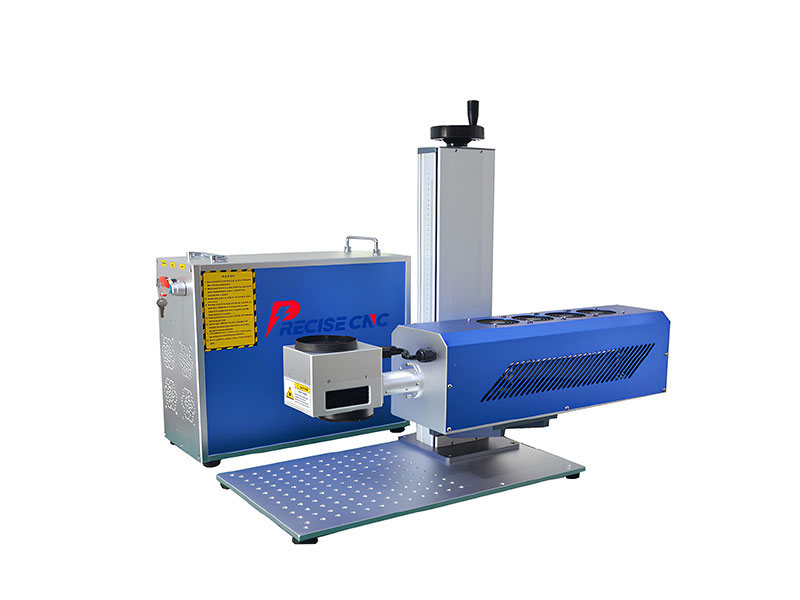

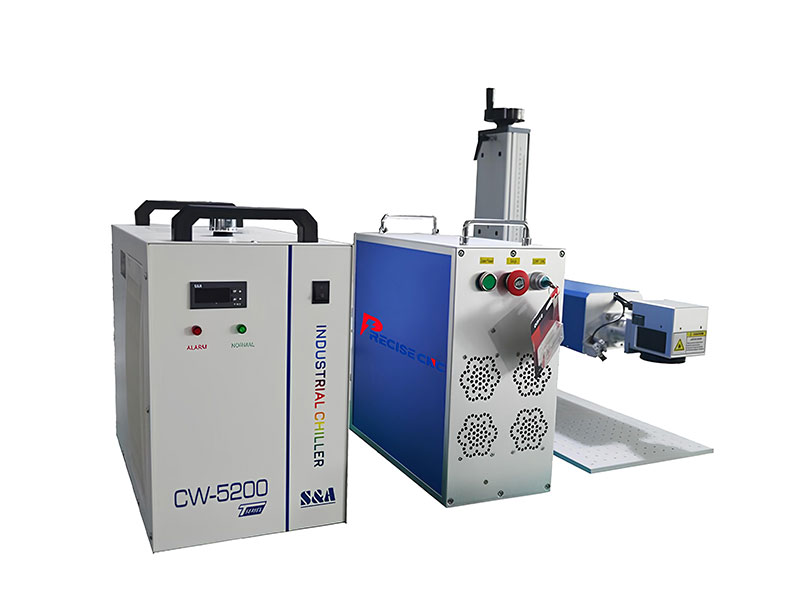

Product Name: 30w 40w 50w 60w 100w Mini Type CO2 Laser Marking Machine for Nonmetal Marking
Model: PR-CO2RFM30 PR-CO2RFM40 PR-CO2RFM50 PR-CO2RFM60 PR-CO2RFM100
PR-CO2RFM250 PR-CO2RFM350
Laser Power: 30W 40W 50W 60W 100W 250W 350W
Application: Plastic, wood, leather, textiles, stone, ceramic and so on.
Inquire
General Introduction
Tired of cluttered workbenches and slow, inconsistent marking results?
PRECISE CNC’s mini type CO₂ laser marking machine is designed to deliver clean, efficient, and precise results for nonmetal applications. It features high photoelectric conversion efficiency, fast marking speed, air-cooled design, compact structure, good output beam quality, high reliability, no consumables, maintenance-free operation, and long service life. The keyboard and mouse can be stored in the drawer, ensuring a tidy and organized workbench.
Equipped with Dawei / Coherent CO₂ laser sources, the system adopts the latest and most reliable international design standards. It offers small size, low power consumption, no high-voltage power supply, and no need for a large water cooling system. With a close-to-ideal beam, USB interface, output control, optical scanning system, high repetition frequency, fast marking speed, and no distortion, it guarantees stable and efficient performance.
Our desktop CO₂ laser marking machine can mark on a wide range of nonmetal materials, such as plastic (PC, ABS, PVC, PC+ABS), leather, wood, paper, fabric, and acrylic, making it a versatile solution for diverse industries.
Main Feature
High precision & fast speed
Optional controllable marking depth for flexible applications.
Wide application range
Capable of marking on most non-metal materials.
Eco-friendly design
No consumables, no pollution.
Durable marking
Clear marking lines with excellent wear resistance.
Flexible software support
Available in both Chinese and English, compatible with Windows systems. Supports multiple file formats such as PLT, PCW, DXF, BMP, as well as files saved by CorelDRAW, AutoCAD, Photoshop, etc. SHX and TTF fonts can also be directly imported.
Optional Functions for Desktop CO2 Laser Marker
Motorized Up/Down Function
Equipped with an adjustable-speed motor
Includes Up and Down buttons for manual movement of the marking head
Features an extra red dot pointer to assist in focusing
How it works: Adjust the marking head using the buttons; when the two red dots align, the machine is at the correct focus position
Auto Focus Control via Software
Integrated with a stepper motor and Auto Focus button
Focus is adjusted automatically based on input thickness
How it works: Enter the workpiece thickness into the EZCAD software, and the machine head automatically moves to the correct focal point
Auto Focus Control via Galvo Scanner with Sensor
Includes a Galvo scanner with built-in sensor, stepper motor, Up/Down buttons, and an Auto Focus button
How it works: Activate auto focus; the sensor detects the surface height of the workpiece, and the marking head automatically adjusts to the correct focal position
Machine Parameters
| Machine Name | Mini CO2 Laser Marking Machine |
| Model No. | PR-CO2RFM30 PR-CO2RFM40 PR-CO2RFM50 PR-CO2RFM60 PR-CO2RFM100PR-CO2RFM250 PR-CO2RFM350 |
| Laser Power | 30W 40W 50W 60W 100W 250W 350W |
| Laser Wave Length | 10.6μm |
| Laser Source | CRD/ Dawei / Coherent |
| System Software | EZCAD2 ( EZCAD2.5 EZCAD3 Optional ) |
| Support File Format | PLT, BMP, DXF, JPG, TIF, AI,etc. |
| Power Adjustment Range(%) | 0-100% |
| Galvo Head | SINO Brand |
| F-theta Lens | Wavelength Brand |
| Minimum Focus Facula Diameter | 20μm |
| Marking Speed | ≤7000mm/s |
| Repeated Accuracy | ±0.01mm |
| Min.Line width | 0.03mm |
| Min.Letter | 0.2mm |
| Marking Area | 110*110mm 140*140mm 210*210mm 300*300mm optional |
| Cooling Mode | Air Cooling/ Water Cooling optional |
| Overall Power Consumption | 220V/ 50Hz 2kva |
| Application | Plastic, wood, leather, textiles, stone, ceramic and so on. |
| Package Size | 92*52*86cm Export Standard Plywood Case |
| Gross Weight | 85kgs |
Main Configurations
Machine Optional Parts

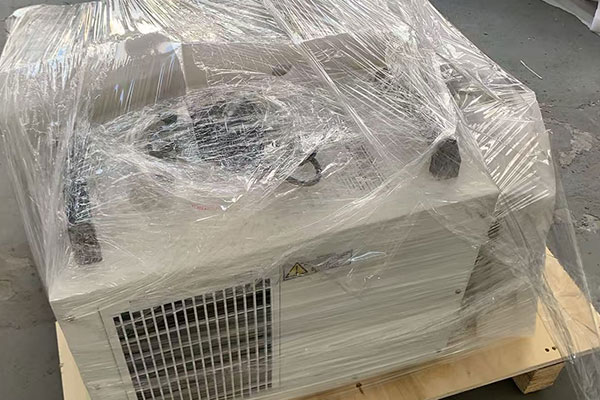

Packaging Details
To make sure your machine arrives safe and sound, we go all out with 3-layer protection.
The outer layer? Sturdy, fumigation-free wooden cases—tough enough for any journey.
In the middle, thick foam cushions the machine, keeping it steady and shock-free.
And the innermost layer? A snug waterproof plastic wrap, shielding the machine from moisture. Safe, sealed, and secure.

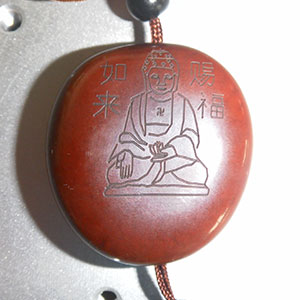

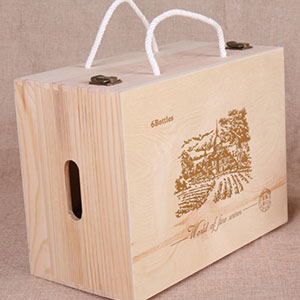

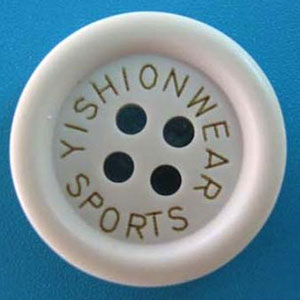

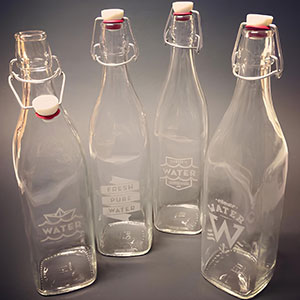

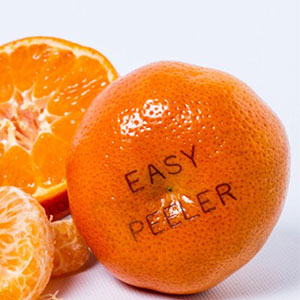

Samples
Application
Electronics & Plastics Industry
Textile & Apparel Industry
Stationery & Office Supplies Industry
Packaging Industry
Advertising & Crafts Industry
Customer Testimonials
FAQ – Mini CO2 Laser Marking Machine
A:The Mini CO2 laser marker can mark a wide range of non-metals like wood,glass, leather, acrylic, ABS, PVC, PC, and PC+ABS and so on.
